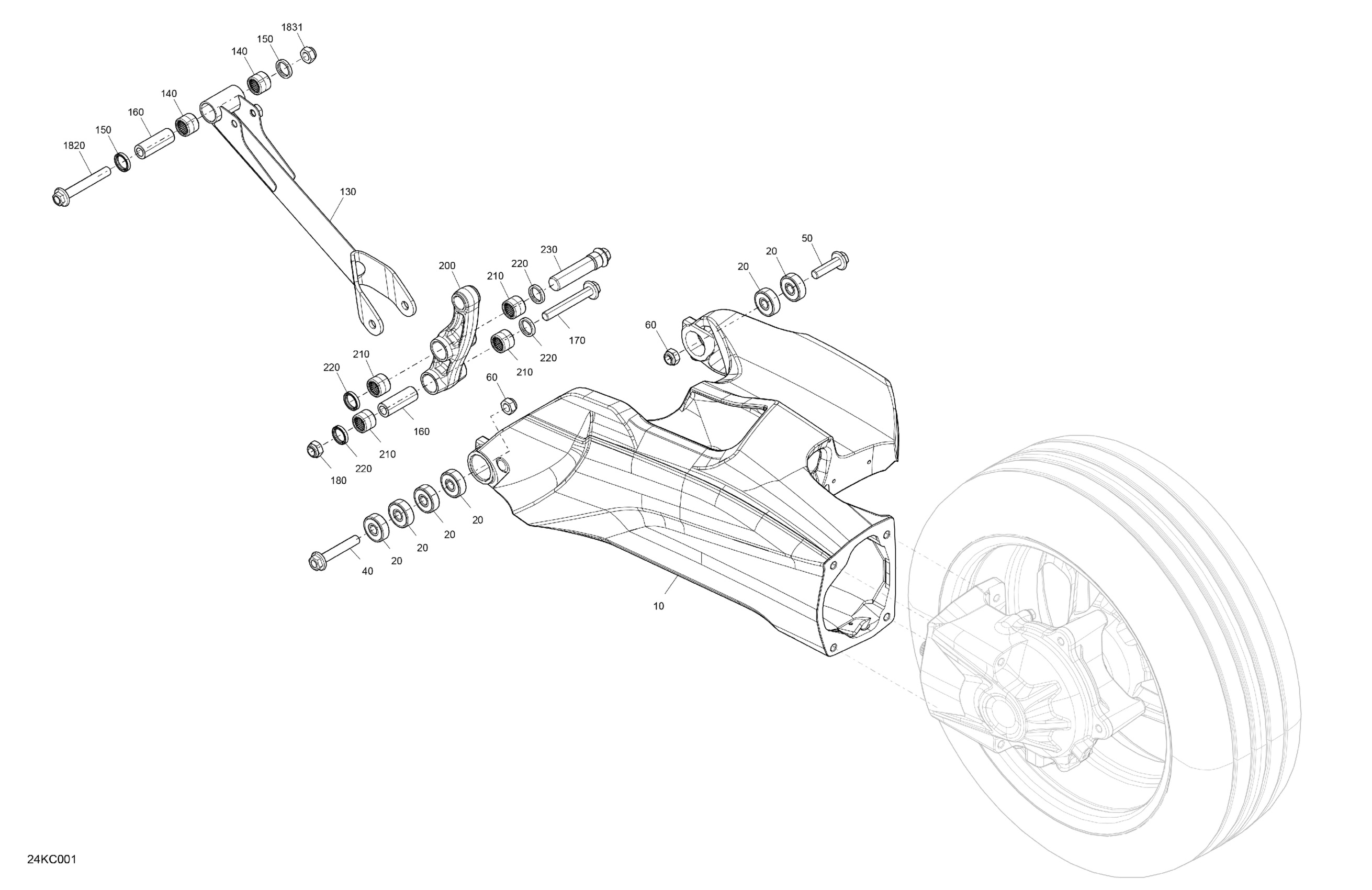

Can-Am RYKER 600 ACE, North America (F1PA), 2023 Suspension - Rear Diagram

Description

Price

Swing Arm

706004488

$657.00

Ball Bearing, ID 12, OD 37, L 12

706002649

$15.00

Hex. Flange Screw M12 X 70

250000858

Unavailable

Hex. Flange Screw M12 X 45, Scotch Grip

207524556

$8.00

Elastic Stop Nut M12

232521416

$1.40

130

Suspension Arm Lever, Primary

706002533

$159.00

140

Bearing, Needles

706002965

$13.00

150

Seal, Single Lip ID 19.4 OD 26

706000448

Unavailable

160

Axle, Suspenion Arm

706002534

$21.00

170

Hex. Flange Screw M12 X 85, Scotch Grip

207528556

$7.00

180

Elastic Stop Nut M12

232521416

$1.40

200

Suspension Arm Lever, Secondary

706202664

$159.00

210

Bearing, Needles

706002965

$13.00

220

Seal, Single Lip ID 19.4 OD 26

706000448

Unavailable

230

Pin Threaded M25 X 1.5 S.Grip, Lever

706002961

$37.00

1820

Hex. Flange Screw M12 X 85, Scotch Grip

207528556

$7.00

1831

Elastic Stop Nut M12

232521416

$1.40
