Partiron

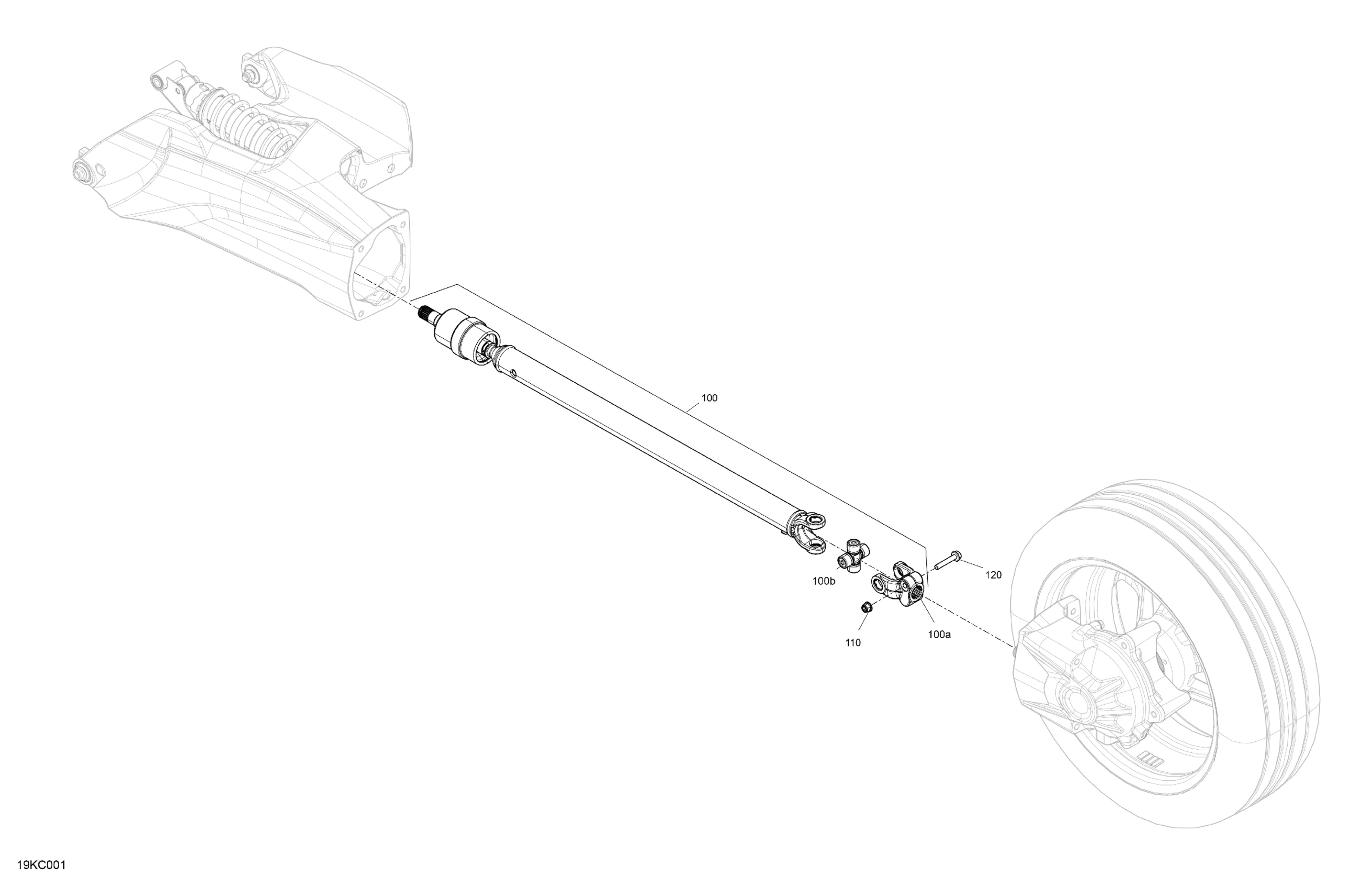

Can-Am RYKER 600 ACE, North America (F1PA), 2023 Drive - Rear - Common Parts Diagram

#

Description
Price

100

LH Homocinetic Joint | Includes 100 to 100k

705502456

$280.00

100a

Yoke

715900914

Unavailable

100b

Universal Joint Ass'y | Includes 100b to 100b1

219800424

$46.12

100b1

Circlip | Not shown

219800423

$1.37

100d

Dust cover | Not shown

219800426

$27.66

100f

Three Pin Joint | Not shown

219800433

$32.28

100g

Circlip | Not shown

219800427

$1.26

100j

Circlip Joint | Not shown

705401349

Unavailable

100k

O-Ring | Not shown

219800429

$6.45

110

Hex. Elastic Flange Nut M8

233281416

Unavailable

120

Hex. Flange Screw M6 X 45

250001028

Unavailable
