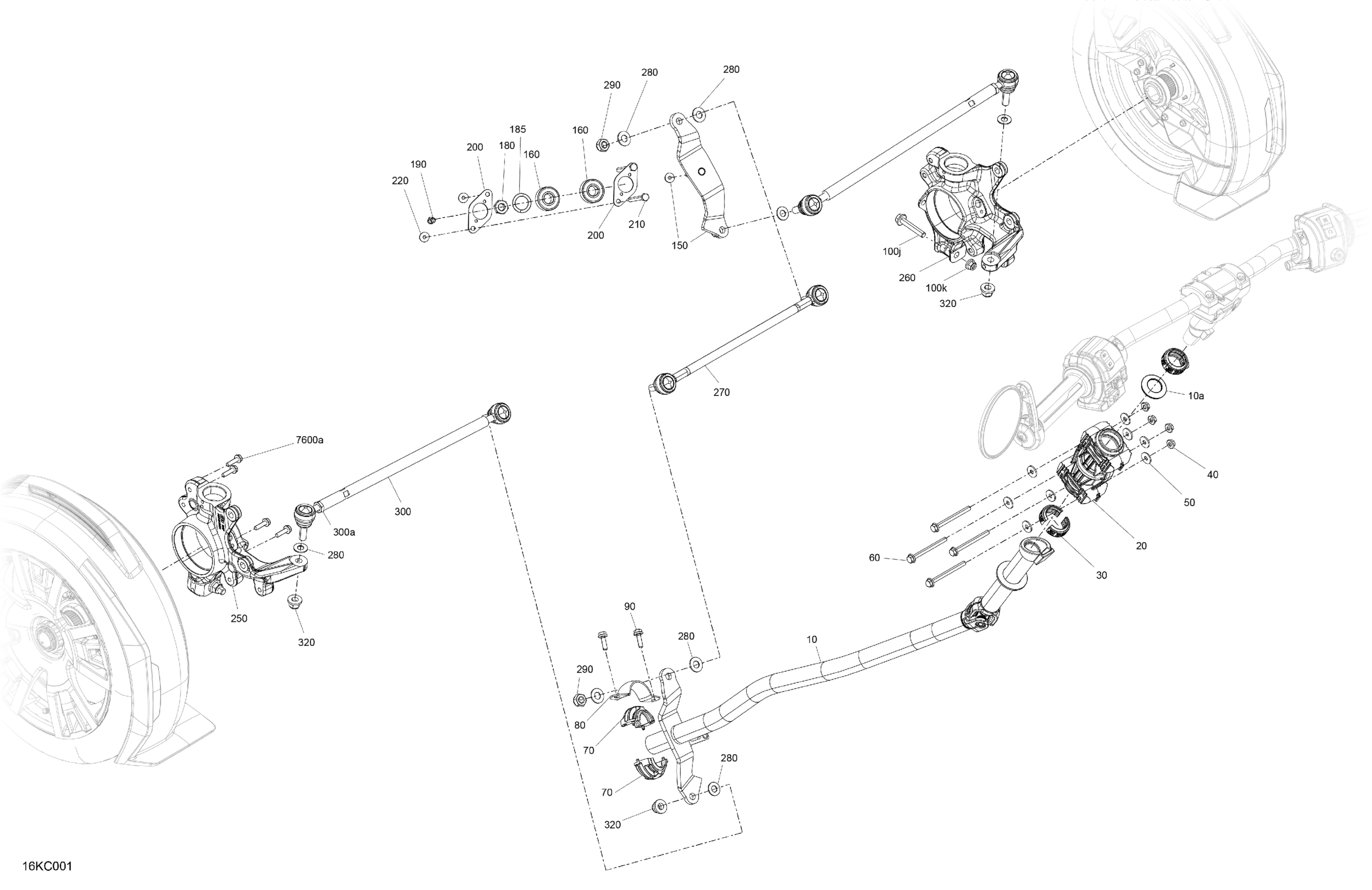

Can-Am RYKER 600 ACE, North America (F1PA), 2023 Mechanic - Steering Column Diagram

#

Description
Price

10

Steering Shaft | Included 10 to 10a

709401876

$200.00

10a

Washer

709402509

Unavailable

20

Steering Bushing

709403149

$10.00

30

Upper Vibration Damper

709402920

$5.00

40

Hex. Flange Nut M6

233161414

Unavailable

50

Flat washer M6

250200164

Unavailable

60

Hex. Flange Screw M6x70, Scotch Grip

207567044

Unavailable

70

Half Bushing

709402919

$4.00

80

RH Lower Column Attachment

709401969

$5.00

90

Hex. Flange Screw S.Grip M6 X 20

207562054

Unavailable

100j

Hex. Flange Screw M10 X 55

207605554

$8.00

100k

Flange Elastic Nut M10

233201466

Unavailable

150

Pitman Arm Kit | Included 150 to 150a

219800520

$34.00

160

Bearing

709402450

$7.00

180

Hex. Jam Nut M12

250100216

$2.00

185

Spring Washer

250001192

$1.00

190

Sensor Sleave

709401527

$3.00

200

Sensor Support

709402096

$4.00

210

Hex. Screw M6 X 65

207066544

$0.46

220

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

250

LH Knuckle

709401922

$180.00

260

RH Knuckle

709401923

$180.00

270

Tie Rod Ass'y

709401954

$116.00

280

Washer

506152582

Unavailable

290

Elastic Flange Nut M10

232501416

Unavailable

300

Tie Rod Ass'y | Included 300 to 300a

709401953

$116.00

300a

RH Threaded Hex. Jam Nut M10

732610010

Unavailable

320

Hex. Flange Elastic Nut M10

250100165

Unavailable

7600a

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

Unavailable
