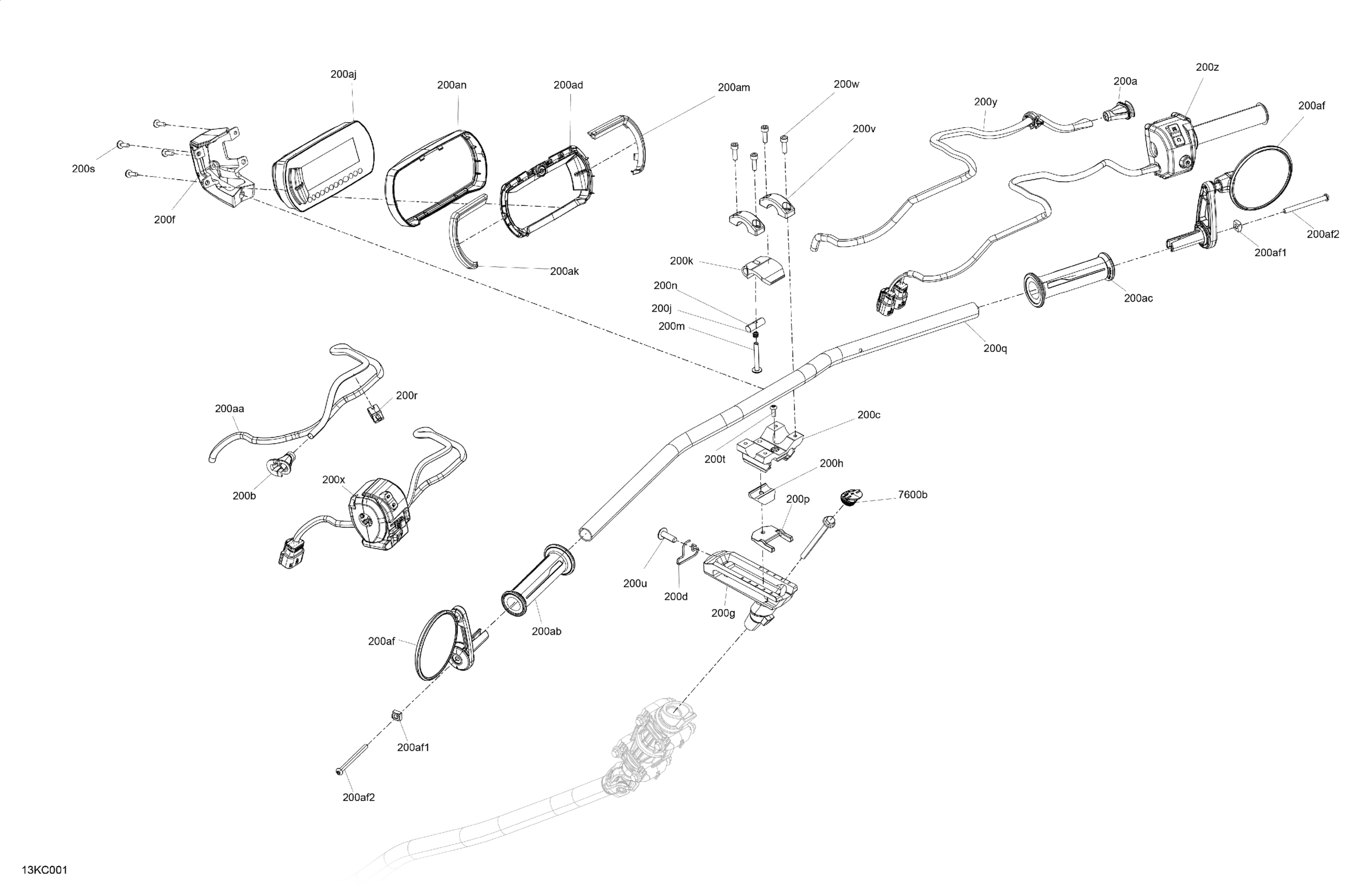

Can-Am RYKER 600 ACE, North America (F1PA), 2023 Mechanic - Handlebar Diagram

Description

Price

200a

Fairlead

709402502

$3.00

200b

Fairlead

709402513

$3.00

200c

Slide

709402452

$34.00

200d

Steel Cable Support

709402267

$15.00

200f

Deep Black, Cluster Support

709402243

$34.00

200g

Deep Black, Stem

709402683

$130.00

200h

Adjuster Block

506153164

$1.00

200j

Compression Spring

709402427

$5.00

200k

Deep Black, Release Lever

709402279

$24.00

200m

Torx-Truss Screw M6 X 45

709402444

$5.00

200n

Pin Lever

709402454

$9.00

200p

Rocker Arm

709402273

$14.00

200q

Carbon Black, Handle Bar

709402265

$41.00

200r

Fairlead

709402707

$3.00

200s

Torx Screw K50 X 16

250000720

Unavailable

200t

Screw-Torx Button Head M5 X 14

235551454

Unavailable

200u

Torx Truss M8 X 25

250000874

Unavailable

200v

Deep Black, Handle Bar Clamp

709402255

$5.00

200w

Socket Head Screw M6 X 20 S.Grip

205562054

Unavailable

200x

LH Multifunction Switch

710007370

$148.00

200y

Braided Sleeve

415130141

Unavailable

200z

RH Multifunction Switch & Twist Throttle

710007369

$265.00

200aa

Braided Sleeve

415130141

Unavailable

200ab

LH Handle Grip

709401984

$20.00

200ac

RH Handle Grip

709401985

$20.00

200ad

Gauge Trim

709402742

Unavailable

200af

Rear-View Mirror Ass'y

705018904

$19.00

200af1

Square Nut M6

232862412

Unavailable

200af2

Torx Screw Button Head M6 X 70

235567084

$7.28

200aj

Multifunction Gauge Compact Mono

710008108

Unavailable

200ak

Deep Black, LH Trim Gauge

709402210

Unavailable

200am

Deep Black, RH Trim Gauge

709402211

Unavailable

200an

Rear Cluster Cap

709402092

Unavailable

7600b

Cap

709402276

$1.00
