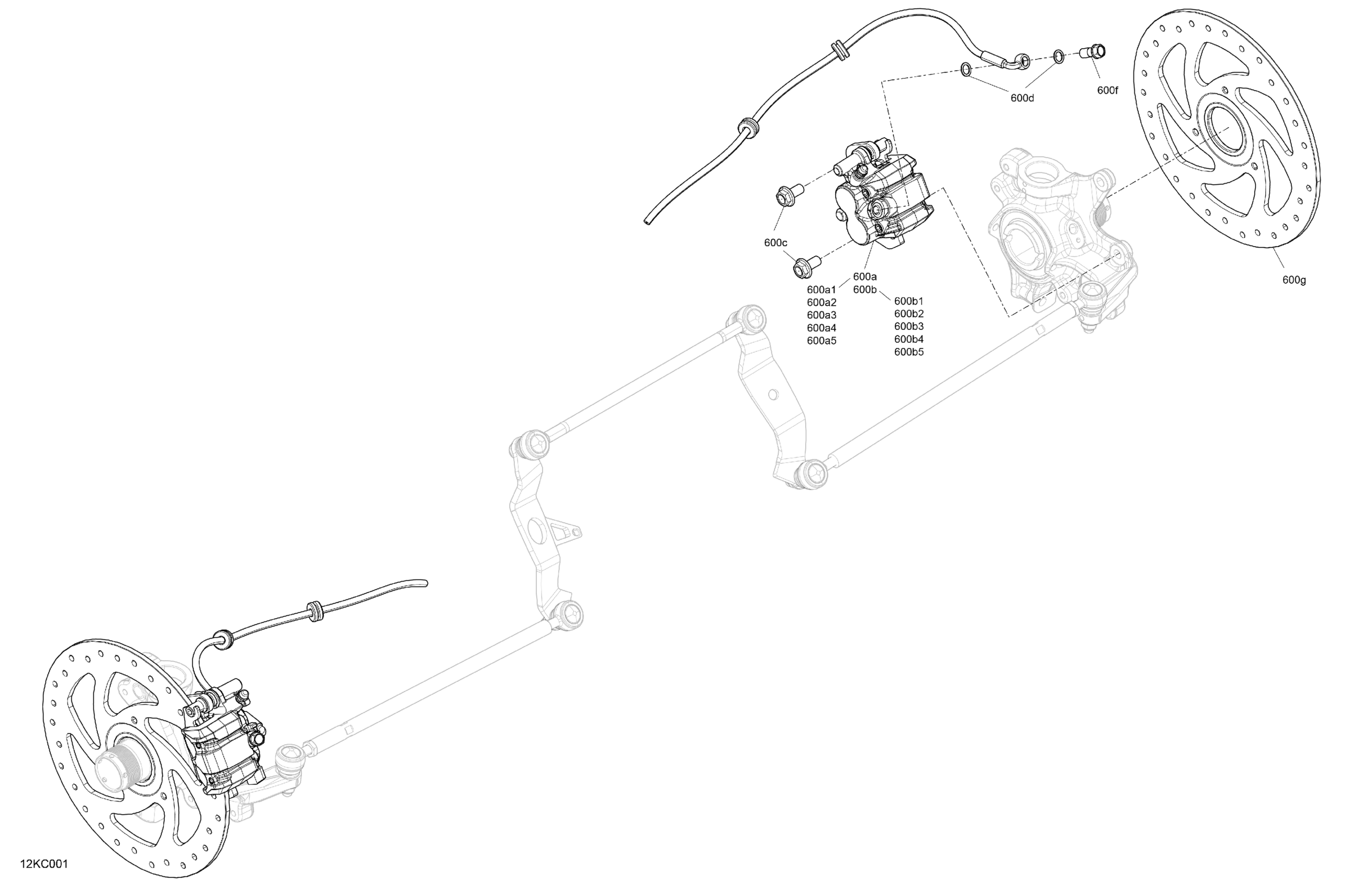

Can-Am RYKER 600 ACE, North America (F1PA), 2023 Mechanic - Front Brakes Diagram

Description

Price

600a

LH Front Brake Caliper | Included 600a to 600a5

705601547

$233.00

600a1

Sliding Pin Kit

715500337

Unavailable

600a2

LH Front Brake Pad Kit

219800445

$59.00

600a3

Bleeding Screw

705600080

Unavailable

600a4

Spring-Boot and Bolt Kit

219800447

$24.00

600a5

LH Front Brake Caliper Support

219800489

$34.00

600b

RH Front Brake Caliper | Included 600b to 600b5

705601548

$233.00

600b1

Sliding Pin Kit

715500337

Unavailable

600b2

RH Front Brake Pad Kit

219800446

$59.00

600b3

Bleeding Screw

705600080

Unavailable

600b4

Spring-Boot and Bolt Kit

219800447

$24.00

600b5

RH Front Brake Caliper Support

219800490

$34.00

600c

Hex. Flange Screw M10 X 20

250001134

Unavailable

600d

Copper Washer

705601628

Unavailable

600f

Banjo Bolt (M10 x 1.25 thread)

705600609

Unavailable

600g

Front Brake Disk

705601539

$87.00
