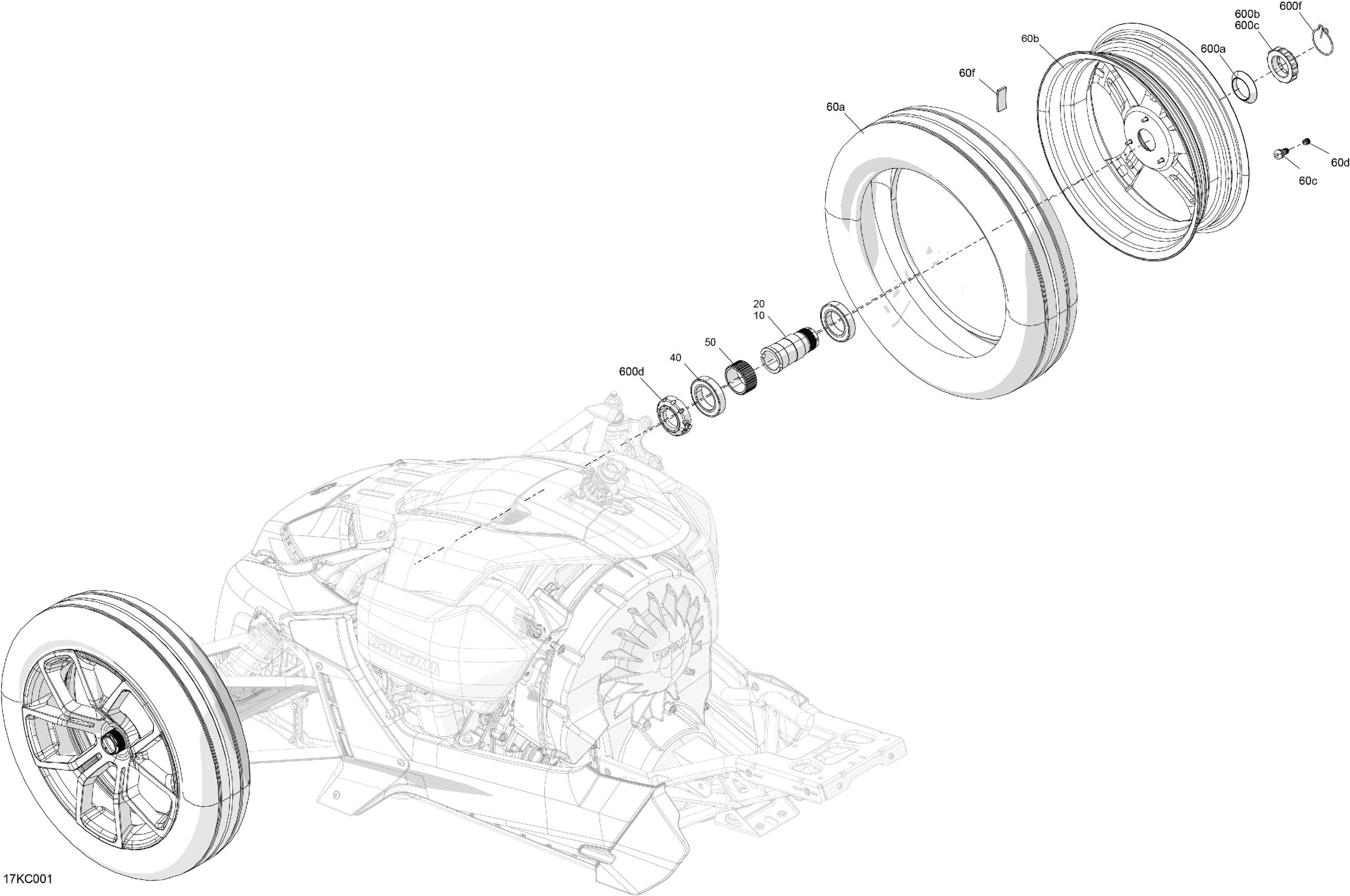

Can-Am RYKER 600 ACE, North America (F1PA), 2023 Drive - Front Wheels Diagram

Description

Price

600a

Conical Support Ring

705401983

$18.00

600b

RH Specialized Nut M45 LH Thread

705403012

$55.00

600c

Wheel Nut M45

705402730

$32.00

600d

Hub Cap

705402677

$6.00

600f

External Retaining Ring

293370168

$2.00

LH Front Wheel Axle

706204864

$78.00

RH Front Wheel Axle

706204735

$77.00

Ball Bearing

293350142

Unavailable

Tone Ring (trigger wheel) | Includes 60 to 60e

705601557

$39.00

60a

Front Tire 145/60R16

705403055

$106.00

60b

Platinum Silver, 16 Inch Rim

705403318

$390.00

60c

Rim Valve With Cap

705400193

Unavailable

60d

Valve Cap

293000110

Unavailable

60f

Balancing Weight

705503182

$5.00
