Description

Price

10

Driver Seat Ass'y

708002946

$620.00

20<20a2

Passenger Seat Ass'y | Includes 20 TO 20a2

708002951

$310.00

20a2

Rubber Stopper

708000759

$3.61

50

Actuator Cable

517307507

$11.00

51

Tie-Rap 180 mm

414115200

$0.09

60

Latch

705007379

$29.00

65

Trim Latch

708003260

$5.00

70

Torx Truss Screw M6 X 25

250000807

$1.74

75

Panel Nut M6 X 1.0

250100198

$1.73

350

Shock Absorber

708003221

$84.00

360

Ball Head Stud

250300039

$6.15

365

Hex. Flange Elastic Nut M8

233281414

$1.14

380

Connector Cap | Includes 380 to 380d

708303050

$14.00

6110

Spacer

708000664

$6.00

6120

Torx Screw M6 X 45

250000748

$1.56

6130

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

6140

Plastite Screw Type K-40, M4 X 25

250000101

$2.87

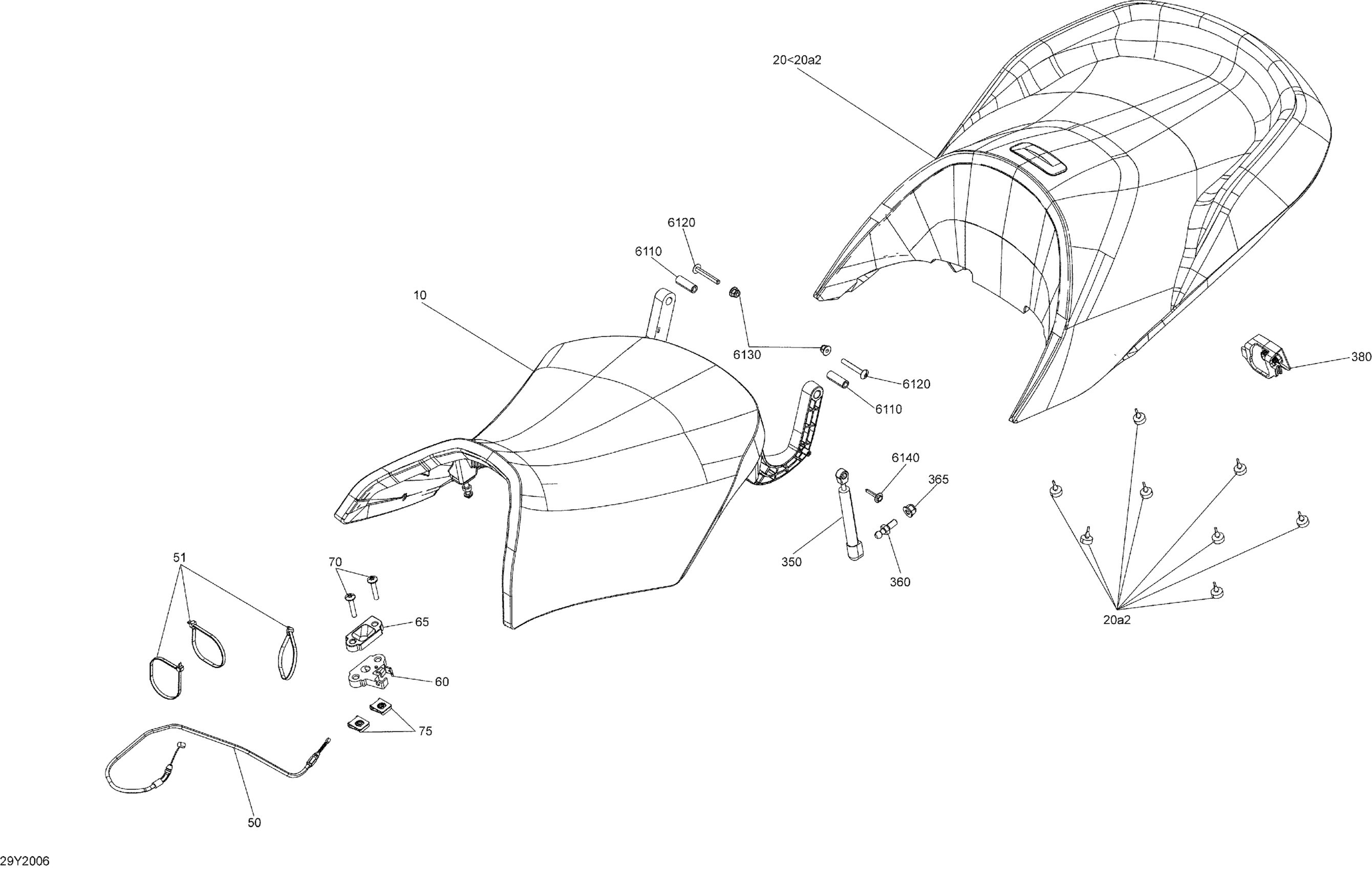

Can-Am RT STD SE6, 2020 Seat Diagram
