Description

Price

10

Cargo Box Inner LH

708301016

$93.00

11

Insert

291003793

$2.44

12

Hex. Flange Screw M6.81 X 25, Plastite

243162560

$1.46

13

Torx Screw K50 X 16

250000720

$1.39

14

Hex. Flange Screw M6 X 16

210261650

$1.22

15

Stainless Steel Flat Washer

234062670

$1.74

17

Stainless Steel Flat Washer

234062670

$1.74

20

Cargo Box Inner RH

708301017

$93.00

21

Insert

291003793

$2.44

22

Hex. Flange Screw M6.81 X 25, Plastite

243162560

$1.46

23

Torx Screw K50 X 16

250000720

$1.39

24

Hex. Flange Screw M6 X 16

210261650

$1.22

25

Stainless Steel Flat Washer

234062670

$1.74

27

Stainless Steel Flat Washer

234062670

$1.74

40

Ball Head Stud

250300016

$11.69

50

Hex. Flange Elastic Nut M8

233281414

$1.14

170

RH Latch Lid Ass'y | Includes 170 to 170a

708303112

$155.00

170a

Cable

708003379

$49.00

171

Tie-Rap Clip

710002896

$4.60

172

Clip Tie-Rap

710002899

$8.45

175

LH Control

708301222

$44.00

176

Panel Nut M6 X 1.0

250100208

$1.07

177

Torx Screw M6 X 20

250000722

$1.34

180

LH Latch Lid Ass'y | Includes 180 to 180a

708303113

$155.00

180a

Cable

708003379

$49.00

181

Tie-Rap Clip

710002896

$4.60

182

Clip Tie-Rap

710002899

$8.45

185

RH Control

708301697

$44.00

186

Panel Nut M6 X 1.0

250100208

$1.07

187

Torx Screw M6 X 20

250000722

$1.34

190

Stainless Steel Flat Washer

234062670

$1.74

200

Torx Head Screw M6 X 16

250000717

$1.74

240

Hinge

708300006

$26.00

250

Torx Truss Screw M6 X 12

250000767

$1.66

260

Back Plate Support

708300129

$11.00

300

Shock Absorber

708303322

$80.00

360a

Seal, 1PC = 3M

293830188

$37.66

370a

Seal, 1PC = 3M

293830188

$37.66

410

Chalk, LH Rear Box Cover | Models Chalk

708304089

$370.00

410

Petrol, LH Rear Box Cover

708303150

$380.00

415

LH Rear Box Trim

708303002

$130.00

417

Edge Clip

517302785

$0.70

425

Inner Box Cover LH

708303065

$83.00

426

Striker Cover

708303255

$7.00

427

Hex. Forming Screw M5 X 16

210251650

$0.92

428

Red, Reflector

705015551

$8.26

428

Amber Reflector

705015552

$9.00

429

Edge Clip

517302785

$0.70

430

Torx Screw K50 X 16

250000720

$1.39

431

Panel Nut M6 X 1.0

250100208

$1.07

432

Torx Head Screw M6 X 16

250000717

$1.74

440

Chalk, RH Rear Box Cover | Models Chalk

708304088

$370.00

440

Petrol, RH Rear Box Cover

708303158

$380.00

445

RH Rear Trim Box

708303003

$130.00

447

Edge Clip

517302785

$0.70

455

Inner Box Cover RH

708303066

$83.00

456

Striker Cover

708303255

$7.00

457

Hex. Forming Screw M5 X 16

210251650

$0.92

458

Red, Reflector

705015551

$8.26

458

Amber Reflector

705015552

$9.00

459

Edge Clip

517302785

$0.70

460

Torx Screw K50 X 16

250000720

$1.39

461

Panel Nut M6 X 1.0

250100208

$1.07

462

Torx Head Screw M6 X 16

250000717

$1.74

470

Ball Joint

250300064

$13.00

580

LH Rear Holding Handle

708003456

$106.00

590

RH Rear Holding Handle

708003457

$106.00

591

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

592

Flat Washer 8 mm

234082410

$1.11

600

Fairing Over L

708303973

$95.00

601

Plastic Rivet

293150248

$2.00

602

Torx Screw M6 X 25, Scotch Grip

250000328

$1.46

603

LH Lever Trim

708303323

$5.00

604

Torx Screw K50 X 25

250001110

$1.29

605

LH Front Armrest Trim

708303393

$6.00

606

Rear Armrest Trim LH

708303395

$6.00

607

Torx-Truss Pt K40 X 16

250000759

$1.74

608

Screw K40 X 10

241140060

$1.25

609

Hex. Flange Nut M6

233161414

$1.74

610

Fairing Over R

708303974

$95.00

611

Plastic Rivet

293150248

$2.00

612

Torx Screw M6 X 25, Scotch Grip

250000328

$1.46

613

RH Lever Trim

708303324

$6.00

614

Torx Screw K50 X 25

250001110

$1.29

615

RH Front Armrest Trim

708303394

$6.00

616

Rear Armrest Trim RH

708303396

$6.00

617

Torx-Truss Pt K40 X 16

250000759

$1.74

618

Screw K40 X 10

241140060

$1.25

619

Hex. Flange Nut M6

233161414

$1.74

850

Cargo Structure

708302924

$110.00

861

Pop Rivet 3/16"

293150103

$0.54

1000

Retainer Cable

708303404

$39.00

1010

Torx Head Screw M6 X 16

250000717

$1.74

1020

Flat Washer, Stainless/Neoprene

211200055

$0.68

1030

Hex. Nut M6

232061414

$0.44

1050

Heat Shield

705004173

$48.00

1150

LH Access Cover

708303754

$17.00

1151

Torx Screw K50 X 16

250000720

$1.39

1160

RH Access Cover

708303755

$17.00

1161

Torx Screw K50 X 16

250000720

$1.39

1180

Hex. Flange Elastic Nut M6

233261494

$1.26

1200

LH Light Trim Japan

708303343

$88.00

1205

RH Light Trim Japan

708303344

$88.00

1215

Plastite Screw M4 X 10

250000805

$1.74

8020

Panel Nut M6 X 1.0

250100208

$1.07

8030

Torx Truss Screw M6 X 20

250000350

$4.39

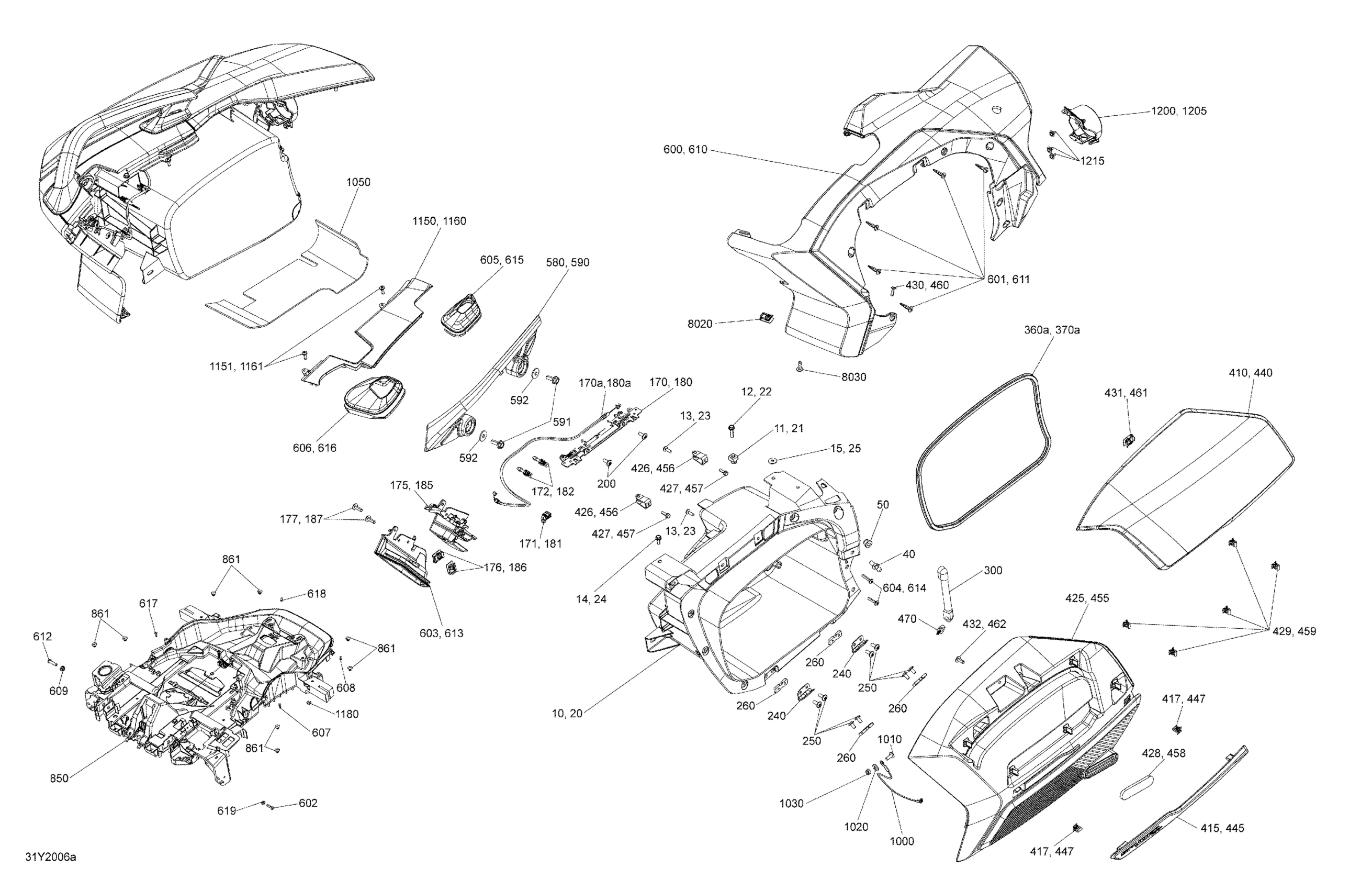

Can-Am RT STD SE6, 2020 Body And Accessories Side Cargo Diagram
