Description

Price

10

Carbon Black, LH Front Footrest | Includes 10 to 10b

705013902

$150.00

20

Carbon Black, RH Front Footrest | Includes 20 to 20b

705013903

$150.00

30

RH Front Footrest Support

705013994

$135.00

40

LH Front Footrest Support

705014000

$135.00

50

RH Front Footrest Pad | Includes 50 to 50a

705014002

$220.00

60

LH Front Footrest Pad | Includes 60 to 60a

705014004

$220.00

70

Footrest_Support Rear R B-322-Tx Painted | Textured Finish

548874246

$205.00

80

Carbon Black, Rear Footrest Support LH | Textured Finish

705014917

$210.00

150

Tube Support | Includes 150 to 150a

705008950

$23.00

200

RH Rear Footrest Pad | Includes 200 to 200a

705014609

$49.00

205

LH Rear Footrest Pad | Includes 205 to 205a

705014610

$49.00

210

Carbon Black, Rear Footrests | Model-RT S

705011155

$135.00

220

Bushing

705002153

$11.06

225

Allen Plastite Screw #12

250000099

$2.31

230

BLOCK_SLIDING PAINTED B-322-TX | Includes 230 to 230b

548875375

$59.00

240

Hex. Screw M8 X 55

207085556

$1.65

250

Conical Spring Washer M8

234281474

$1.25

260

Rubber Stopper

708000759

$3.61

270

Hex. Flange Screw M8 X 110

230681034

$4.28

280

Washer

503183800

$3.20

290

Hex. Flange Elastic Nut M8

233281434

$1.74

300

Rubber Bushing

705003018

$10.00

310

Hex. Cap Screw Full Thread M10 X 20

250000719

$6.00

320

Washer

506152582

$4.42

330

Hex. Flange Screw M8 X 55

207585544

$1.42

340

Socket Screw Nylon Patch M10 X 45

250001120

$1.34

345

Washer

503191926

$1.57

350

Film, Protective

705014173

$7.00

370

Hex Screw Washer Head M8 X 20

207582054

$2.61

410

Spacer

705008219

$13.00

420

Hex. Flange Screw M6 X 60

250000778

$3.61

430

Hex. Flange Elastic Nut M6

233261466

$1.66

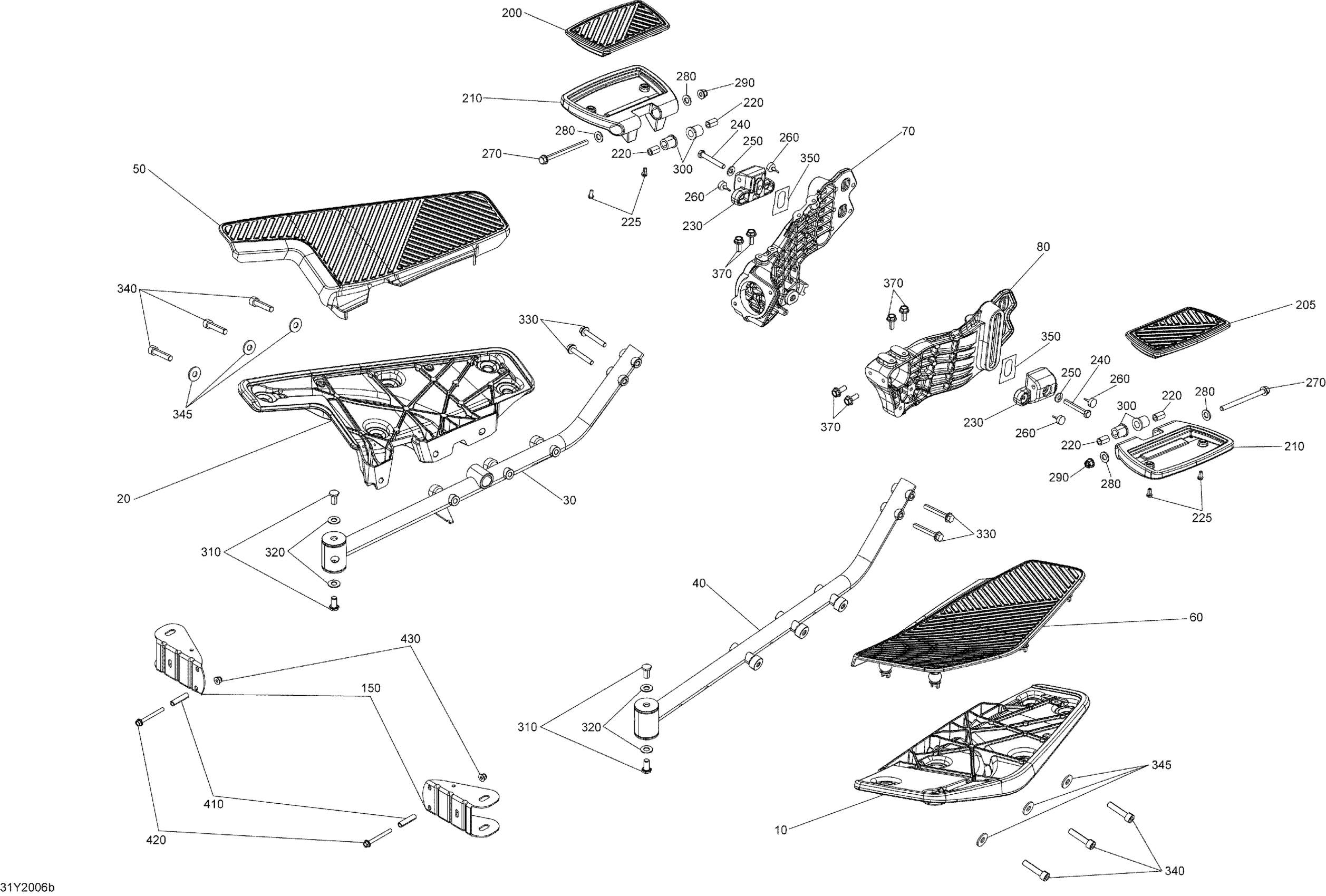

Can-Am RT STD SE6, 2020 Body And Accessories Footrests Diagram
