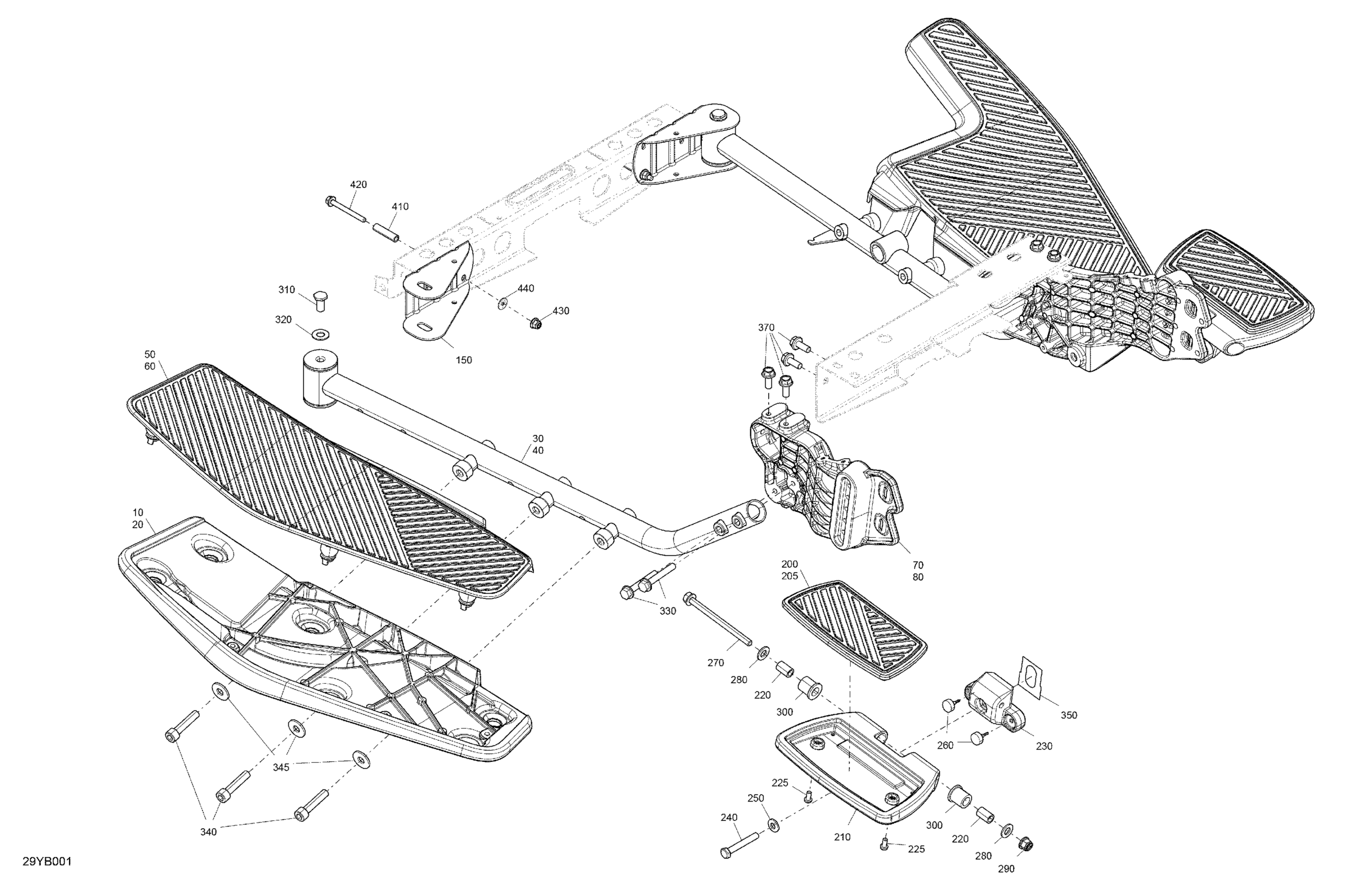

Can-Am RT - Hyper Silver, 2022 Frame - Footrest Diagram

#

Description
Price

10

Carbon Black, LH Front Footrest | Includes 10 to 10b

705013902

$150.00

20

Carbon Black, RH Front Footrest | Includes 20 to 20b

705013903

$150.00

30

RH Front Footrest Support | Includes 30 to 30h

705016620

$150.00

40

LH Front Footrest Support | Includes 40 to 40f

705016619

$150.00

50

RH Front Footrest Pad | Includes 50 to 50a

705014002

$220.00

60

LH Front Footrest Pad | Includes 60 to 60a

705014004

$220.00

70

RH Rear Footrest Support | Includes 70 to 70b

705016832

$220.00

80

Carbon Black, LH Rear Footrest Support | Includes 80 to 80b

705016177

$205.00

150

Tube Support | Includes 150 to 150a

705008950

$23.00

200

RH Rear Footrest Pad | Includes 200 to 200a

705014609

$49.00

205

LH Rear Footrest Pad | Includes 205 to 205a

705014610

$49.00

210

Carbon Black, Rear Footrest | Includes 210 to 210b

705015564

$135.00

220

Bushing

705002153

$11.06

225

Allen Plastite Screw #12

250000099

Unavailable

230

BLOCK_SLIDING PAINTED B-322-TX | Includes 230 to 230b

548875375

$59.00

240

Hex. Screw M8 X 55

207085556

$1.65

250

Conical Spring Washer M8

234281474

$1.25

260

Rubber Stopper

708000759

Unavailable

270

Hex. Flange Screw M8 X 110

230681034

Unavailable

280

Washer

503183800

$3.20

290

Hex. Flange Elastic Nut M8

233281434

Unavailable

300

Rubber Bushing

705003018

$10.00

310

Hex. Cap Screw Full Thread M10 X 20

250000719

$6.00

320

Washer

506152582

Unavailable

330

Hex Screw Washer Head M8 X 20

207582054

$2.61

340

Socket Screw Nylon Patch M10 X 45

250001120

Unavailable

345

Washer

503191926

Unavailable

350

Film, Protective

705014173

$7.00

370

Hex Screw Washer Head M8 X 20

207582054

$2.61

410

Spacer

705008219

$13.00

420

Hex. Flange Screw M6 X 60

250000778

Unavailable

430

Hex. Flange Elastic Nut M6

233261466

Unavailable

440

Washer M6

250200029

Unavailable
