Description

Price

75

Rear Brake Disk

705601632

$245.00

80

Hex. Flange Screw M10 X 25

250001054

$12.48

90

Rear Caliper | Includes 90 to 90d

705600989

$498.00

90a

Brake Pad Kit

219800239

$79.00

90b

Spring/Pin/Clip Kit

219800240

$36.00

90c

Rear Cable Support Kit

219800241

$41.00

90d

Rear Dust Cover

219800242

$33.00

100

Rear Brake Caliper Support

705601746

$57.00

110

Hex. Flange Screw M12 X 30, Scotch Grip

207523056

$5.07

120

Flexible Brake Line Rear | Includes 120 to 120a

705601675

$75.00

120a

Clamp

293650256

$4.36

140

Banjo Bolt/ Bleeder

705601201

$17.66

141

Bleeder Bolt Cap

705601190

$4.28

150

Washer

414920600

$1.52

160

Hex. Flange Screw M6 X 20

207662054

$0.83

161

Hex. Flange Elastic Nut M6

233261494

$1.26

165

Cable Guide

706202587

$12.00

170

Tandem Cylinder Master

705600722

$370.00

180

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.68

200

Hex. Nut M8

232081414

$0.60

230

Bellow

705600716

$12.00

240

Oeticker Gear Clamp, 25.6-706R

509000442

$4.12

500

Master Cylinder Reservoir Ass'y | Includes 500 to 500h

705601526

$110.74

500b

Diaphragm Cover Ass'y

219800350

$17.66

500c

Diaphragm Cover Ass'y

219800350

$17.66

500d

Oil Level Sensor

705601073

$50.74

500g

Spindle Lock

705601294

$14.37

500h

Push Nut | Not shown

211100002

$0.83

501

Connector Holder

710002033

$3.22

502

Stopper Spring

705209087

$6.00

510

Formed Hose

705601790

$17.00

515

Hose Support

709000571

$4.60

530

Crimp Clamp, 15.3-706R

293650047

$2.64

640

MASTER CYLINDER TIE-ROD END - Call your local BRP dealership

705601340

Unavailable

650

Piston Rod

705600468

$23.00

740

Parking Brake Cable

707001058

$67.00

755

Open Clamp

515175507

$1.47

760

Hexagonal Head Screw

210262050

$1.74

800

Pulley Cable Ass'y | Includes 780 to 780b

705601973

$87.66

800b

Ball Bearing

705601974

$7.03

810

Hex. Flange Elastic M10 x 1.5

233201464

$6.18

820

Bushing

293900087

$7.60

830

Hex. Flange Screw M10 X 40 | Includes 783 to 783j

207604054

$7.00

830a

Trim 1000Mm Long

219704354

$14.74

830b

Grommet

293720084

$6.00

830c

Speed Sensor

710006982

$84.00

830d

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.37

830f

Shim

710002023

$3.00

830g

Hose Support

710002145

$8.00

830h

Torx Truss Screw M6 X 30

250000843

$1.74

830j

Sensor Wheel

705601372

$47.00

830k

Socket Head Screw M5 X 10

205851036

$7.00

830m

Protector

710004281

$26.00

830n

Torx Truss Screw M6 X 30

250000843

$1.74

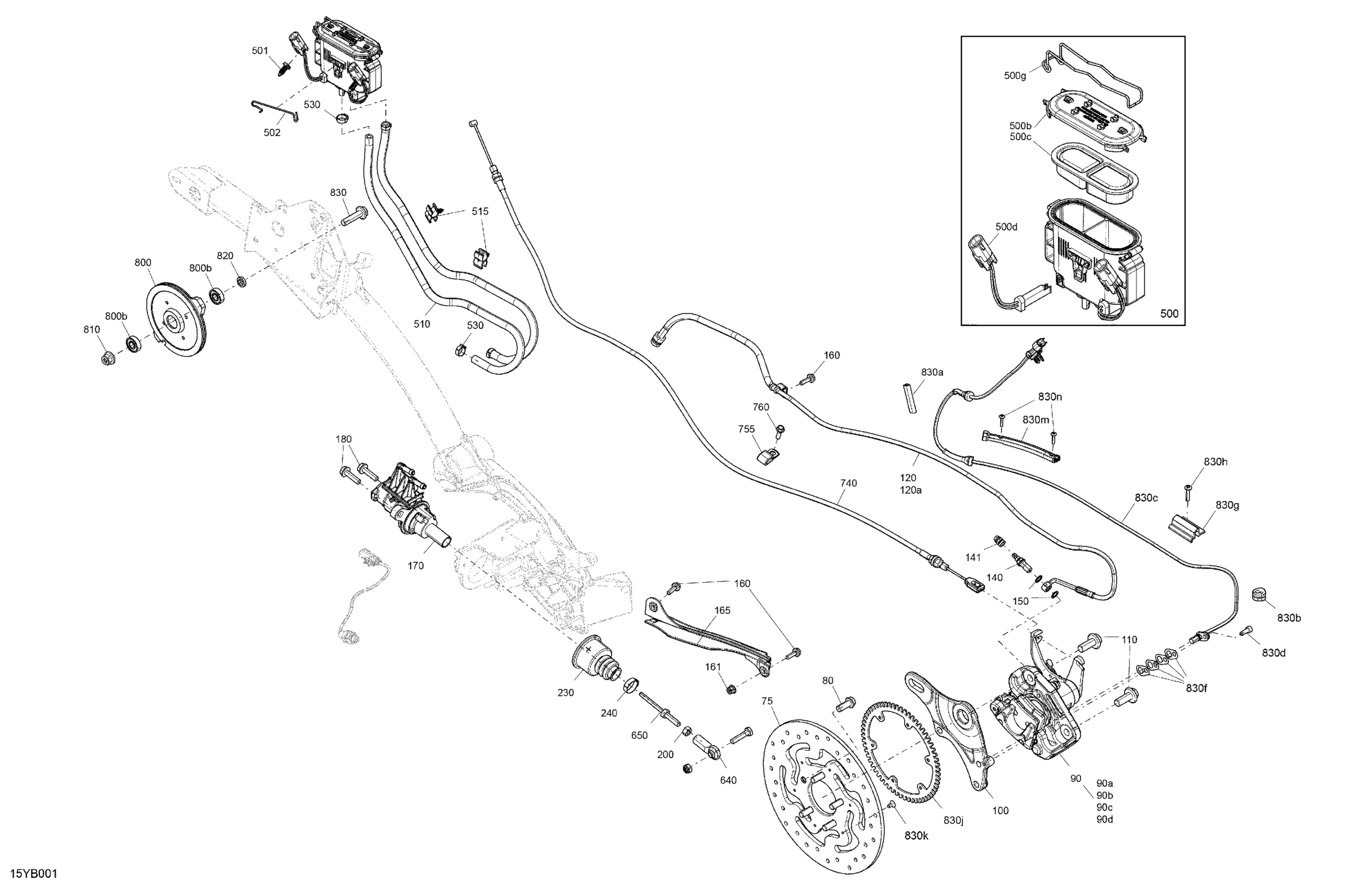

Can-Am RT - Hyper Silver, 2022 Mechanic - Rear Brake Diagram

MASTER CYLINDER TIE-ROD END - Call your local BRP dealership
