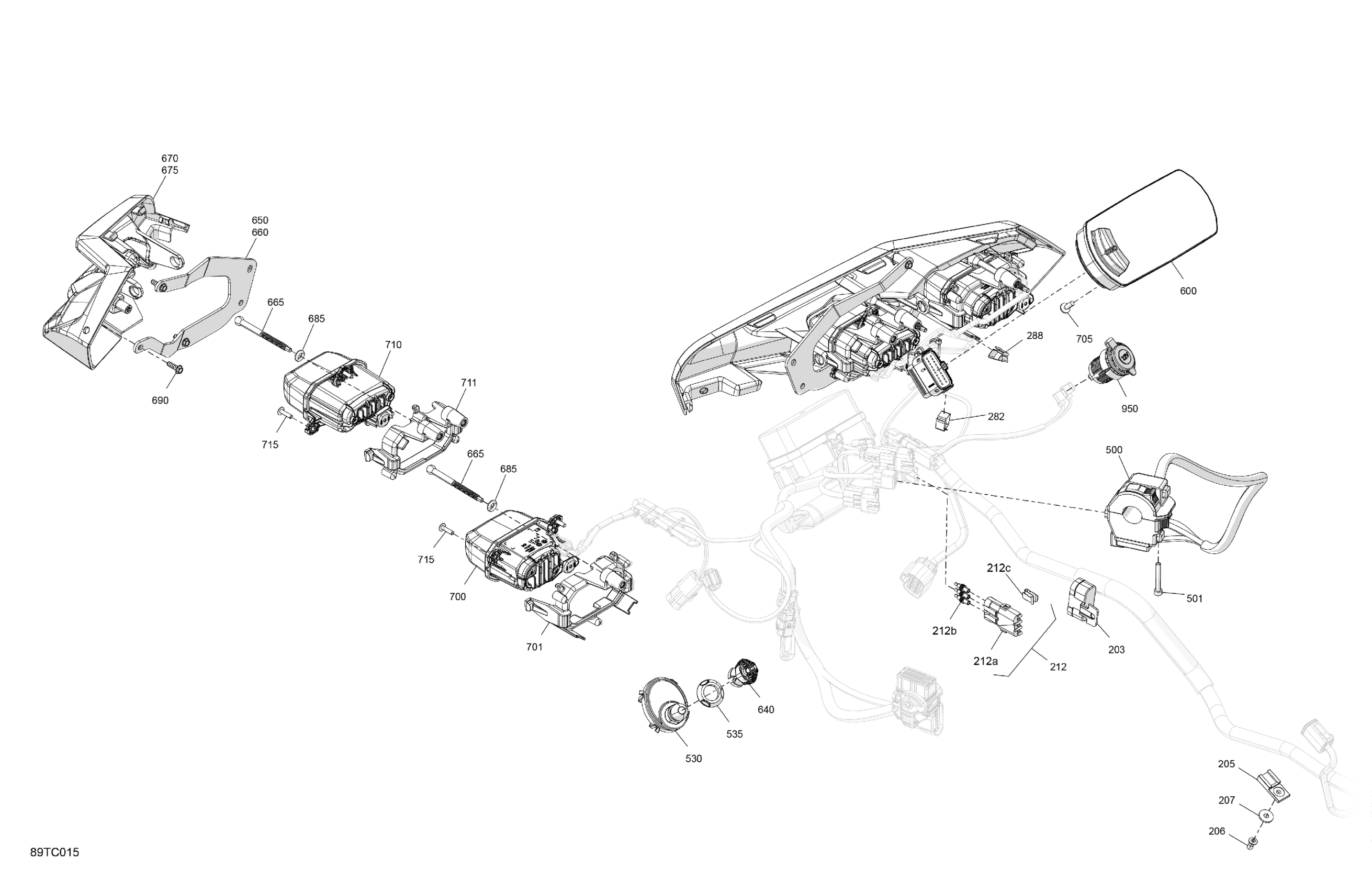

Can-Am Renegade 650 EFI - STD - 2023 Electric - Front Section Diagram

Description

Price

203

DPS Connector Cap | Not Shown

710005760

$14.34

205

Clip

270000141

$8.33

206

Pop Rivet 3/16"

390402300

$0.73

207

Washer | DS 650 X

391301600

$0.46

212

Connector Ass'y | STD / Includes 7 to 10

710000917

$11.81

212a

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

212b

Wire Seal

278000216

$2.55

212c

Clip

710000992

$3.88

282

Clip

414227300

$1.40

288

Clip

414227300

$1.40

500

Switch Handle

710006134

$66.39

501

Socket Head Screw M5 X 35

205053588

$1.56

530

Terminal DESS One Wire

515179305

$60.42

535

Specialized Nut

278004274

$2.72

600

Multifunction Gauge Compact Mono

710008108

$364.90

640

Grey Key RFID | Except Model Europe, Except T3

710004964

$53.70

640

Grey, Can-Am DESS Key

515179384

$53.70

650

LH Front Headlight Support

710008461

$35.04

660

RH Front Headlight Support

710008462

$35.04

665

Ajustment Screw

710005837

$5.90

670

Trim_Headlight Fl

705016529

$46.24

675

RH Front Headlight Trim

705016532

$59.67

685

O-Ring

293300192

$3.81

690

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

700

Low Beam Light

710008088

$152.21

701

Exterior Headlight Support

710008396

$23.85

705

Torx Screw K50 X 16

250000720

$1.39

710

HIgh Beam Light

710006910

$152.21

711

Interior Headlight Support

710008394

$8.15

715

Torx-Truss Pt K40 X 16

250000759

$1.74

950

DC Outlet

710001248

$31.17
