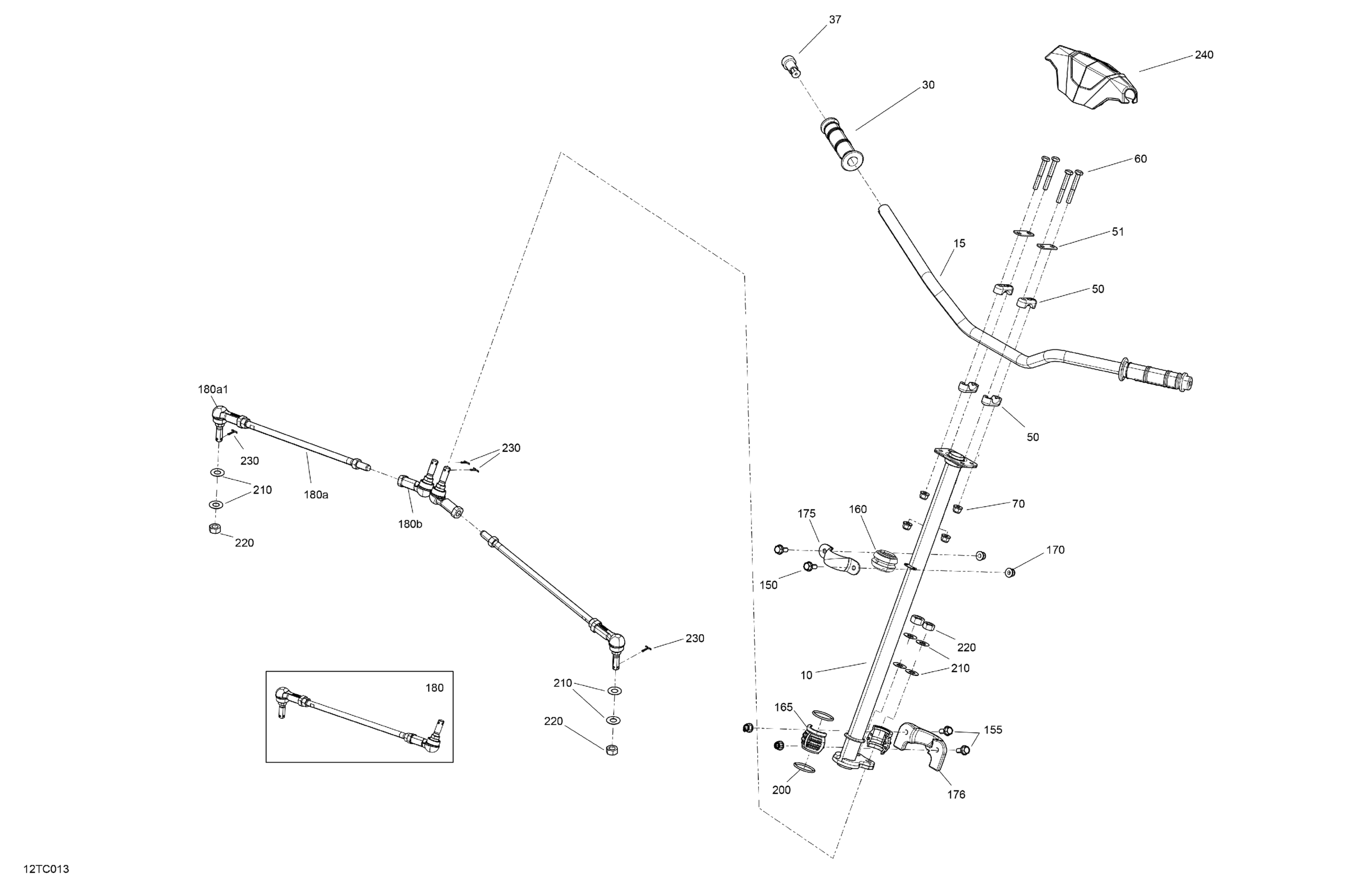

Can-Am Renegade 650 EFI - STD - 2023 Mechanic - Steering Diagram

Description

Price

Steering Axle

709402806

$166.12

Deep Black, Handlebar

709402872

$55.35

Handle Grip

709400493

$14.75

End Piece

709400449

$8.29

Steering Support

709401799

$20.74

Stiffner

709400509

$4.43

Hex. Screw M8 X 60

207086046

$2.30

Hex. Elastic Flange Nut M8

233281416

$1.25

150

Hex. Flange Screw M8 X 20

207682044

$0.92

155

Hex. Flange Screw M8 X 25

207682544

$0.90

160

Spherical Bushing

709402169

$6.14

165

Spherical Half Bushing

709400783

$6.14

170

Hex. Flange Elastic Nut M8

233281414

$1.14

175

Upper Column Attachment

709400827

$1.00

176

Column Attachment

709401428

$36.12

180

Tie-Rod Ass`y | Includes 180 to 180b

703501039

$106.12

180a

Not Available As Spare Parts

XXX

Unavailable

180a1

LH Ball Joint

709402303

$35.35

180b

RH Ball Joint

709402302

$35.35

200

O-Ring

293300068

$5.29

210

Hardened Washer

706200281

$2.34

220

Hex Nut M12

250100239

$1.64

230

Cotter Pin

211400013

$0.32

240

Cover

709400939

$23.05
