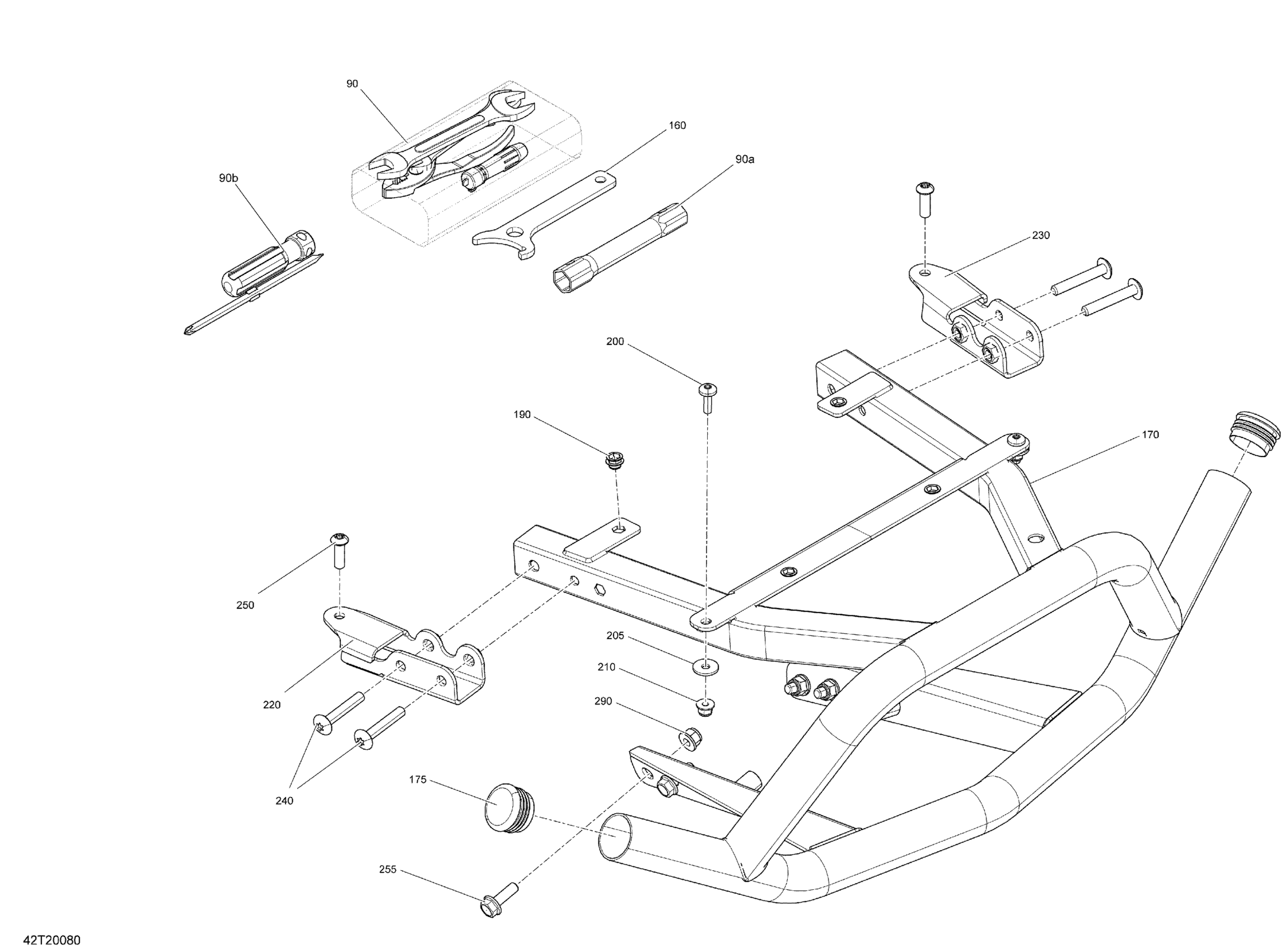

Can-Am Renegade 570 EFI - XMR - 2020 Front Storage Compartment Diagram

Description

Price

Tool Kit

704700168

$44.99

90a

Socket Wrench 14/16MM

529000085

$6.99

90b

Screw Driver

529000021

$3.99

160

Adjustment Wrench

529000035

$2.19

170

Sunburst Yellow, Rear Bumper Kit

715004685

$166.12

175

Cap

705202455

$4.62

190

Insert Half Hex Body M6 x 1.0

250100199

$2.54

200

Torx Screw M6 X 20

250000712

$1.74

205

Flat Washer

224061201

$1.11

210

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

220

LH Front Bracket

705004977

$32.28

230

RH Front Bracket

705004978

$32.28

240

Torx Screw M8 X 50 S.GRIP

250000844

$5.54

250

Button Head Torx Screw M8 X 25 S.Gr

250000757

$1.61

255

Hex. Flange Screw M8 X 25

207682534

$0.90

290

Hex. Flange Elastic Nut M8

233281414

$1.14
