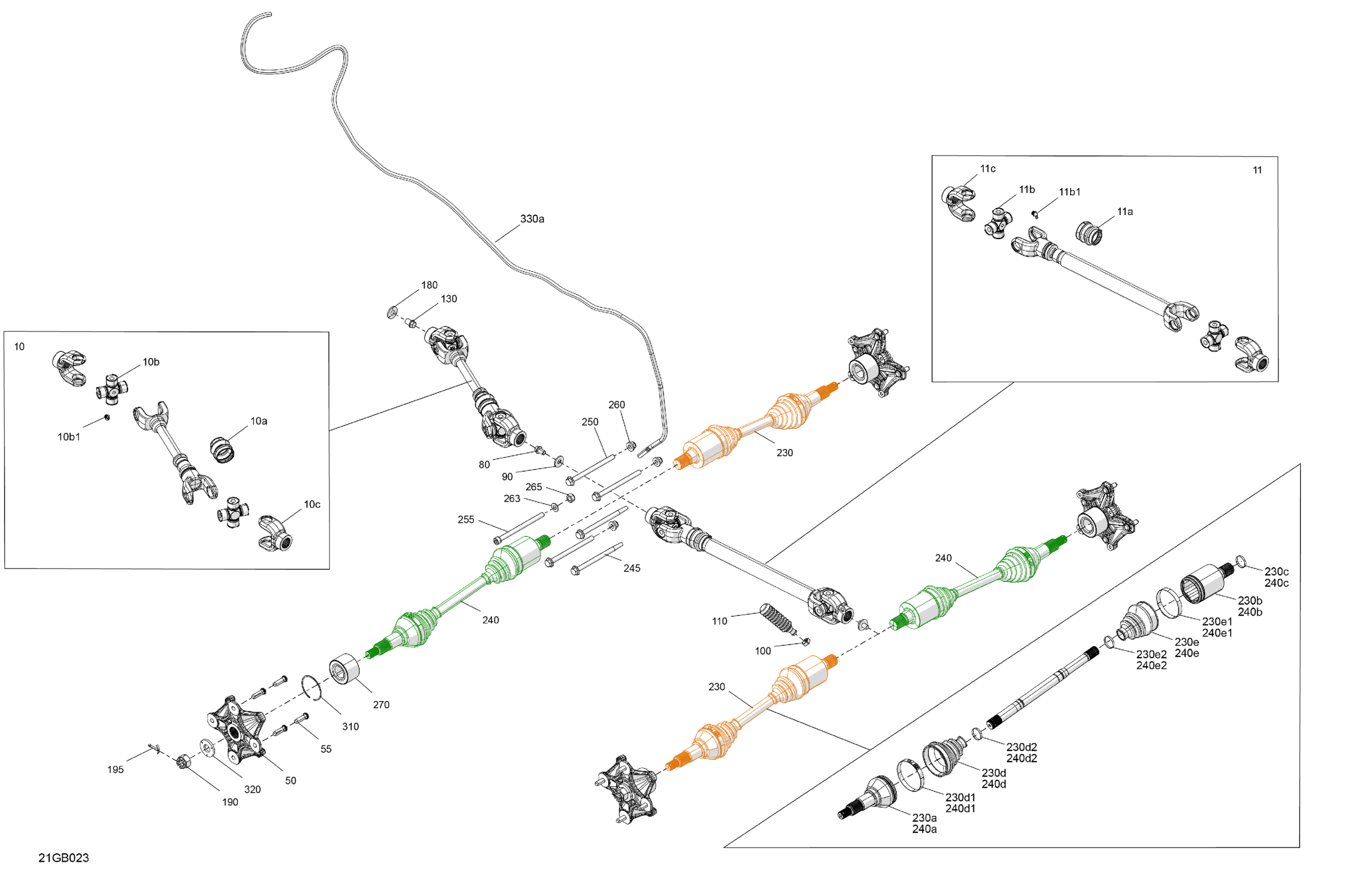

Can-Am Outlander T 6X6 - 450 EFI - XU+ - T Regulation, 2022 Drive - Rear - Common Parts Diagram

#

Description
Price

10

Rear Propeller Shaft Ass'y Kit

703500932

$253.82

10a

Rubber Boot

715900118

$13.83

10b

Universal Joint Ass'y | T3

703500846

$59.97

10b1

Grease Fitting | T3

715900295

$4.62

10c

Yoke | T3

715900500

$23.05

11

Shaft Ass'y Kit | Includes 11 to 11f

703501135

$396.89

11a

Rubber Boot

715900118

$13.83

11b

Universal Joint

715900326

$69.20

11b1

Grease Fitting | T3

715900295

$4.62

11c

Yoke | T3

715900500

$23.05

50

Wheel Hub

705503257

$101.51

55

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.28

80

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$1.74

90

Flat Washer M10 | 4X4

250200014

$1.17

100

Oetiker Clamp

293650042

$1.40

110

Rubber Bellow | 4X4

705400552

$6.02

130

Hex Flange Screw M12 X 16

250001039

$1.74

180

Conical Spring Washer M12

250200005

$2.65

190

Hex. Flange Castellated Nut M18

232291413

$2.82

195

Cotter Pin

250400071

$1.74

230

RH Half Shaft Ass'y

705501897

$232.74

230a

CV Joint

705401344

$253.82

230b

Plunging Joint

715900304

$115.35

230c

Circlip

705501781

$5.38

230d

Boot Kit, Wheel Side

705401345

$41.51

230d1

Oetiker Clamp

715900282

$4.39

230d2

Oetiker Clamp, Small

715900283

$4.39

230e

Boot Kit, Differential Side

705401346

$41.51

230e1

Oetiker Clamp, Large

715900284

$4.39

230e2

Oetiker Clamp, Small

715900261

$4.39

240

LH Half Shaft Ass'y

705501898

$232.74

240a

CV Joint

705401344

$253.82

240b

Plunging Joint

715900304

$115.35

240c

Circlip

705501781

$5.38

240d

Boot Kit, Wheel Side

705401345

$41.51

240d1

Oetiker Clamp

715900282

$4.39

240d2

Oetiker Clamp, Small

715900283

$4.39

240e

Boot Kit, Differential Side

705401346

$41.51

240e1

Oetiker Clamp, Large

715900284

$4.39

240e2

Oetiker Clamp, Small

715900261

$4.39

245

Hex. Flange Screw M10x145

705502741

$7.00

250

Hex. Flange Screw M10 X 135

250001041

$4.46

255

Screw Socket HD M10 X 140

250001094

Unavailable

260

Hex. Flange Elastic Nut M10

233201436

$1.74

263

WASHER M10 - Call your local BRP dealership

20005

Unavailable

265

Elastic Stop Nut M10

232500416

$1.56

270

Ball Bearing

293350150

$51.93

310

Circlip

293370019

$4.98

320

Conical Spring Washer M18

250200171

$5.28

330a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42
