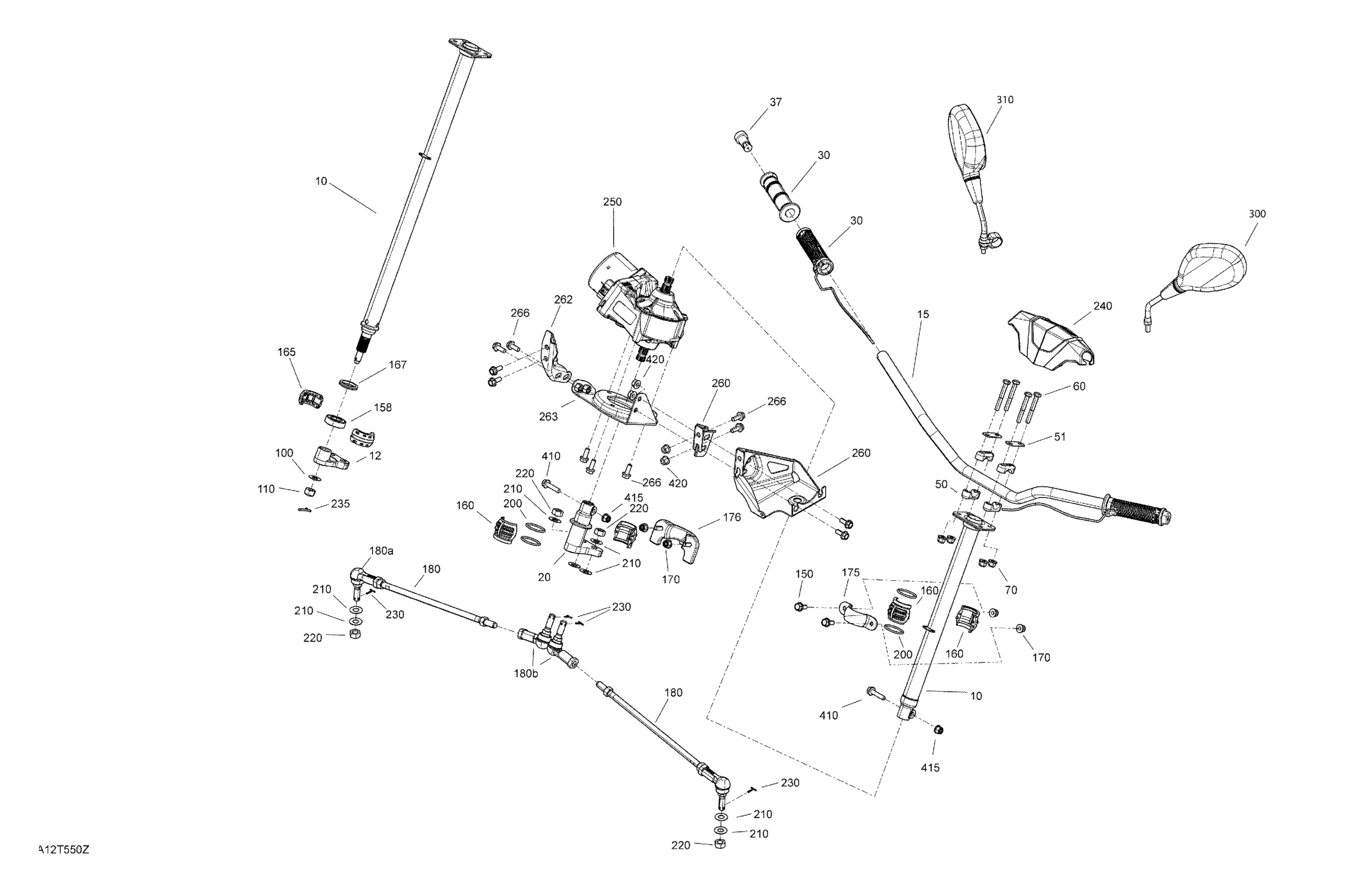

Can-Am Outlander T 450 EFI - STD_DPS_XU_XU+ - T Regulation, 2021 Mechanic - Steering Diagram

Black, Upper Main Tube | Package-STD

709401545

$143.05

Main Tube Kit | Model With DPS

703501108

$67.66

Pitman Arm | Package-STD

709401542

$27.66

Black, Handle Bar

709401240

$55.35

Pitman Arm | Model With DPS Except XMR

703501160

$41.51

Handle Grip

709400493

$14.75

Heated Hand Grip With Connector

710005038

$59.97

End Piece

709400449

$8.29

Steering Support

709401799

$20.74

Stiffner

709400509

$4.43

Hex. Screw M8 X 60

207086046

$2.30

Hex. Elastic Flange Nut M8

233281416

$1.25

Hardened Washer

706200281

$2.34

Hex. Flange Elastic Nut M12

250000047

$1.56

Hex. Flange Screw M8 X 20

207682044

$0.92

Hex. Flange Screw M8 X 25

207682534

$1.06

Ball Bearing | Package-STD

503190396

$7.12

Spherical Half Bushing

709400783

$6.14

Spherical Half Bushing | Package-STD

709401370

$5.80

Seal

293250177

$7.37

Hex. Flange Elastic Nut M8

233281414

$1.14

Upper Column Attachment

709400827

$1.00

Column Attachment

709401428

$36.12

Tie Rod Ass`y | Includes 15 to 17

703501038

$92.28

LH Ball Joint

709402303

$35.14

RH Ball Joint

709402302

$35.14

O-Ring

293300068

$5.29

Hardened Washer

706200281

$2.34

Nut M12

250100099

$1.64

Cotter Pin

211400013

$0.32

Cotter Pin

250400034

$2.06

Cover

709400939

$23.05

Power Steering Ass'y | Model With DPS

709403187

Unavailable

Power Steering Module Bracket

709402192

$23.05

LH Power Steering Bracket | Model With DPS

709402184

$15.35

RH Bracket | Model With DPS

709402185

$27.66

Power Steering Support | Model With DPS

709401743

$16.89

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

LH Mirror | Europe

709400406

$36.89

RH Mirror | Europe

709400407

$46.12

Hex. Flange Screw M8 X 45 Scotch Grip

250001133

$3.30

Hex. Elastic Flange Nut M8

233281416

$1.25

Hex. Flange Nut

233081436

$1.63
