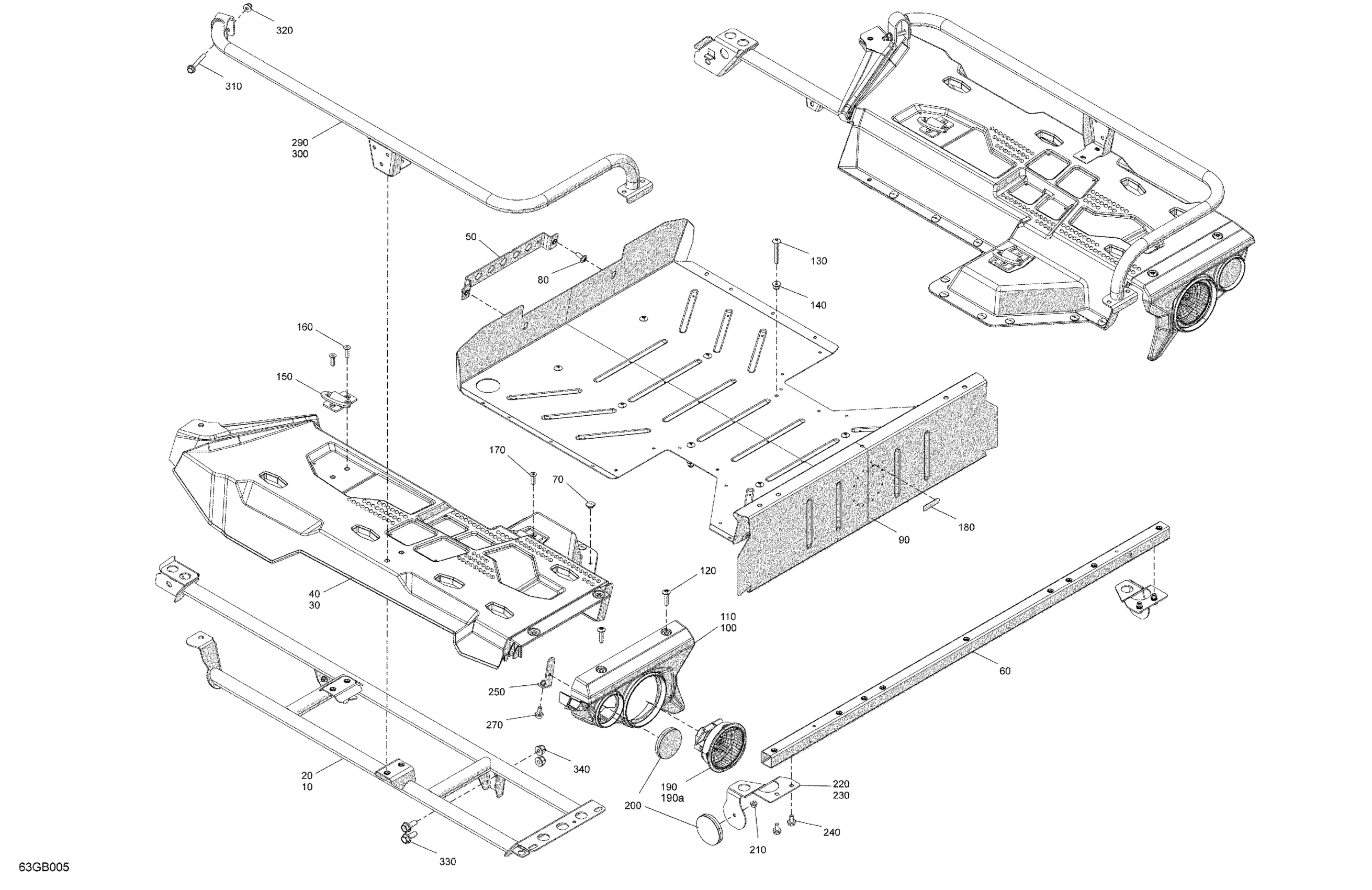

Can-Am Outlander MAX 6X6 - 450 EFI - DPS - 2022 Body - Cargo Diagram

#

Description
Price

10

RH Fender Support | Includes 1000 to 1000a

708302667

$251.46

20

LH Fender Support | Includes 1010 to 1010a

708302668

$251.46

30

RH Cargo Fender

708302687

$184.30

40

CARGO FENDER LH - Call your local BRP dealership

708302688

Unavailable

50

Fastening Plate | Includes 1040 to 1040a

708302628

$30.57

60

Rear Support Tube | Includes 1050 to 1050a

708302619

$50.72

70

Pop Rivet 3/16"

293150103

$0.52

80

Torx Head Screw M6 X 16

250000717

$2.00

90

Middle Area

705207512

Unavailable

100

RH Light Cover

708302734

$11.51

110

LH Light Cover

708302735

$11.51

120

Torx Truss Screw M6 X 25

250000807

$2.00

130

Torx Screw M6 X 45

250000748

$1.79

140

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

150

Retaining Hook

708301189

$49.97

160

Screw-socket Hd.ctsk.m6 X 25

205362556

$1.78

170

Socket Screw HD.CTSK.DIN.7991 | not shown

205362096

$13.21

180

BRP Logo 68 mm

219902672

$11.40

190

Tail Light Ass'y | Includes 32 to 33

710001645

$79.07

190a

Bulb

520000758

$8.60

200

Red Reflector

705011221

$11.96

210

Flange Elastic Nut M5

233251434

$1.91

220

LH Reflector Support

708302774

$14.76

230

RH Reflector Support

708302773

$14.76

240

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.79

250

Reflector Support

708302771

$5.79

260

Clinch Nut M6 Hexsert

605636003

$4.00

270

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.79

280

Rear Support | Not shown

708302946

Unavailable

290

LH Side Rail

708302788

$58.93

300

RH Side Rail

708302789

$58.93

310

Hex. Flange Screw

207664554

$1.99

320

Hex. Flange Elastic Nut M6

233261466

$1.91

330

Hex. Flange Screw M8 X 20

207682046

$1.76

340

Hex. Elastic Flange Nut M8

233281416

$1.43

1000

Platform Kit | Not shown

715006464

$112.66
