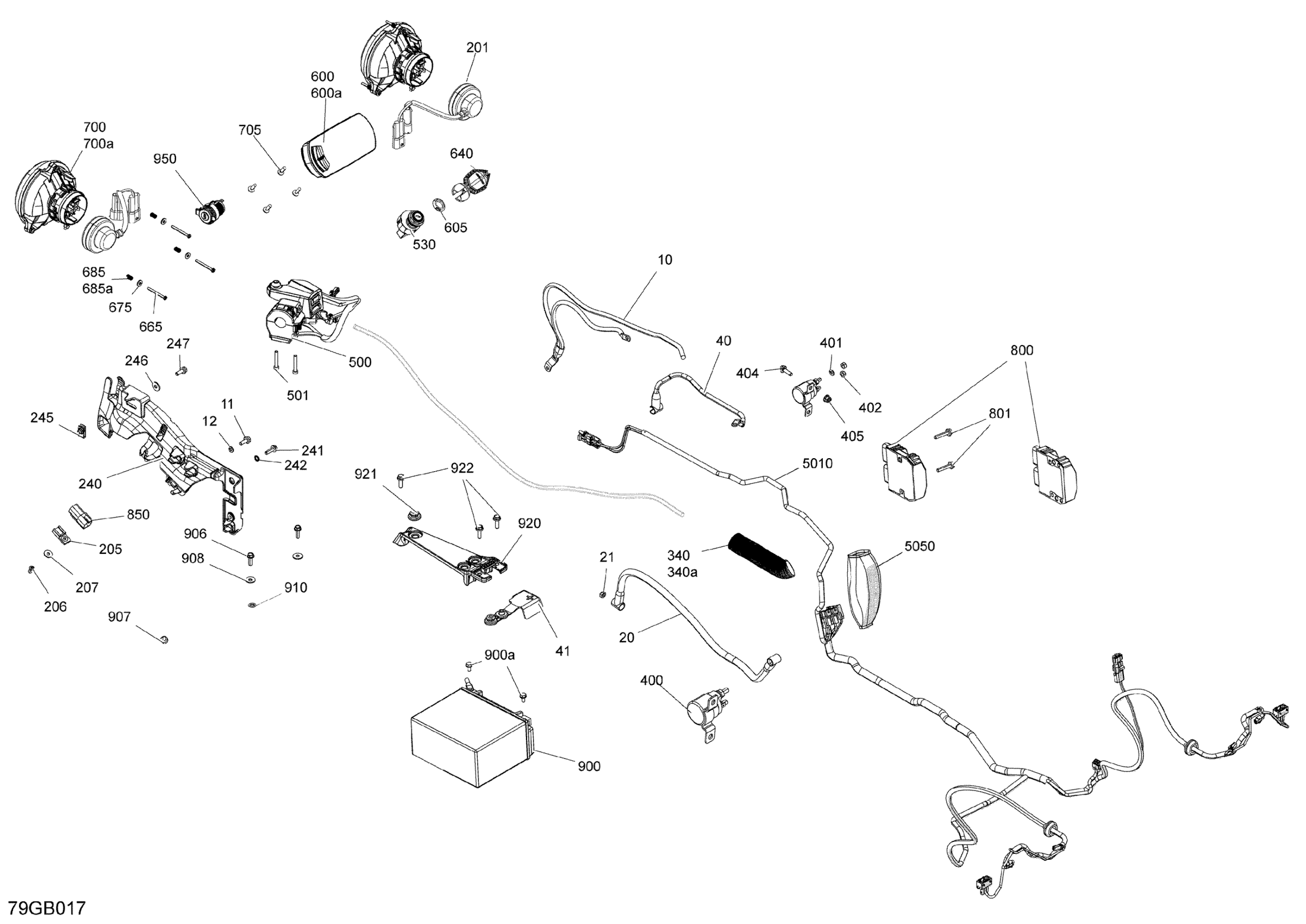

Can-Am Outlander MAX 6X6 - 450 EFI - DPS - 2022 Electric - System Diagram

#

Description
Price

10

Ground Cable

710004380

$18.43

11

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

12

Lock Washer Helical M6

234161601

$0.92

20

Positive Cable | Engine 450

710004381

$18.43

21

Elastic Stop Nut M6

232561434

$1.55

40

Positive Cable

710004376

$46.12

41

Battery Cable Cap

710006729

$7.37

201

Light Cable

710005780

$20.74

205

Clip

270000141

$8.33

206

Pop Rivet 3/16"

390402300

$0.75

207

Washer | DS 650 X

391301600

$0.48

240

Cable Bracket

707001280

$12.17

241

Hex. Flange Screw M6 X 20

210262040

$2.06

242

External Serrated Lock Washer 6 mm

234461608

$0.92

245

Panel Nut M6 X 1.0

250100198

$1.73

246

Flat Washer 6 mm

234062410

$0.64

247

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

340

Tubing 35 MM 1000MM Long

219704428

$8.57

340a

Tubing 35 MM 1000MM Long

219704428

$8.57

400

Starter Relay

710007777

$46.89

401

Lock Washer Helical M6

234161601

$0.92

402

Elastic Stop Nut M6

232561434

$1.55

404

Hex. Flange Screw M6 X 20

207662054

$0.83

405

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

500

Multi-Function Handle | Except Model Europe, Except T3

710005072

$64.58

501

Socket Head Screw M5 X 35

205053588

$1.56

530

Terminal Dess One-Wire | Except Model Europe

515178840

$67.57

600

Multifunction Gauge Compact Mono

710008108

$383.05

600a

Multifunction Compact Gauge

710007407

$355.35

605

Safety Nut (DESS Switch)

278002963

$2.72

640

Grey Key RFID | Except Model Europe, Except T3

710004964

$55.35

665

Hex. Screw K40 X 45

250000718

$1.74

675

Flat Washer

517225900

$0.17

685

Spring

517168600

$6.91

685a

Spring

517168600

$6.91

700

Low Beam

710003900

$106.12

700a

Bulb, 12V 35/35W

710000871

$32.28

705

Torx Screw K50 X 16

250000720

$1.39

800

Voltage Regulator | Package-DPS, Model-Europe

710005569

$85.77

801

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

850

Housing

710003006

$7.24

900

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

900a

Battery Bolt Kit

250000282

$2.95

906

Hexagonal Head Screw

210262050

$1.74

907

Rubber Bumper

293830005

$5.33

908

Stainless Steel Flat Washer

234062670

$1.74

910

Push Nut

732610072

$1.72

920

Retaining Plate

710009129

$7.60

921

Stopper Rubber

705014429

$6.09

922

Hex. Flange Screw M6 X 20

207662054

$0.83

950

DC Outlet

710001248

$31.17

5010

Rear Lighting Wiring Harness | Not Shown

710009472

$282.28

5050

Sheath | Not Shown

710004193

$19.20
