Description

Price

10

RH Fender Support | Includes 1000 to 1000a

708302667

$267.66

20

LH Fender Support | Includes 1010 to 1010a

708302668

$267.66

30

RH Cargo Fender

708302687

$189.97

40

CARGO FENDER LH - Call your local BRP dealership

708302688

Unavailable

50

Fastening Plate | Includes 1040 to 1040a

708302628

$31.51

60

Rear Support Tube | Includes 1050 to 1050a

708302619

$52.28

70

Pop Rivet 3/16"

293150103

$0.54

80

Torx Head Screw M6 X 16

250000717

$1.74

90

Middle Area

705207512

Unavailable

100

RH Light Cover

708302734

$11.86

110

LH Light Cover

708302735

$11.86

120

Torx Truss Screw M6 X 25

250000807

$1.74

130

Torx Screw M6 X 45

250000748

$1.56

140

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

150

Retaining Hook

708301189

$51.51

170

Socket Screw HD.CTSK.DIN.7991 | not shown

205362096

$13.62

180

BRP Logo 68 mm

219902672

$9.93

190

Tail Light Ass'y | Includes 32 to 33

710001645

$81.51

190a

Bulb

520000758

$7.49

200

Red Reflector

705011221

$12.32

210

Hex. Flange Elastic Nut M5

233251414

$1.66

240

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

250

Reflector Support

708302771

$5.97

260

Clinch Nut M6 Hexsert

605636003

$4.12

270

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

280

Rear Support | Not shown

708302946

Unavailable

290

LH Side Rail

708302788

$64.58

300

RH Side Rail

708302789

$64.58

310

Hex. Flange Screw

207664554

$1.73

320

Hex. Flange Elastic Nut M6

233261466

$1.66

330

Hex. Flange Screw M8 X 20

207682046

$1.82

340

Hex. Elastic Flange Nut M8

233281416

$1.25

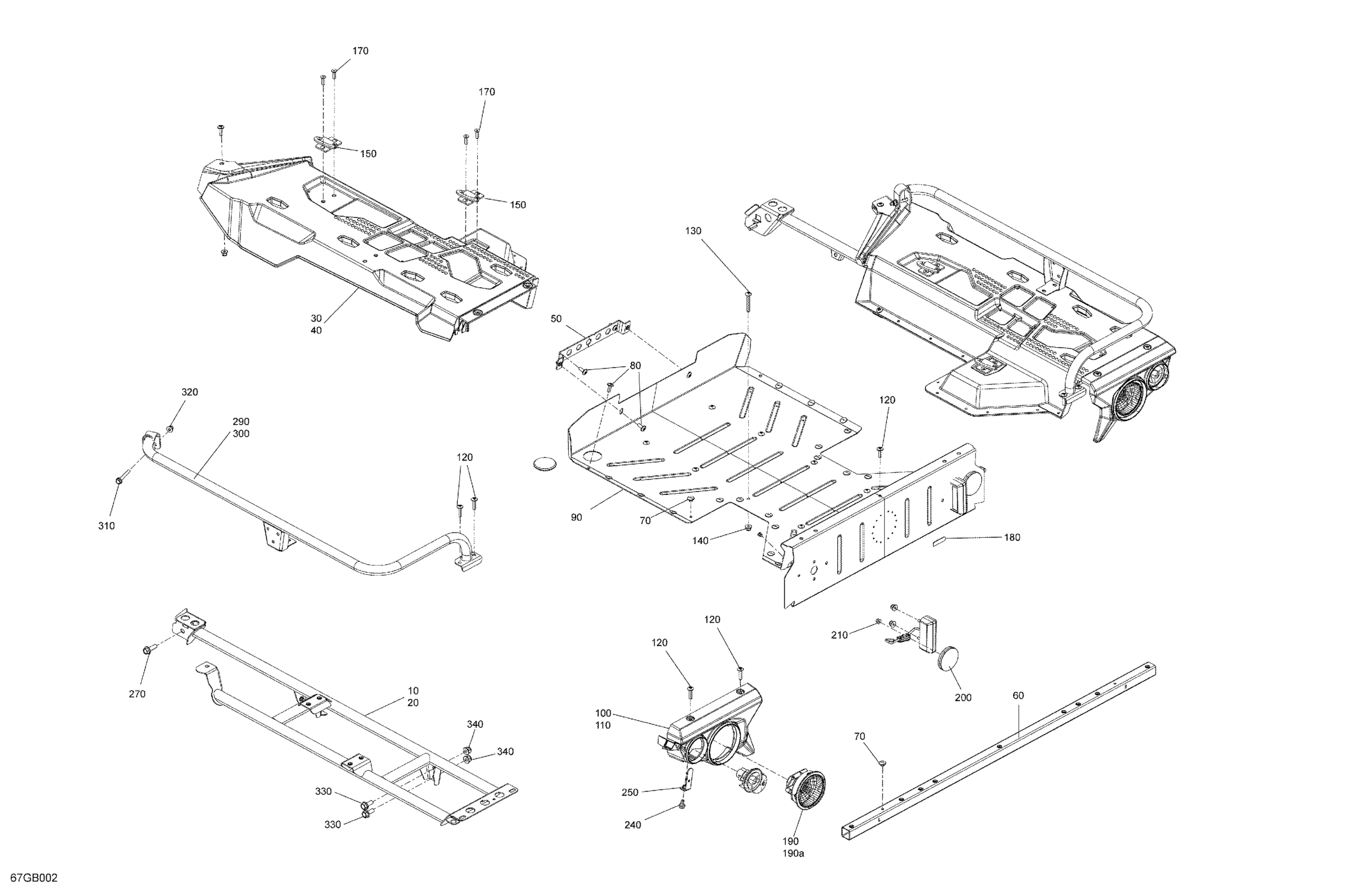

Can-Am Outlander MAX 6X6 - 450 EFI - DPS - International, 2022 Body - Platform Diagram

CARGO FENDER LH - Call your local BRP dealership

Middle Area

Rear Support | Not shown
