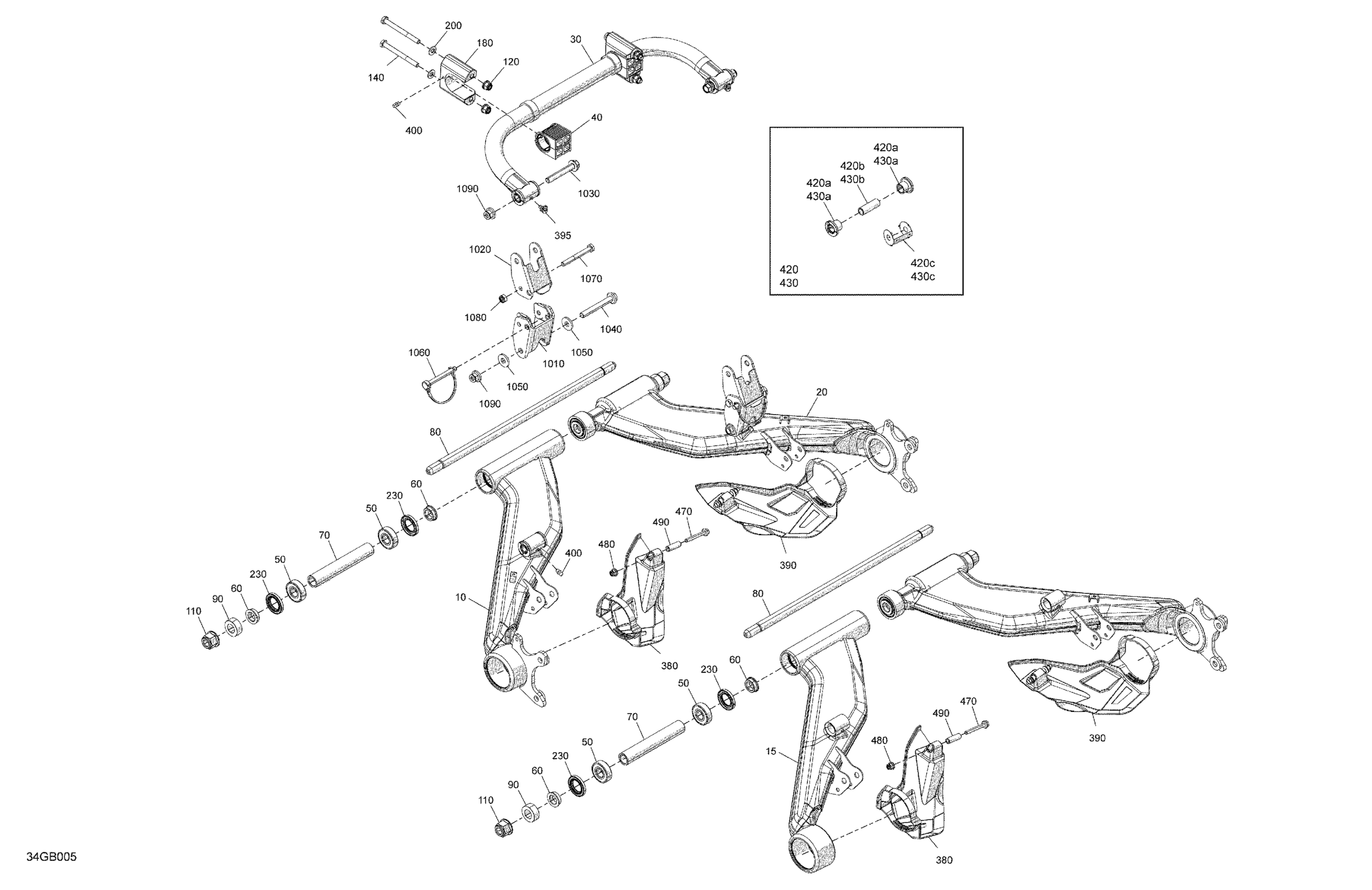

Can-Am Outlander MAX 6X6 - 450 EFI - DPS - 2022 Suspension - Rear Components Diagram

#

Description
Price

10

Black LH Rear Swing Arm

706003471

$290.74

15

Black, LH Rear Swing Arm

706001646

$290.74

20

Black, RH Rear Swing Arm

706004525

$290.74

30

Sway Bar

706001678

$129.20

40

Stabilizer Bar Bushing

706004640

$9.22

50

Ball Bearing

293350145

$12.91

60

Spacer

706001282

$10.98

70

Spacer

706002258

$27.66

80

Axial Pivot M16

706001664

$69.20

90

Flat Washer M17

250200112

$6.34

110

Hex. Flange Elastic Nut M16

233211466

$1.53

120

Hex. Flange Elastic Nut M8

233281434

$1.74

140

Hex. Screw M8 X 85

250001035

$1.46

180

Bushing Holder

706001099

$31.51

200

Flat Washer 8 mm

234081410

$0.69

230

Seal

293200144

$4.60

380

LH Protector

706002482

$14.37

390

RH Protector

706002483

$14.75

395

Grease Fitting 90°

293550056

$1.37

400

Grease Fitting

250000315

$4.82

420

Suspension Arm Bushing Kit | Includes 4

703500875

$15.35

420a

Not Available As Spare Part - Friction Washer

Unavailable

420b

Not Available As Spare Part - Friction Washer

Unavailable

420c

Not Available As Spare Part - Friction Washer

Unavailable

430

Suspension Arm Bushing Kit | Includes 4

703500875

$15.35

430a

Not Available As Spare Part - Friction Washer

Unavailable

430b

Not Available As Spare Part - Friction Washer

Unavailable

430c

Not Available As Spare Part - Friction Washer

Unavailable

470

Hex. Flange Screw M6 X 50

207665044

$3.38

480

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

490

Bushing

707001376

$4.22

1010

Linkage Outer Part

706003107

$23.82

1020

Linkage Inner Part

706003109

$23.82

1030

Hex. Flange Screw M10 X 65

207606536

$3.61

1040

Hex. Flange Screw M10 X 75

250001038

$5.54

1050

Washer

505073634

$2.31

1060

Pin Onto The Shaft

706001602

$14.02

1070

Hex. Screw M8 x 65

207086544

$1.42

1080

Hex. Elastic Stop Nut M8

232581414

$0.47

1090

Hex. Flange Elastic Nut M10

233201436

$1.74
