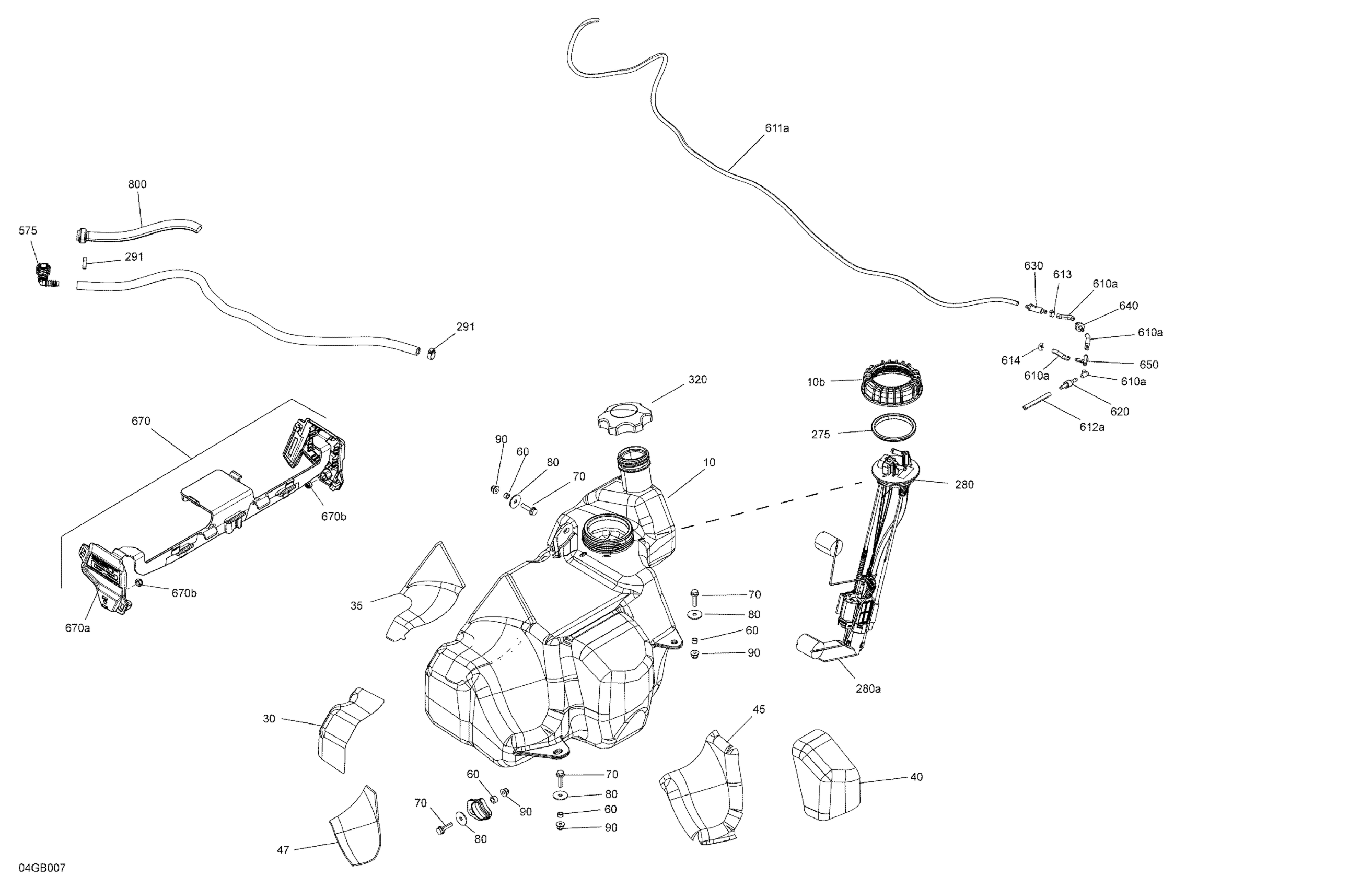

Can-Am Outlander MAX 6X6 - 450 EFI - DPS - International, 2022 Engine - Fuel Diagram

Description

Price

Fuel Tank Ass'y | Includes 10 to 10b

709000843

$249.20

10b

Fuel Pump Module Nut

709000328

$12.82

Heat Reflective Sheet

709000381

$5.38

Heat Reflective Sheet

709000387

$4.62

Heat Reflective Sheet

709001071

$9.29

Heat Reflective Sheet

709000388

$5.38

Heat shield

709000528

$16.89

Bushing | DS 650 X

293900104

$5.26

Hex. Flange Screw M6 X 25

207662544

$0.53

Washer

224060251

$0.57

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

275

Seal

709000208

$12.54

280

Fuel Pump

709000461

$326.69

280a

Prefilter Fuel Pump Kit 125mm Long | Not shown

715900677

$78.43

291

Crimp Clamp

293650053

$2.42

320

Fuel Tank Cap

513033025

$19.47

575

Quick Attach 90°

275500700

$12.61

610a

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

611a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

612a

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

613

Spring Clamp

414415200

$0.83

614

Oetiker Clamp

293650042

$1.40

620

Check Valve

513033469

$25.32

630

Filter

709001120

$8.29

640

Check Valve

275500398

$8.57

650

Y-Fitting

293710059

$8.19

670

Hose Support Ass'y

709000359

$13.80

670a

Hose Support Ass'y

709000359

$13.80

670b

Hex. Elastic Stop Nut M6

232561600

$0.92

800

Tube 25Mm 1000Mm Long | Engine 450

219704350

$49.97
