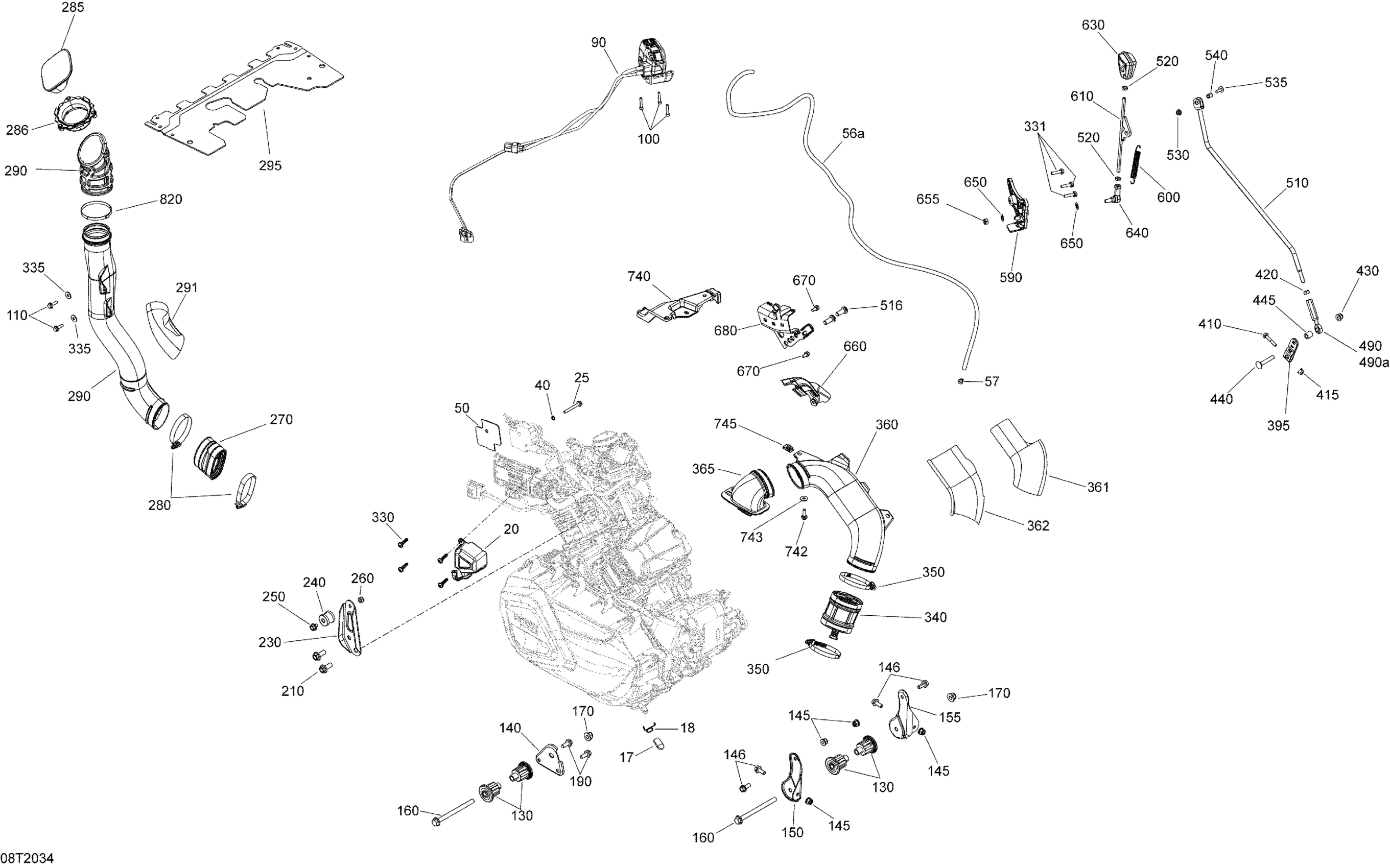

Can-Am Outlander 6X6 - 650 EFI - International, 2020 Engine Diagram

#

Description
Price

17

Plug

707001185

$1.04

18

Retainer Clip

707800506

$10.51

20

Cover

707000945

$6.16

25

Hex. Flange Screw M6 X 50

207665044

$3.38

40

External Serrated Lock Washer 6 mm

234461608

$0.92

50

Insulator Pad

710000073

$10.30

56a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

57

Oetiker Clamp | Europe

293650044

$4.07

90

Hand Lever Accelerator | Except Package
Hunting Edition

707003183

$190.27

100

Socket Head Screw M5 X 25

205052588

$1.56

110

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

130

Vibration Damper

707001169

$38.03

140

Engine Support

707003319

$8.21

145

Hex. Elastic Flange Nut M8

233281416

$1.25

146

Hex. Flange Screw M8 X 20

207682046

$1.76

150

LH Rear Engine Bracket

707001191

$8.21

155

RH Rear Engine Bracket

707001192

$8.21

160

Hex. Flange Screw M10 X 125

230602546

$6.08

170

Hex. Flange Elastic Nut M10

233201436

$1.74

190

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

210

Hex. Flange Screw M10 X 25

207602544

$1.33

230

Upper Engine Bracket

707001256

$10.82

240

Rubber Isolator

707000949

$9.00

250

Flange Screw M8 x 10, Scotch Grip

207581046

$3.99

260

Hex. Elastic Stop Nut M8

232581414

$0.47

270

Flexibale Adaptor

707002585

$14.31

280

Norma Clamp

293650091

$4.46

285

CVT Filter

707001786

$17.13

286

CVT Inlet

707001864

$59.67

290

CVT Air Inlet

707002067

$48.48

291

Heat Shield

707001654

$2.59

295

Upper Water Deflector

707001124

$20.12

330

Screw PT K60 X 30

250000949

$1.74

331

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

335

Flat Washer M6, Stainless

234062600

$0.64

340

CVT Air Outlet Adaptor

707001168

$14.27

350

Norma Gear Clamp

293650118

$9.74

360

Air Outlet

706600019

$37.99

361

Heat Shield

707001205

$8.66

362

Heat Shield

707001206

$8.66

365

CVT Cooling Duct Out

706600400

$49.22

395

Lever

707000911

$18.63

410

Hex. Flange Screw M6 X 35

207663544

$0.74

415

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

420

Hex. Nut M8, LH Threads

250100144

$1.64

430

Hex. Flange Elastic Nut M8

233281414

$1.14

440

Carriage Bolt M8 X 30

207783044

$1.74

490

Ball Joint Ass'y | Includes 55 to 56

707000966

$34.30

490a

Hex. Jam Nut M8

232180600

$0.56

510

Shifter Rod

707002068

$30.57

516

Screw Socket M10 X 25 | Europe

205402556

$3.25

520

Hex. Jam Nut M8

232180600

$0.56

530

Hex. Flange Nut M6

233161414

$1.74

535

Torx Screw M6 X 20, Scotch Grip

250000446

$3.61

540

Bushing

293900019

$7.21

590

Lever Support

707003054

$6.16

600

Spring

707000577

$9.73

610

Shift Arm | Except Europe

707000840

$14.43

630

Lever Trim

707003211

$7.72

640

RH Ball Joint

707001959

$34.30

650

Washer

506151252

$3.01

655

Hex. Elastic Stop Nut M8

232581414

$0.47

660

Cover OPS

707000410

$12.34

670

Hex. Flange Screw M6 X 12

210261250

$1.56

680

Cable Support

707003053

$7.72

740

Air Outlet Support

707001262

$7.39

742

Hex. Flange Screw M6 X 20

207662044

$1.66

743

Flat Washer 6 mm

234062410

$0.64

745

Panel Nut M6 X 1.0

250100198

$1.73

820

Crimp Clamp

293650240

$6.36
