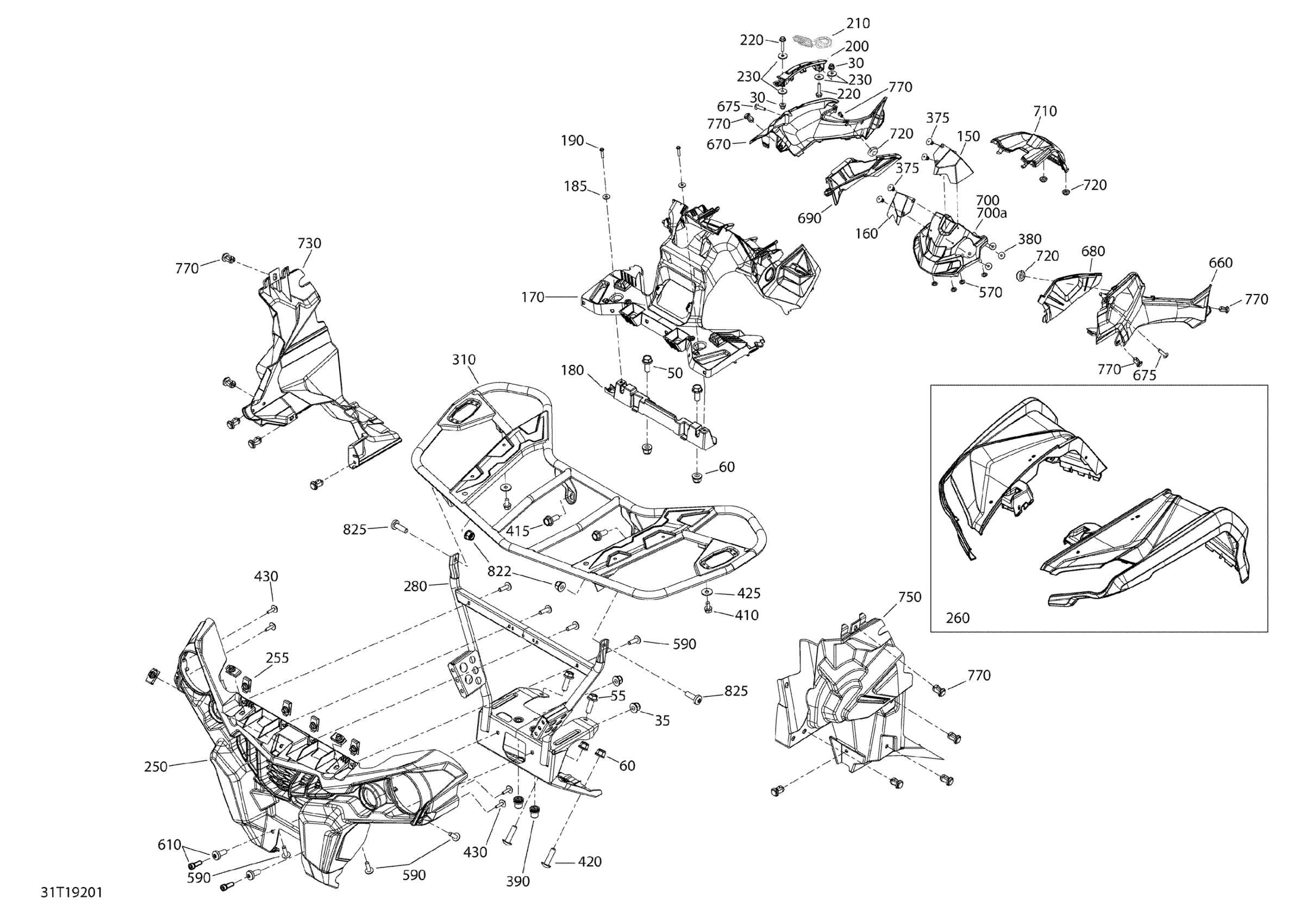

Can-Am Outlander 6X6 - 450 EFI - T3, 2019 Body And Accessories 6X6 - 450 EFI - Squadron Green - Front Diagram

#

Description
Price

30

Flange Elastic Nut M6

233261434

$4.15

35

Hex. Flange Elastic Nut M8

233281434

$2.00

50

Hex. Flange Screw M8 X 20

207682044

$1.06

55

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.63

60

Hex. Flange Elastic Nut M8

233281434

$2.00

150

LH Air Deflector

705006134

$23.85

160

RH Air Deflector

705006135

$22.36

170

Console Support Ass'y | Model-Europe/International

715006101

$52.21

180

Console Support Insert

705010406

$12.73

185

Flat Washer M6, Stainless

234062600

$0.73

190

Hex. Flange Screw K50 X 2.24 X 25

241152540

$4.15

200

Shifter Gate

715006171

$39.52

210

Shiftgate Trim | Europe

705005003

$7.73

220

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

230

Flat Washer

224061201

$1.27

250

Front Facia | Model-Europe

705009335

$89.52

255

Panel Nut M6 X 1.0

250100198

$1.99

260

Squadron Green Front Fender

715006157

$184.30

280

Front Frame

705017337

$236.54

310

Black, Front Luggage Rack

705006887

$217.13

375

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

380

Washer

517124300

$0.18

390

Insert Half Hex Body M8 x 1.25

293450307

$1.97

410

Hex. Flange Screw M6 X 12

210261250

$1.79

415

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

420

Torx Screw M8 X 30

250000886

$2.00

425

Stainless Steel Flat Washer

234062670

$2.00

430

Screw M4 X 16

250000725

$3.30

570

Push Nut

732610072

$1.97

590

Torx Screw M6 X 20

250000722

$1.54

610

Socket Screw M10 x 30 | XT

205003044

$3.00

610

Hex. Screw M8 X 20

236282054

$1.40

660

Squadron Green, LH Lateral Panel | Green Model

705009760

$67.13

670

Squadron Green, RH Lateral Panel | Green Model

705009764

$67.13

675

Phillips Screw K40 X 16

250000723

$0.93

680

Deflector_Body Panel Kit

715007008

$49.97

690

Engine Cover

705003444

$18.63

700

Gauge Support | Includes 700 to 700a

705012572

$40.27

710

Dash Kit | Europe, Int'l

715002783

$58.18

720

Grommet

705003264

$3.94

730

RH Front Wheel Arch Protector

705017023

$26.09

750

LH Front Wheel Arch Protector

705017022

$26.09

770

Tuflok Plastic Rivet

293150230

$1.39

822

Elastic Flange Nut M8

233281464

$0.96

825

Pan Torx Screw M8 X 25

250000898

$2.00
