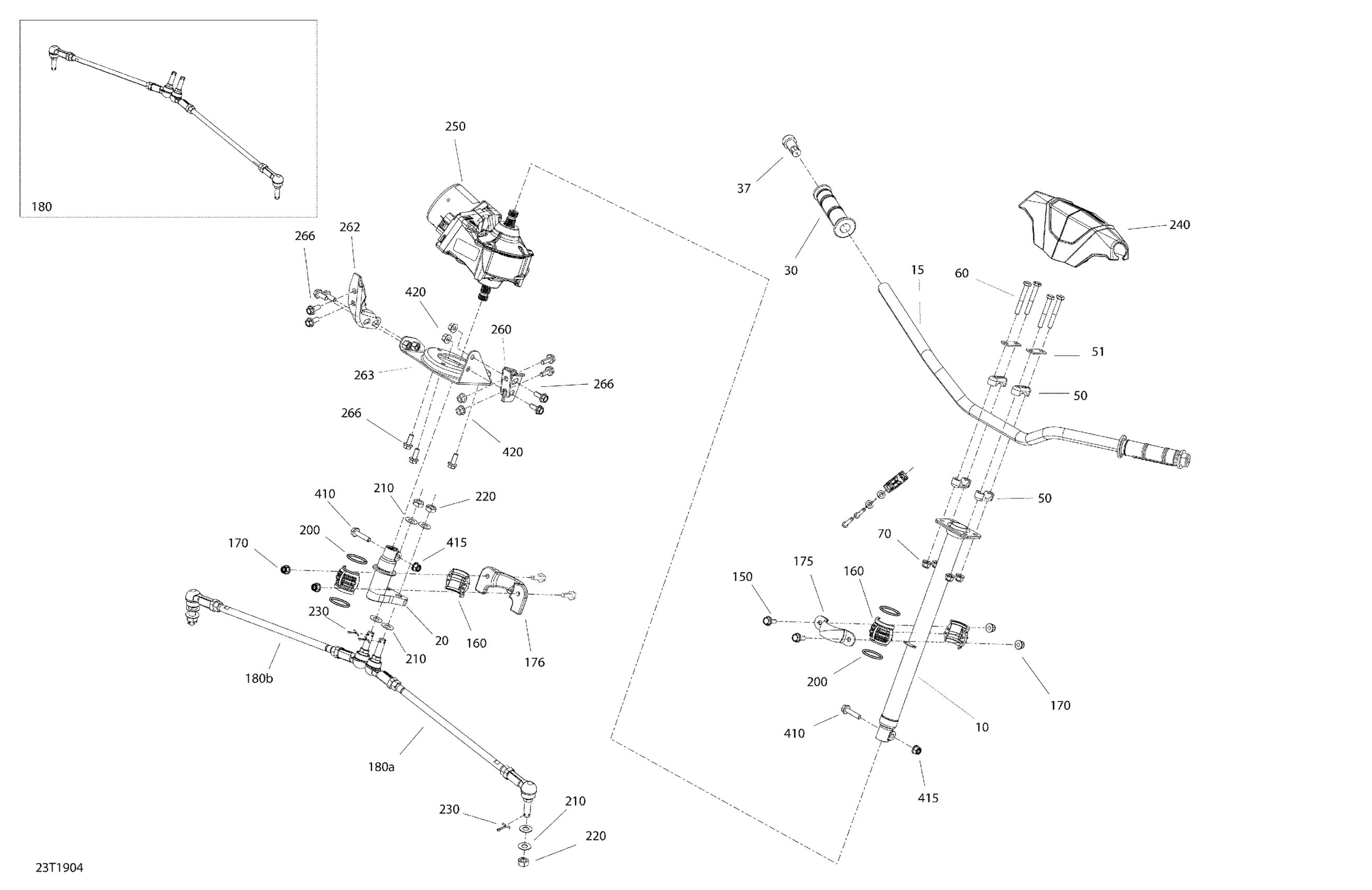

Can-Am Outlander 6X6 - 450 EFI - T3, 2019 Steering 6X6 - 450 EFI - STD Diagram

Description

Price

Black, Upper Main Tube | Package-STD

709401545

$143.05

Pitman Arm | Package-STD

709401542

$27.66

Black, Handle Bar

709401240

$55.35

Handle Grip

709400493

$14.75

End Piece

709400449

$8.29

Steering Support

709401799

$20.74

Stiffner

709400509

$4.43

Hex. Screw M8 X 60

207086046

$2.30

Hex. Elastic Flange Nut M8

233281416

$1.25

100

Hardened Washer

706200281

$2.34

110

Hex. Flange Elastic Nut M12

250000047

$1.56

150

Hex. Flange Screw M8 X 20

207682044

$0.92

158

Ball Bearing | Package-STD

503190396

$7.12

160

Spherical Half Bushing

709400783

$6.14

165

Spherical Half Bushing | Package-STD

709401370

$5.80

167

Seal

293250177

$7.37

170

Hex. Flange Elastic Nut M8

233281414

$1.14

175

Upper Column Attachment

709400827

$1.00

176

Column Attachment

709401428

$36.12

180

Tie Rod Ass`y | Includes 15 to 17

703501038

$92.28

180a

LH Ball Joint

709402303

$35.35

180b

RH Ball Joint

709402302

$35.35

200

O-Ring

293300068

$5.29

210

Hardened Washer

706200281

$2.34

220

Nut M12

250100099

$1.64

230

Cotter Pin

211400013

$0.32

235

Cotter Pin

250400034

$2.06

240

Cover

709400939

$23.05

1000

Air Deflector Support Kit | X

715001378

$143.54

1020

LH Mirror | Europe

709400406

$36.89

1030

RH Mirror | Europe

709400407

$46.12
