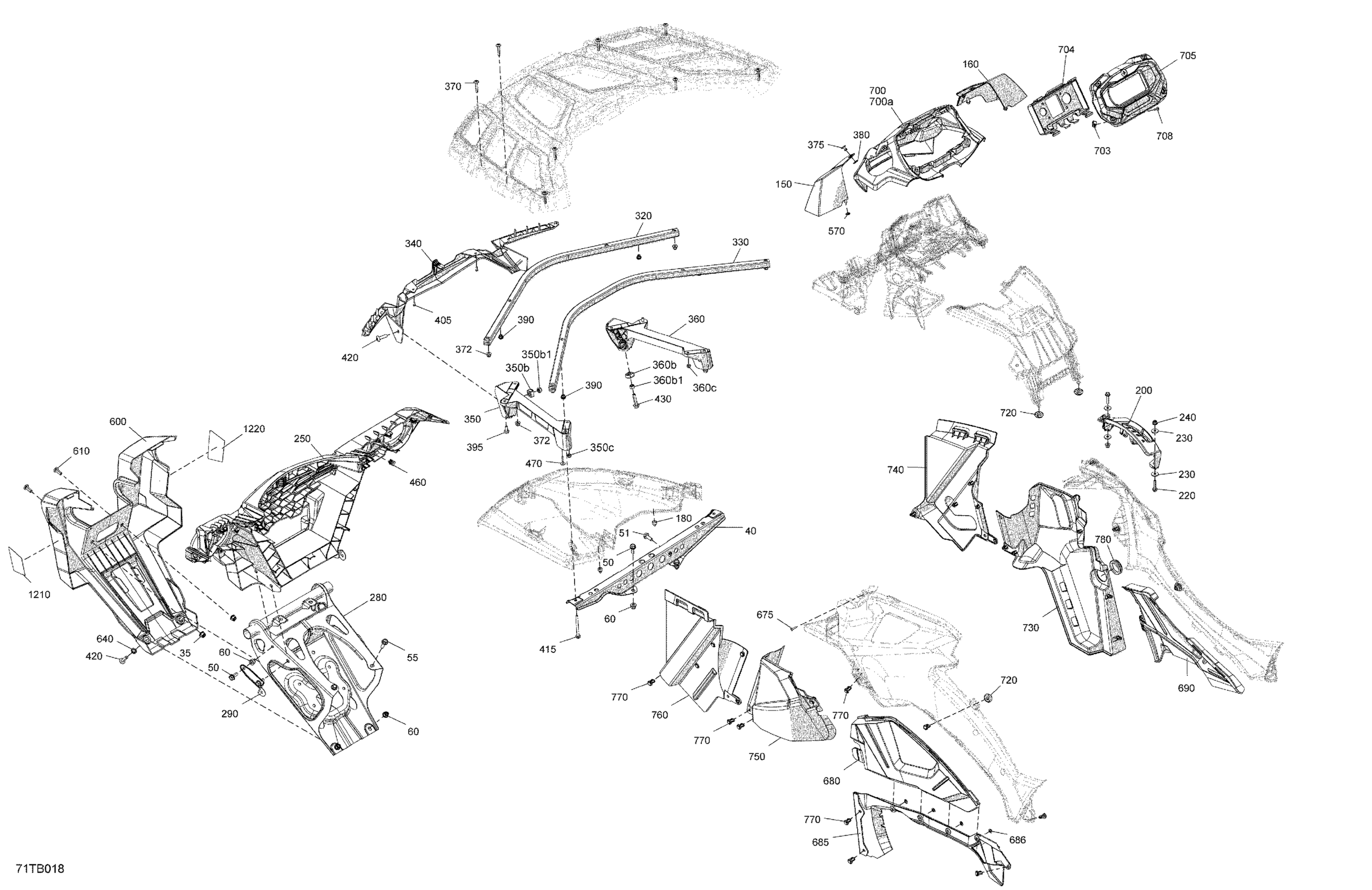

Can-Am Outlander 650 EFI - XU - International, 2022 Body - Front Section Diagram

#

Description
Price

35

Hex. Flange Elastic Nut M8

233281414

$1.47

40

Cargo Rack Center Support

705006812

$61.99

50

Hex. Flange Screw M8 X 20

207682044

$1.15

51

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

55

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

60

Hex. Flange Elastic Nut M8

233281414

$1.47

150

LH Air Deflector

705006134

$26.99

160

RH Air Deflector

705006135

$24.99

180

Rubber Bumper

293830005

$8.09

200

Shift Lever Grille Kit

715008677

$28.99

220

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

230

Flat Washer

224061201

$1.37

240

Flange Elastic Nut M6

233261434

$4.44

250

Fascia

705012822

$119.99

280

Front Bumper Support

705016893

$349.99

290

Lower Fender Support

705004565

$6.89

320

Sectional Bent Tube

705016640

$38.99

330

Sectional Bent Tube

705016641

$42.99

340

Lugage Rack Moulding

705004523

$24.49

350

LH Support Luggage Rack Ass'y | Includes 33 to 35

705011553

$19.99

350b

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

350b1

Hex. Elastic Nut M8 Brass

232581200

$2.22

350c

Hex. Elastic Stop Nut M6

232561600

$1.15

360

RH Support Luggage Rack Ass'y | Includes 36 to 38

705011555

$21.99

360b

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

360b1

Hex. Elastic Nut M8 Brass

232581200

$2.22

360c

Hex. Elastic Stop Nut M6

232561600

$1.15

370

Black, Torx Screw M6 X 35

250000646

$0.98

372

Flange Elastic Nut M6

233261434

$4.44

375

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

380

Washer

517124300

$0.19

390

Insert Half Hex Body M6 x 1.0

250100199

$3.19

395

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

405

Screw K40 X 10

241140060

$1.48

415

Hex. Flange Screw M6x70, Scotch Grip

207567044

$2.11

420

Torx Screw M8 X 30

250000886

$2.11

430

Hex. Flange Screw M8 X 35

207683544

$1.69

460

Edge Clip

517302785

$0.88

470

Plastite Screw Type K-40, M4 X 25

250000101

$3.49

570

Push Nut

732610072

$2.19

600

Front Guard Plate | North America, International

705006299

$51.99

610

Hex. Screw M8 X 20

236282054

$1.47

640

Ring

705004497

$5.19

675

Phillips Screw K40 X 16

250000723

$0.98

680

Deflector Body Panel Kit

715007294

$55.99

685

Deflector Body Panel

705014061

$43.99

686

Push Nut

732610072

$2.19

690

Engine Cover

705003444

$22.99

700

Gauge Support

705013983

$44.99

700a

Gauge Support

705013984

$19.99

703

Extruded Panel Nut M4 X 0.7

250100143

$8.49

704

Interior Gauge Support

705015548

$6.19

705

Gauge Trim

705015547

$22.49

708

Torx Head Screw M4 X 16

250000797

$2.09

720

Grommet

705003264

$4.09

730

RH Wheel Arch Protector

705013925

$19.04

740

RH Front Inner Fender

705011463

$18.49

750

LH Wheel Arch Protector

705013924

$19.04

760

LH Front Wheel Arch Protector

705017001

$16.85

770

Tuflok Plastic Rivet

293150230

$1.47

780

Rubber Cover

293250242

$6.99

1210

LH Front Side Reflector | North America, International

704902865

$13.49

1220

RH Front Side Reflector | North America, International

704902866

$13.49
