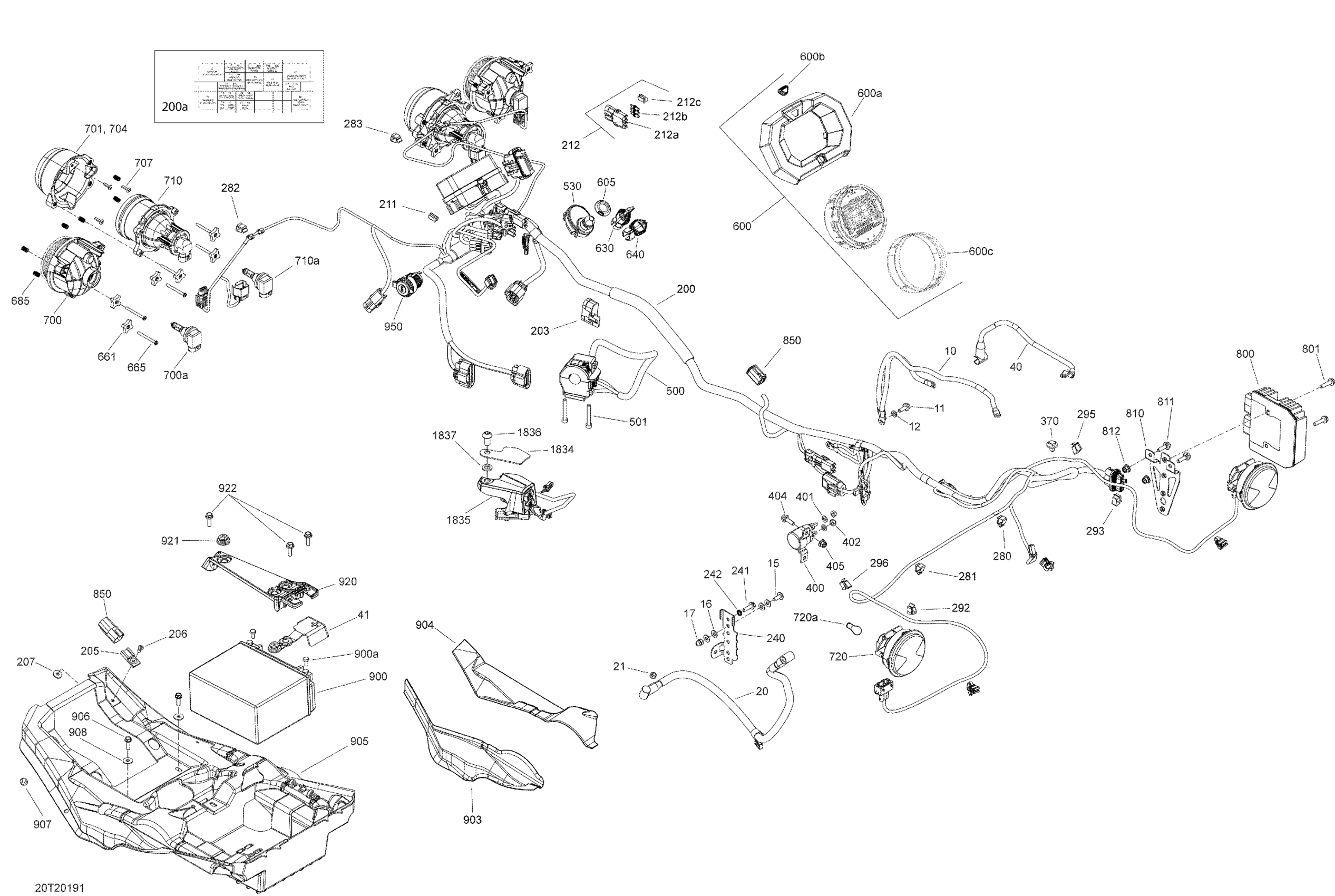

Can-Am Outlander 650 EFI - STD_DPS_XT_HUNTING - 2020 Electrical System Diagram

#

Description
Price

10

Ground Cable

710004382

$17.88

11

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

12

Lock Washer Helical M6

234161601

$1.06

15

Torx Head Screw M6 X 16

250000717

$2.00

16

Flat Washer

224061121

$0.51

17

Domed Nut M6

232361493

$2.03

20

Positive Cable

710004377

$24.60

21

Elastic Stop Nut M6

232561414

$1.78

40

Positive Cable

710004376

$43.25

41

Battery Cable Cap

710006729

$6.72

200

Main Wiring Harness

710007175

$886.54

200a

Logo Fuse Relay

710006657

$12.79

203

DPS Connector Cap | Not Shown

710005760

$14.34

205

Clip

270000141

$9.57

206

Pop Rivet 3/16"

390402300

$0.73

207

Washer | DS 650 X

391301600

$0.46

211

Clip

710000992

$3.88

212

Connector Ass'y | STD / Includes 7 to 10

710000917

$11.81

212a

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.31

212b

Wire Seal

278000216

$2.93

212c

Clip

710000992

$3.88

240

Connector Bracket

710004118

$5.04

241

Hex. Flange Screw M6 X 20

210262040

$2.00

242

External Serrated Lock Washer 6 mm

234461608

$1.06

280

Clip

414227300

$1.40

281

Clip

414227300

$1.40

282

Clip

414227300

$1.40

283

Clip

414227300

$1.40

292

Clip

414227300

$1.40

293

Clip

414227300

$1.40

295

Clip

414227300

$1.40

296

Clip

414227300

$1.40

370

Mount Dart

293730040

$0.99

400

Starter Relay

710007777

$45.49

401

Lock Washer Helical M6

234161601

$1.06

402

Elastic Stop Nut M6

232561414

$1.78

404

Hex. Flange Screw M6 X 20

207662054

$0.96

405

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

500

Multi-Function Handle | Except Model Europe, Except Model STD

710005070

$74.60

500

Multi-Function Handle | Except Model Europe, Except T3

710005072

$58.93

501

Socket Head Screw M5 X 35

205053588

$1.79

530

Terminal Dess One-Wire | Except Model Europe

515178840

$77.58

600

Speedometer Ass'y | Includes 600 to 600c

710005599

$295.49

600a

Trim Ring

710002092

$8.73

600b

Button

710001473

$11.81

600c

Lens

415129320

$22.36

605

Safety Nut (DESS Switch)

278002963

$3.12

630

Green Key RFID | Except Model Europe, Except T3

710005232

$53.70

640

Grey Key RFID | Except Model Europe, Except T3

710004964

$53.70

661

Handle

572106600

$9.03

665

Hex. Screw K40 X 45

250000718

$2.00

685

Spring

517168600

$6.70

700

Low Beam | Includes 54 to 55

710006177

$108.18

700a

Bulb 12V 55W

715900141

$38.78

701

RH High Front Housing

710002291

$25.34

704

LH High Front Housing

710002292

$20.12

707

Phillips Screw K40 X 16

250000723

$0.93

710

High Beam Ass'y | Includes 11 to 12

710002525

$108.18

710a

Halogen Bulb

415129249

$38.78

720

Tail Light Ass'y | Includes 32 to 33

710001645

$79.07

720a

Bulb

520000758

$8.60

800

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$132.99

800

Voltage Regulator

710005842

$183.55

801

Hex. Flange Forming Screw M6 X 25

210262550

$1.88

810

Rectifier Support

710001752

$6.90

811

Hex. Flange Screw M6 X 20

207662044

$1.91

812

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

850

Housing

710003006

$8.31

900

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$142.45

900a

Battery Bolt Kit

250000282

$3.39

903

Heat Shield

710006532

$16.39

904

Heat Shield

710006533

$27.58

905

Battery Support

710008370

$41.76

906

Hexagonal Head Screw

210262050

$2.00

907

Rubber Bumper

293830005

$6.12

908

Stainless Steel Flat Washer

234062670

$2.00

920

Retaining Plate

710009129

$7.09

921

Stopper Rubber

705014429

$6.09

922

Hex. Flange Screw M6 X 20

207662054

$0.96

950

Hex. Flange Screw M6 X 20

207662054

$0.96

1834

Top Plate

715004008

$19.37

1835

Multifonction Housing Ass'y

710004990

$138.78

1836

Screw M10 X1.25 X 20 BHCS S.Grip

710005908

$8.67

1837

Washer

503192496

$0.73
