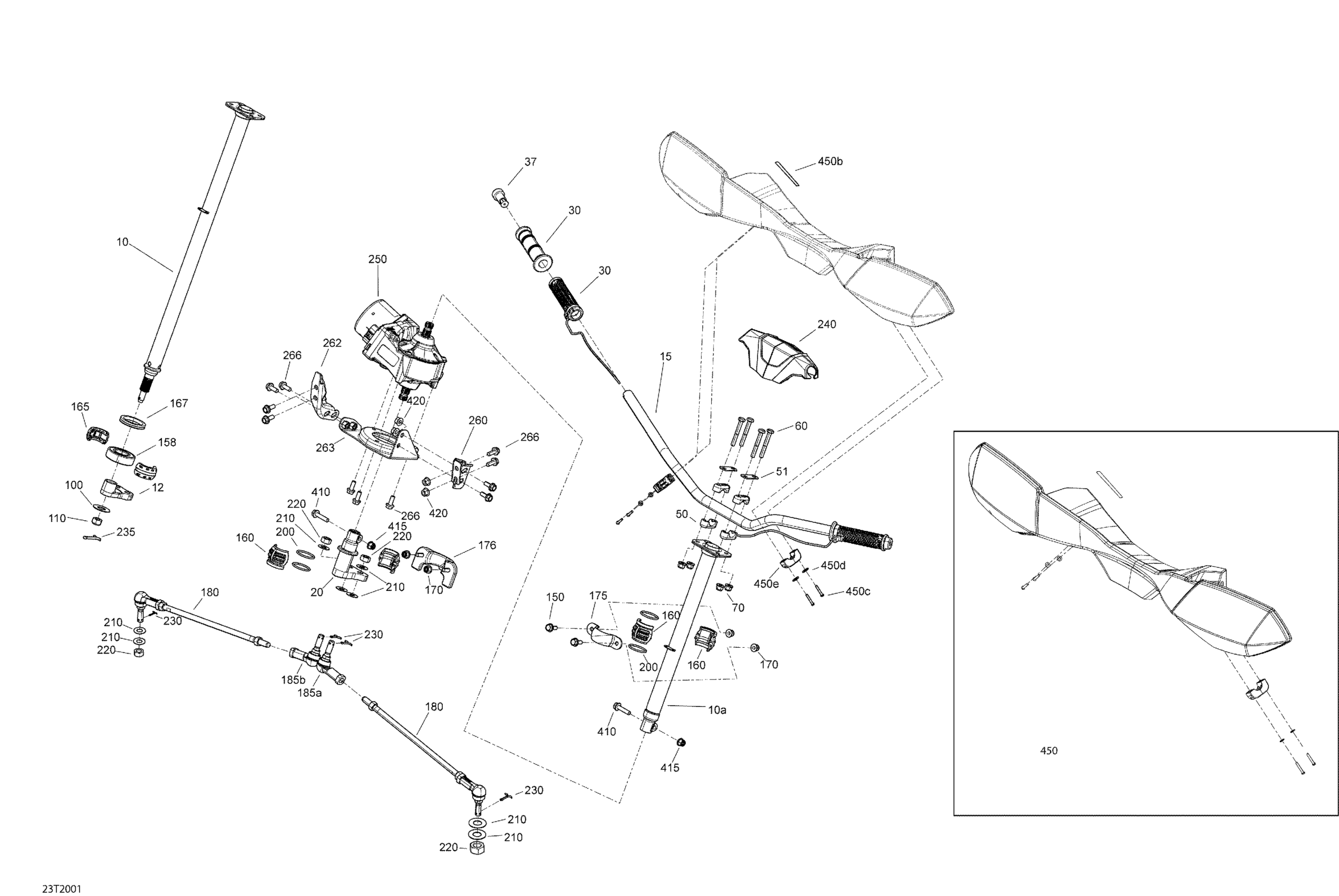

Can-Am Outlander 450 EFI - 2020 Steering Diagram

Black, Upper Main Tube | Package-STD

709401545

$132.81

Main Tube Kit | Model With DPS

703501108

$61.16

Pitman Arm | Package-STD

709401542

$26.09

Black, Handle Bar

709401240

$52.96

Pitman Arm | Model With DPS Except XMR

703501160

$39.52

Handle Grip

709400493

$13.82

Heated Hand Grip With Connector

710005038

$55.19

End Piece

709400449

$7.57

Steering Support

709401799

$20.12

Stiffner

709400509

$4.30

Hex. Screw M8 X 60

207086046

$2.64

Hex. Elastic Flange Nut M8

233281416

$1.43

Hardened Washer

706200281

$2.69

Hex. Flange Elastic Nut M12

250000047

$1.79

Hex. Flange Screw M8 X 20

207682044

$1.06

Hex. Flange Screw M8 X 25

207682534

$1.03

Ball Bearing | Package-STD

503190396

$8.18

Spherical Half Bushing

709400783

$5.96

Spherical Half Bushing | Package-STD

709401370

$5.63

Seal

293250177

$6.49

Hex. Flange Elastic Nut M8

233281414

$1.31

Upper Column Attachment

709400827

$0.97

Column Attachment

709401428

$35.04

Tie Rod Ass`y | Includes 15 to 17

703501038

$89.52

LH Ball Joint

709402303

$34.30

RH Ball Joint

709402302

$34.30

O-Ring

293300068

$6.07

Hardened Washer

706200281

$2.69

Nut M12

250100099

$1.88

Cotter Pin

211400013

$0.31

Cotter Pin

250400034

$2.00

Cover

709400939

$22.36

Power Steering Ass'y | Model With DPS

709403187

$1,131.31

LH Power Steering Bracket | Model With DPS

709402184

$14.90

RH Bracket | Model With DPS

709402185

$25.34

Power Steering Support | Model With DPS

709401743

$16.39

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

Hex. Flange Screw M8 X 35

250000986

$2.00

Hex. Elastic Flange Nut M8

233281416

$1.43

Hex. Flange Nut M8

233081416

$1.87

Handle Guard Ass'y | Includes 450 to 450f

703100813

$91.01

DPS Decal

704902966

$10.55

Hex. Flange Screw K40 X 25

241142560

$2.49

Flat Washer | XT

211200035

$0.52

U-Clamp | XT

517303264

$11.09
