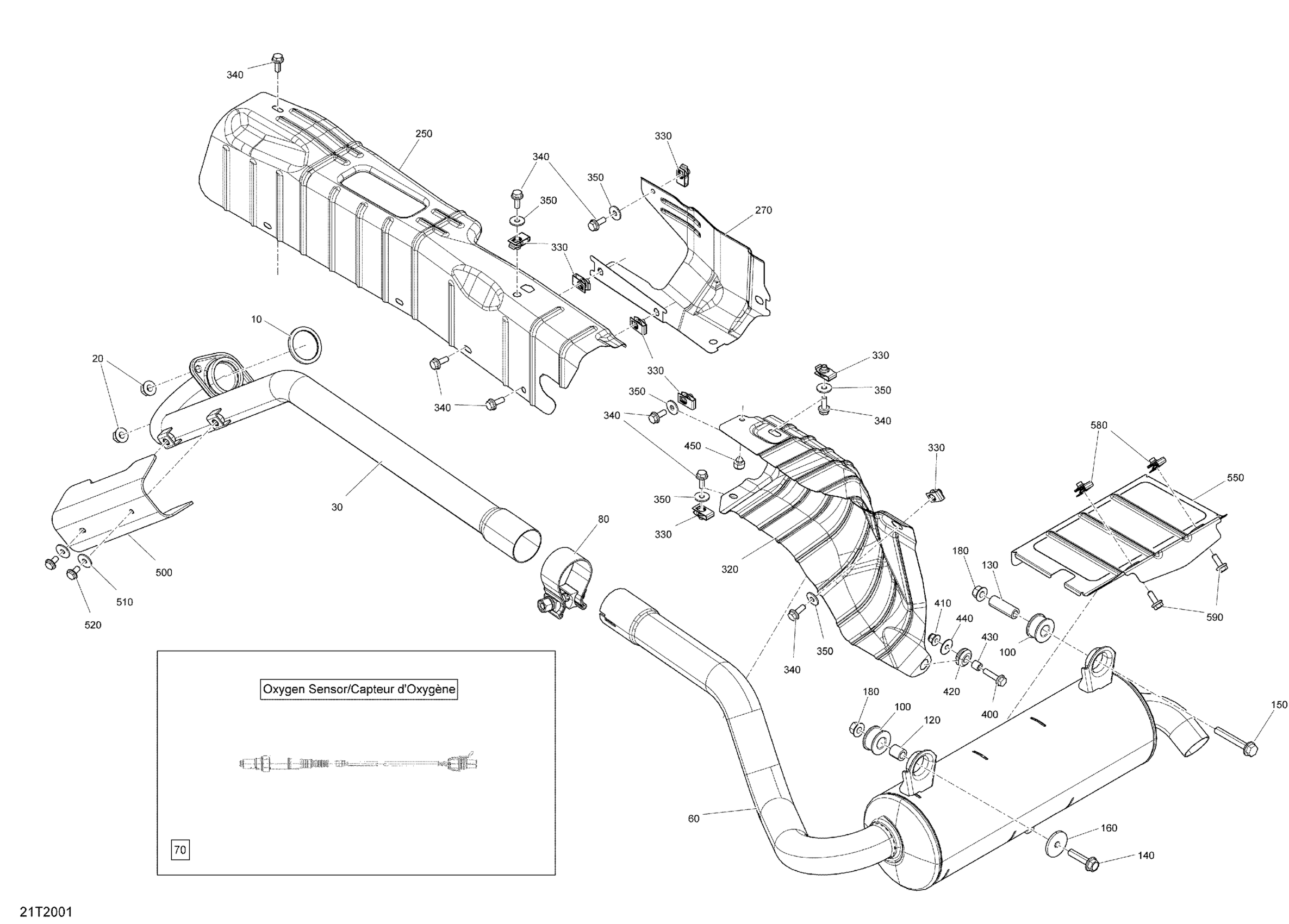

Can-Am Outlander 450 EFI - 2020 Exhaust Diagram

#

Description
Price

10

Gasket

707600317

$10.21

20

Hex. Flange Nut M8

233081416

$1.87

30

Front Head Pipe

707601358

$165.64

60

Exhaust Muffler

707602219

$788.78

70

Oxygen Sensor

707600872

$132.81

80

Exhaust Pipe Clamp

293650228

$11.06

100

Vibration Damper

707603323

$10.88

120

Spacer Bushing

293900116

$2.51

130

Bushing

293900115

$1.67

140

Hex. Flange Screw M8 X 35

207683544

$1.60

150

Hex. Flange Screw M8 X 55

207685544

$5.06

160

Flat Washer M8

250200158

$2.00

180

Hex. Flange Nut M8

233081416

$1.87

250

Heat Shield

707603724

$11.51

270

Protector

707601484

$11.81

320

Protector

707601425

$17.88

330

Panel Nut M6 X 1.0

250100198

$1.99

340

Hex. Flange Screw M6 X 16

207661644

$0.70

350

Flat Washer 6 mm

234062410

$0.73

400

Hex. Flange Screw M6 X 25

207662534

$2.00

410

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

420

Grommet

709000582

$4.25

430

Bushing

293900105

$6.07

440

Flat Washer

224060201

$1.12

450

Rubber Bumper

293830005

$6.12

500

Heat Shield

707601457

$11.51

510

Flat Washer

250200082

$0.40

520

Hex. Flange Screw M6 X 12 S.Grip

250001090

$1.79

550

Protector

707601635

$10.97

580

Panel Nut M6 X 1.0

250100198

$1.99

590

Hex. Flange Screw M6 X 16

207661644

$0.70
