Description

Price

10

Drive Axle Ass'y

705402948

$230.74

15

Drive Axle Ass'y

705403004

$239.97

16

Ball Bearing Ass'y

705403522

$46.12

17

Snap Ring

293370098

$3.11

18

Hex. Flange Screw M10 X 20

207502046

$1.74

40

Performance CV Axle - Front Right | Except Model X3 Xrs

705402098

$263.82

40a

CV Joint

715900452

$253.82

40b

RH Plunging Joint

715900454

$249.20

40c

Circlip Joint | Not shown

705401349

$5.38

40d

Boot Kit, Wheel Side

705401354

$41.51

40e

Oetiker Clamp, Large

715900260

$7.84

40f

Oetiker Clamp, Small

715900261

$4.39

50

Performance CV Axle - Front Left | Except Model X3 Xrs

705402097

$263.82

50a

CV Joint

715900452

$253.82

50b

LH Plunging Joint

715900453

$249.20

50c

Circlip Joint | Not shown

705401349

$5.38

50d

Boot Kit, Wheel Side

705401354

$41.51

50e

Oetiker Clamp, Large

715900260

$7.84

50f

Oetiker Clamp, Small

715900261

$4.39

60

Bearing_Ball

293350141

$72.28

80

Circlip

293370102

$3.98

100

Hex. Flange Screw M10 X 20

207502046

$1.74

110

Conical Spring Washer 10 mm

234201474

$1.39

130

Wheel Hub

705502122

$115.35

140

Wheel Stud M12X1.5

250300625

$3.85

150

Conical Spring Washer M20

250200170

$11.00

160

Castle Nut M20

250100193

$6.66

170

Cotter Pin

250400084

$1.79

175

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

185

Open Clamp

518321570

$6.03

186

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

320

Hex. Flange Screw M8 X 42

250001050

$0.95

325

Hex. Elastic Flange Nut M8

233281416

$1.25

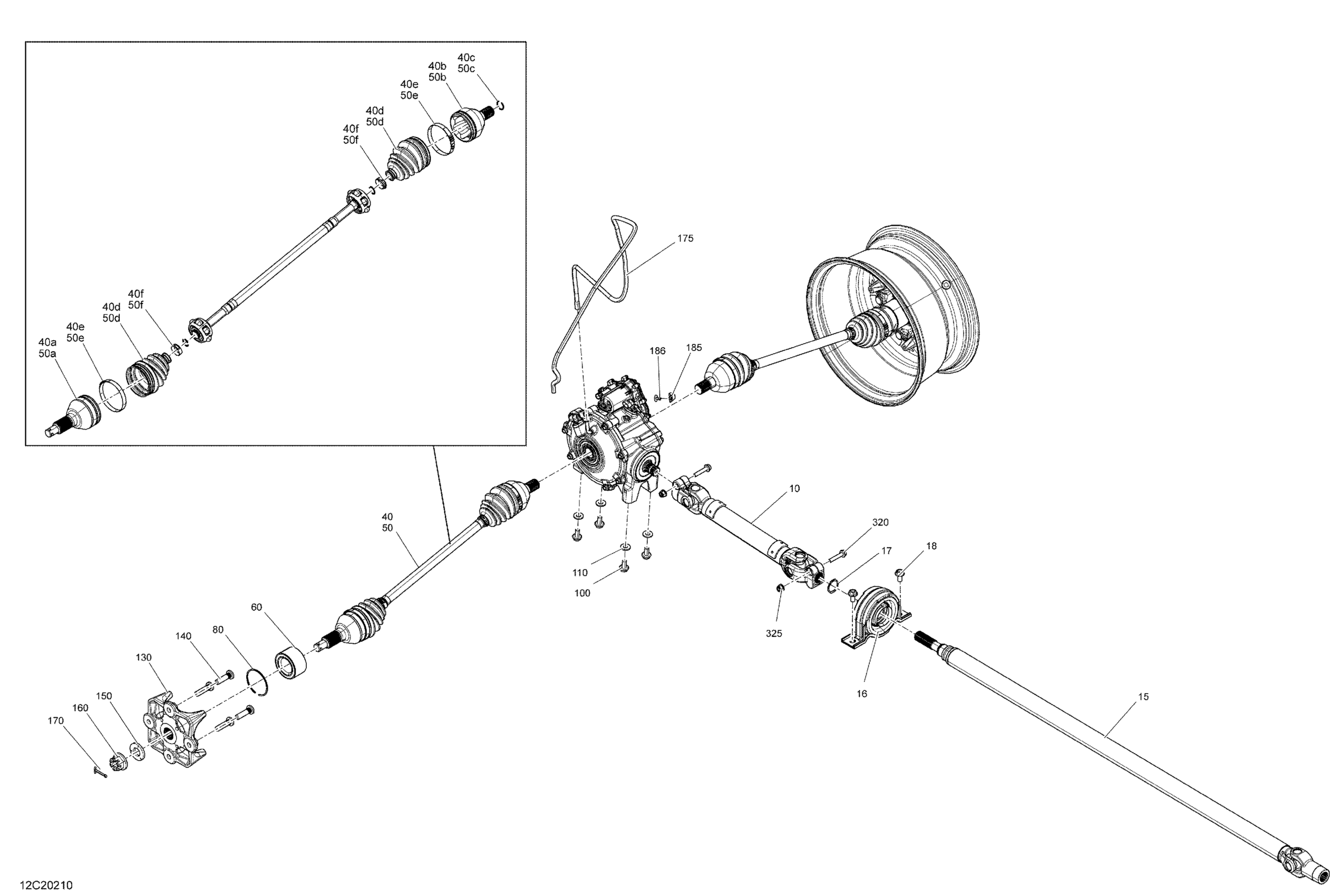

Can-Am Maverick Turbo - STD - 2020 Front Drive - Common Parts Diagram
