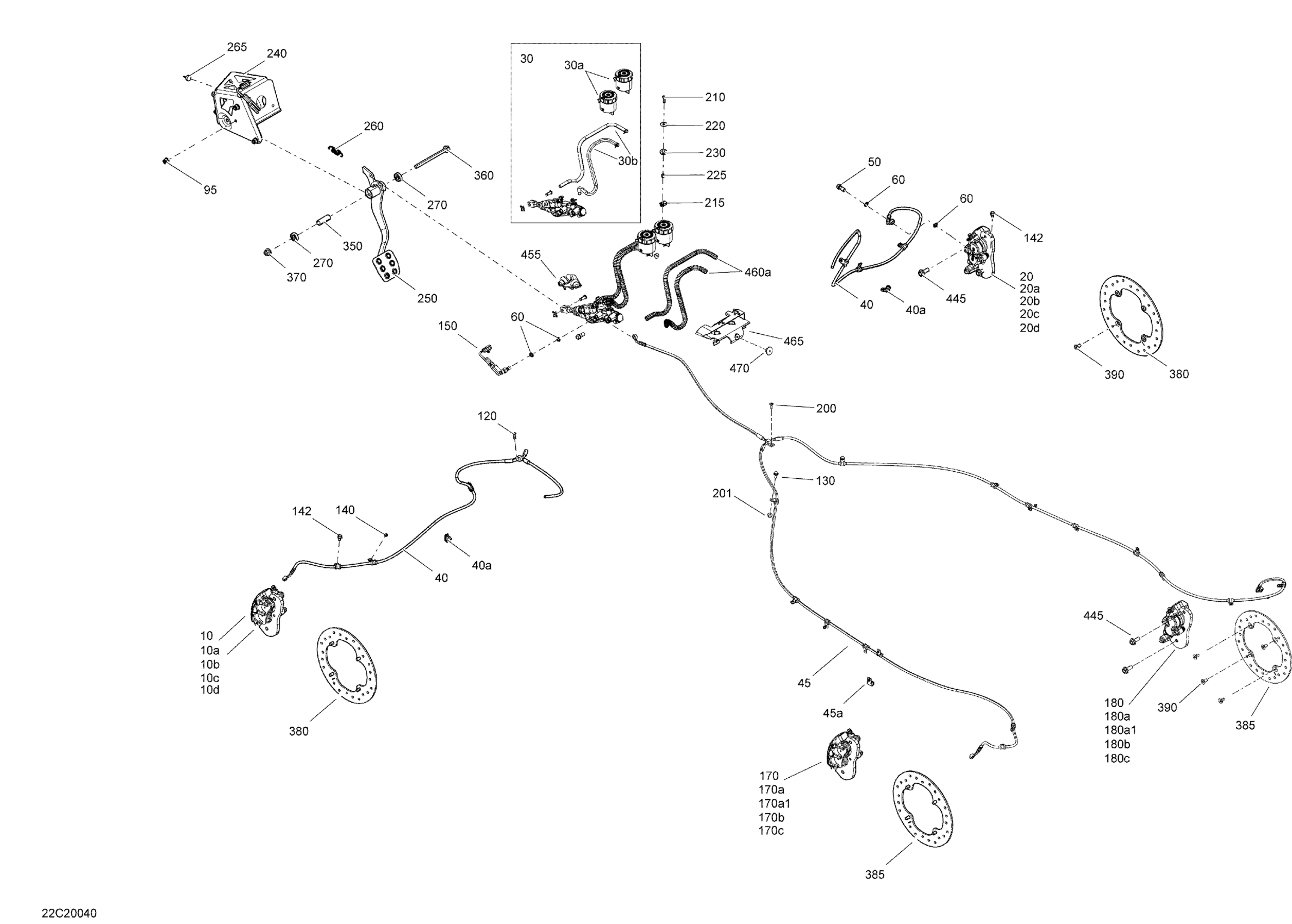

Can-Am Maverick Turbo - STD - 2020 Brakes Diagram

#

Description
Price

10

LH Front Brake Caliper | Includes 10 to 10c

705602180

$223.85

10a

LH Brake Pads

715900379

$108.18

10b

Pin Kit | Packages STD & PRO

715900384

$10.30

10c

Bleeding Screw

705601017

$5.90

10d

Cap Spring Kit

715900385

$16.39

20

RH Front Brake Caliper | RH Front

705601888

$223.85

20a

RH Brake Pads

715900380

$108.18

20b

Pin Kit | Packages STD & PRO

715900384

$10.30

20c

Bleeding Screw

705601017

$5.90

20d

Cap Spring Kit

715900385

$16.39

30

Master Cylinder

705601863

$256.69

30a

Oil Tank

705601020

$35.79

30b

Oil Housing Hose

705601019

$14.43

40

Front Flexible Hose | Includes 40 to 40a

705601492

$141.76

40a

Clamp

293650256

$5.00

45

Rear Flexible Hose | Includes 45 to 45a

705601493

$194.75

45a

Clamp

293650256

$5.00

50

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.90

60

Copper Washer

705601628

$4.21

95

Hex. Elastic Flange Nut M8

233281416

$1.43

120

Torx Screw M6 X 16 | Not shown

235661644

$5.04

130

Hex. Flange Screw M6 X 16

207661644

$0.70

140

Pop Rivet 3/16"

390402200

$0.30

142

Hex. Flange Screw M6 X 10

210261040

$1.43

150

Brake Switch

705601250

$55.19

170

LH Rear Brake Caliper | Includes 170 to 170d

705602186

$288.03

170a

LH Brake Pads

715900386

$108.18

170a1

Pin Kit | Packages STD & PRO

715900384

$10.30

170a1

Pin Kit | Packages STD & PRO

715900384

$10.30

170b

Bleeding Screw

705601017

$5.90

170c

Cap Spring Kit

715900385

$16.39

180

RH Rear Brake Caliper | Includes 170 to 170d

705601892

$288.03

180a

RH Brake Pads

715900387

$108.18

180a1

Pin Kit | Packages STD & PRO

715900384

$10.30

180a1

Pin Kit | Packages STD & PRO

715900384

$10.30

180b

Bleeding Screw

705601017

$5.90

180c

Cap Spring Kit

715900385

$16.39

200

Torx Screw K50 X 16

250000720

$1.60

201

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

210

Torx Screw M5 X 25

250000762

$2.00

215

Panel Nut M5 X 0.8

250000958

$4.00

220

Flat Washer

250200040

$1.76

225

Bushing

293900112

$9.30

230

Grommet

414036300

$2.55

240

Brake Support Plate Ass'y

705207621

$46.99

250

Brake Pedal

705601453

$51.46

260

Brake Pedal Spring

705600792

$8.42

265

Rubber Stopper

708000759

$4.15

270

Bearing

705600458

$6.82

350

Bushing | RT

705601275

$13.51

360

Hex. Flange Screw, M10 X 130

230603046

$6.99

370

Hex. Flange Elastic Nut M10

233201436

$2.00

380

Brake Disc

705601533

$110.42

385

Brake Disc

705601376

$111.16

390

Torx Screw M8 X 16, Scotch Grip

235381646

$2.40

445

Hex. Flange Screw M10 X 25

207502546

$2.00

455

Hose Support

705601750

$4.19

460a

Tubing 10 MM 1000MM Long

219704407

$2.52

465

Oil Tank Support

705601815

$4.81

470

Pop Rivet 3/16"

293150103

$0.52
