Description

Price

90

Hazard Lights Switch

710006107

$18.43

95

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

150

Switch 2X4

710005489

$32.28

160

Differential Lock Switch

710005470

$46.12

180

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

180

Switch HDC

710006553

$23.05

200

Multifonction Switch

710006650

$87.66

210

Inter Allumage *Ignition

710007870

$55.35

215

Key Switch Protector

710005739

$2.69

250

Housing Support

710005672

$8.05

300

Main Wiring Harness | BASE

710006764

$876.89

300

Main Wiring Harness

710006766

$876.89

304

Screw PT Type K-50 X 16

250000959

$1.74

306

Screw PT Type K-50 X 16

250000959

$1.74

320

Trottle Pedal Harness

710005929

$226.12

321

Screw PT Type K-50 X 16

250000959

$1.74

340

Front Wiring Harness

710006218

$101.51

352

Position Light Harness

710005676

$13.52

600

Full Size Multifunction Gauge

710006854

$341.51

700

LH Headlamp | Includes 700 to 700a

710008230

$189.20

700a

Bulb 12V 55W

715900141

$41.51

705

LH Fascia Trim

705011485

$40.74

710

RH Headlamp | Includes 710 to 710a

710008231

$189.20

710a

Bulb 12V 55W

715900141

$41.51

711

RH Fascia Trim

705011486

$40.74

712

Hex. Flange Screw K50 X 2.24 X 25

241152540

$3.61

713

Shoulder Bushing

710004749

$2.75

714

Grommet

709000582

$4.38

715

Torx Screw K50 X 16

250000720

$1.39

716

Stainless Steel Flat Washer

234062670

$1.74

717

Ajustment Screw

710005837

$6.45

718

Adjustment Guide

710005097

$8.45

719

O-Ring

293300192

$3.85

1100

12V Power Outlet

710005374

$27.27

1500

Turn Signal | Europe

710001721

$198.43

1501

Hex. Forming Screw M5 X 16

210251650

$0.92

1502

Lock Washer 5 mm | Europe

234151401

$0.46

1503

Flasher Decal | Europe

704902614

$16.89

1550

Flasher Unit

710003239

$78.43

1580

Horn

710004791

$37.66

1581

Torx Truss Screw M6 X 16

250000721

$1.39

1582

Hex. Flange Elastic Nut M6

233261494

$1.26

1585

Horn Bracket

710006055

$60.74

1590

Flasher | Europe

710002964

$35.35

1591

Torx Truss Screw M6 X 16

250000721

$1.39

1592

Flat Washer 6 mm

234061410

$1.04

1600

Day Light | Europe

710001726

$36.89

1650

Support Connector

710006056

$5.00

1651

Screw PT Type K-50 X 16

250000959

$1.74

1652

Screw PT Type K-50 X 16

250000959

$1.74

1660

Yaw Rate Sensor

710005658

$166.12

1662

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

1664

Yaw Sensor Support

710006501

$32.28

1680

Speed Sensor

710006981

$78.43

1682

Screw PT Type K-50 X 16

250000959

$1.74

1684

Clip

710001343

$7.09

1690

Sensor Support

705402088

$2.98

1693

RH ABS Harness Support

710006554

$16.89

1694

LH ABS Harness Support

710006555

$16.89

1695

Hex Screw Washer Head M8 X 20

207582054

$2.61

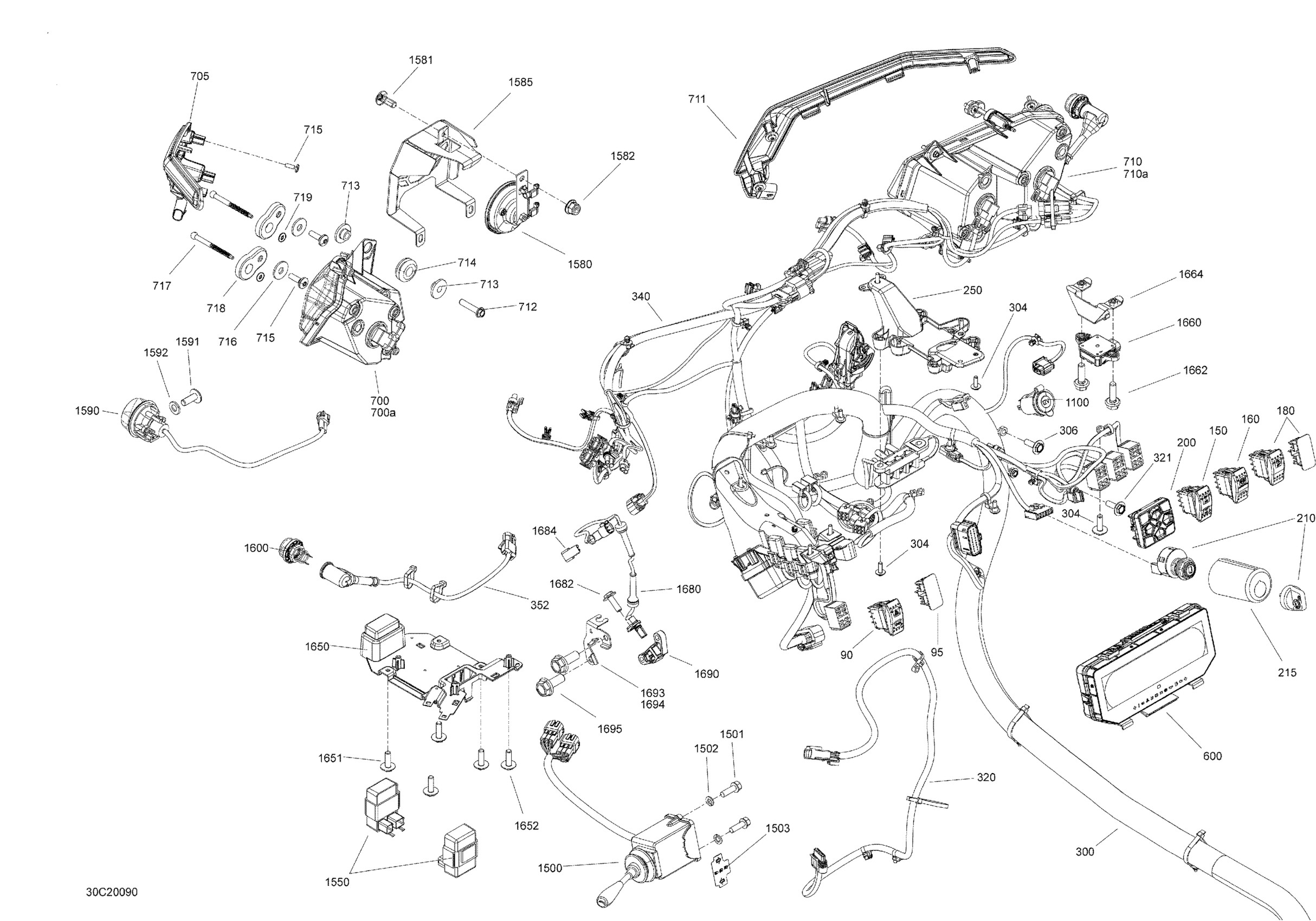

Can-Am Maverick Trail 800 - T Regulation, 2020 Electrical System - Front Diagram
