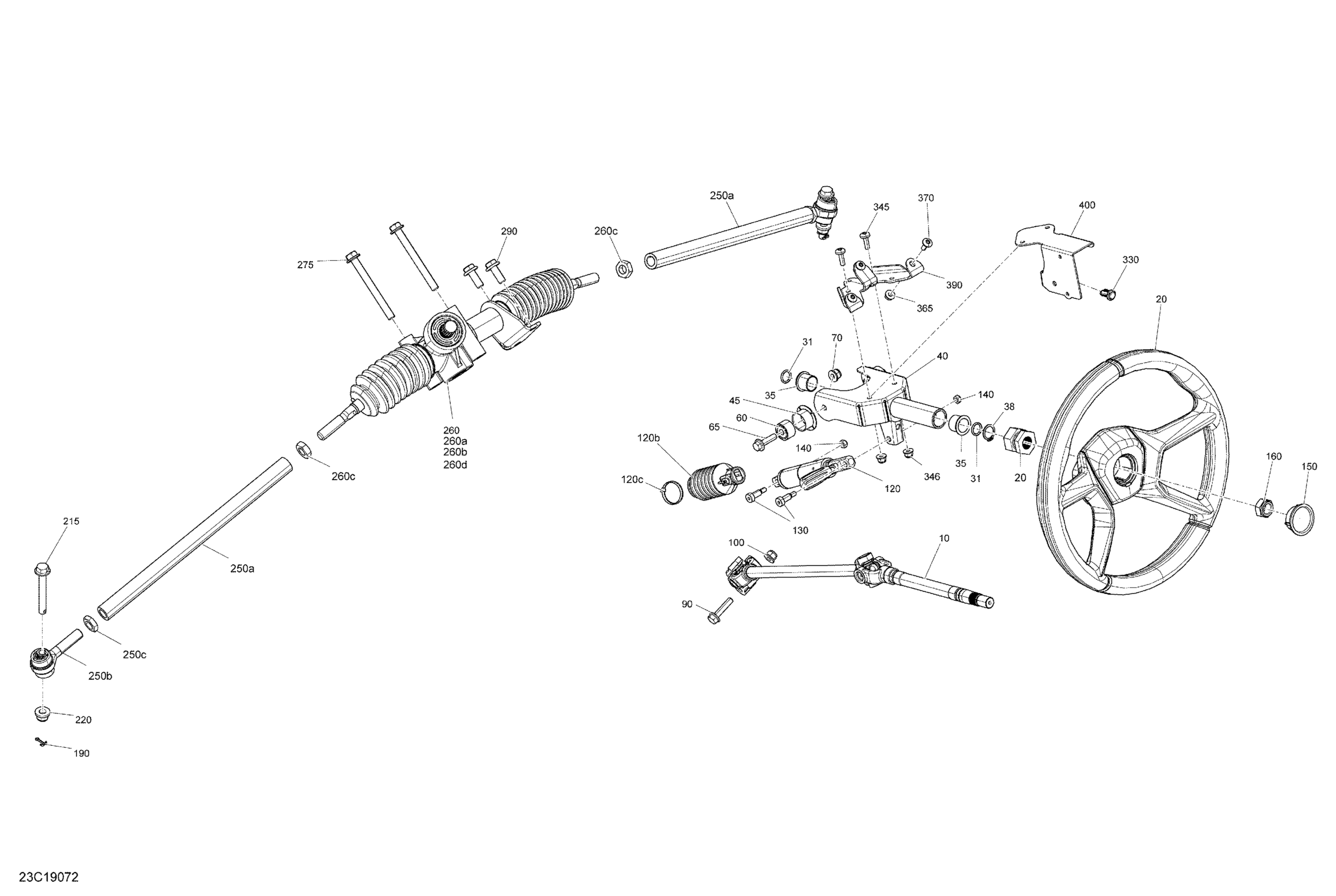

Can-Am Maverick Trail 800 - BASE/DPS - T2B Series, 2019 Steering - Package BASE Diagram

#

Description
Price

10

Steering Column Ass'y

709402616

$177.58

20

Steering Wheel

709401966

$486.54

31

O-Ring

293300144

$3.79

35

Steering Bushing

709402725

$3.07

38

Circlip

293370110

$2.03

40

Steering Support

709401602

$74.60

45

Bushing

709401603

$7.54

60

Bushing

709401604

$4.39

65

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.49

70

Hex. Flange Elastic Nut M8

233281414

$1.31

90

Hex. Flange Screw M8 X 35

250001021

$4.15

100

Hex. Elastic Flange Nut M8

233281416

$1.43

120

Adjustment Cylinder

709402506

$64.90

120b

Boot Tube Side

709401232

$15.64

120c

Tie-Rap 180 mm

414115200

$0.10

130

Socket Head Screw M8 X 16

250000669

$3.00

140

Elastic Stop Nut M6

232561414

$1.78

150

Steering Cap

709401514

$14.37

160

Elastic Lock Nut M16

232511414

$1.88

190

Cotter Pin

211400017

$0.28

215

Screw Hex Cap M10 X 75

250000814

$4.54

220

Hex. Flange Elastic Nut M10

233201436

$2.00

250a

Connection Rod

709401990

$19.37

250b

Ball Joint

709401991

$49.22

250c

Steering Rod Nut

715900238

$1.76

260

Rack And Pinion Steering Ass'y | Includes 260 to 260c

709402451

$433.55

260a

Boot Kit, Pinion Side

715900235

$50.72

260b

Boot Kit, Tube Side

715900236

$50.72

260c

Steering Rod Nut

715900238

$1.76

260d

Tie Rod

715900838

$66.39

275

Hex. Screw M10 X 100, Scotch Grip

230500046

$7.01

290

Hex. Flange Screw M10 X 25

207502546

$2.00

330

Tuflok Plastic Rivet

293150230

$1.39

345

Torx Screw M6 X 16

250000755

$0.82

346

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

365

Hex. Flange Elastic Nut M6

233261494

$1.45

370

Torx Screw M6 X 16

250000755

$0.82

390

Cluster Meter Support

707900737

$14.76

400

Flasher Arm Support

709402187

$27.58
