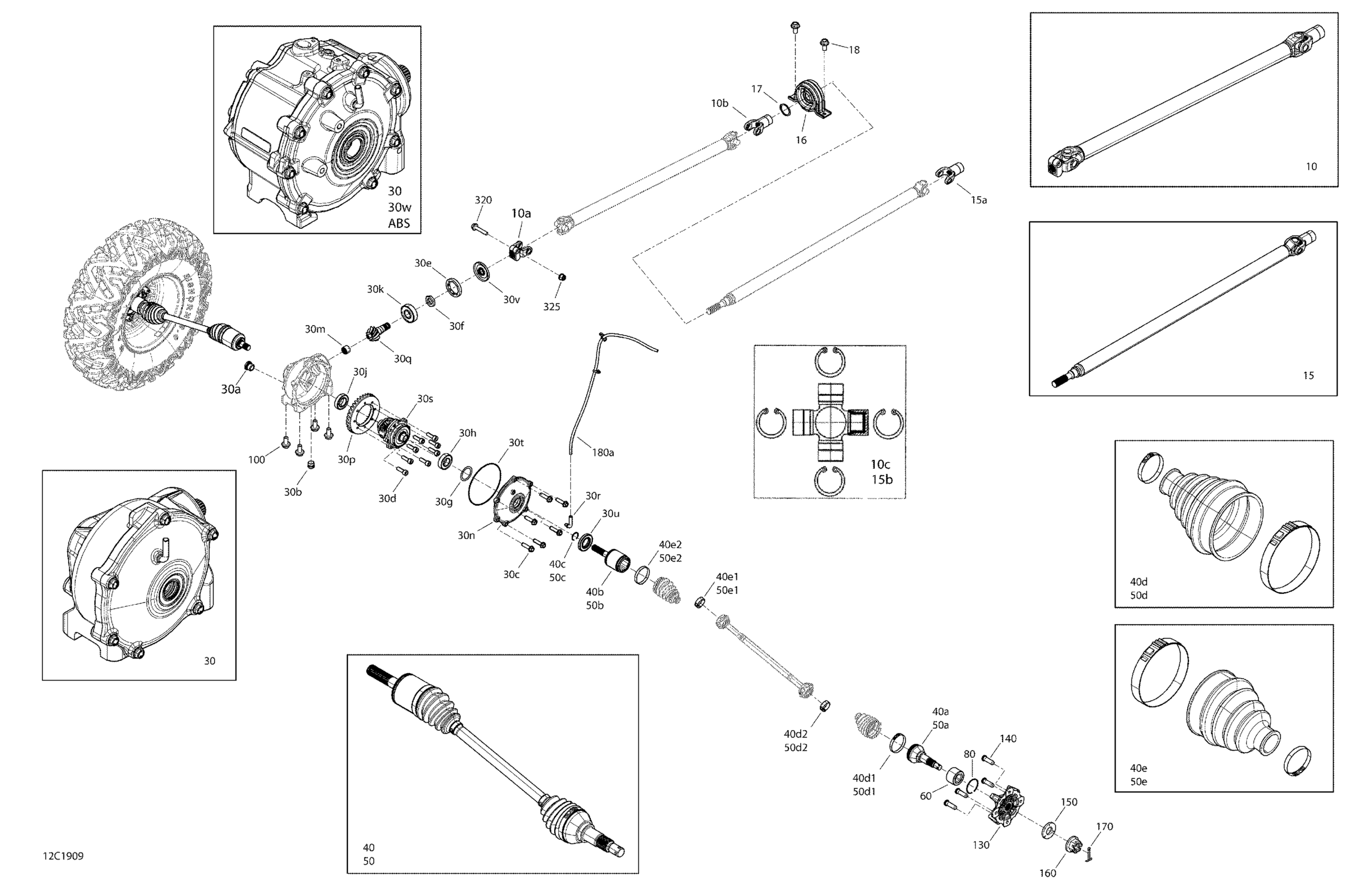

Can-Am Maverick Trail 800 - BASE/DPS - T2B Series, 2019 Front Drive - Package BASE Diagram

#

Description
Price

10

Drive Axle Ass'y | Includes 10 to 10c

705403289

$235.79

10

Drive Axle Ass'y | Includes 10 to 10c

705403289

$235.79

10a

Fixed Yoke

715900400

$55.19

10b

Yoke

715900401

$32.81

10c

J-Joint Cross Kit

715900402

$83.55

15

Drive Axle Ass'y | Includes 15 to 15b

705403290

$235.04

15a

Yoke

715900401

$32.81

15b

J-Joint Cross Kit

715900402

$83.55

16

Ball Bearing Ass'y

705403522

$44.00

17

Snap Ring

293370098

$3.01

18

Hex. Flange Screw M10 X 20

207502046

$2.00

30

Front Differential Ass'y | Includes 30 to 30y

705402995

$1,280.57

30

Front Differential Ass'y | Model With DPS

705402763

$1,582.06

30

Front Differential Ass'y | Includes 30 to 30ak

705402766

$1,226.84

30a

Fill Level Plug

705501889

$18.63

30b

Drain Plug | After May 30, 2014

705501885

$11.93

30c

Bolt

705501886

$6.30

30d

Screw

705402375

$13.16

30e

Nut M75 X 1.5

705401819

$22.36

30f

Nut M27 X 1.5

705401820

$19.37

30g

Shim | 4X4

705401604

$51.46

30h

Ball Bearing

705402847

$44.75

30j

Ball Bearing | 4X4

705401606

$47.73

30k

Ball Bearing

705401821

$29.82

30m

Ball Bearing | After May 30, 2014

705402848

$44.75

30n

Front Cover

705401667

$143.25

30p

Ring Gear 36 Teeth

705402788

$341.76

30q

Pinion 10 th.

705401933

$173.85

30r

Vent Valve

705401935

$13.43

30s

Differential | Base Package

705402377

$1,128.49

30s

Differential

705402376

$1,241.31

30t

Oil Seal iDIA 6.737 oDIA 6.943

705501881

$7.94

30u

Oil Seal

705401836

$6.96

30v

Oil Seal, Triple Lip 25 X 79 X 8

705401827

$17.13

30w

Midle Case

715900643

$290.27

40

RH Front - Premium CV Axle | Includes 40 to 40f2

705402007

$226.84

40

Front - Premium CV Axle | With ABS

705402442

$226.84

40a

JOINT_CV EXT - Call your local BRP dealership

715900440

Unavailable

40a

CV Joint

715900619

Unavailable

40b

RH Plunging Joint

715900441

$256.69

40c

Circlip Joint | Not shown

705401349

$5.10

40c

Circlip

715900569

$5.10

40d

Boot Kit, Wheel Side

705401345

$39.52

40d

Boot Kit, Wheel Side

705401354

$39.52

40d1

Oetiker Clamp

715900282

$5.04

40d1

Oetiker Clamp, Large

715900260

$9.00

40d2

Oetiker Clamp, Small

715900283

$5.04

40d2

Oetiker Clamp, Small

715900261

$5.04

40e

Boot Kit, Différential Side

705401355

$39.52

40e1

Oetiker Clamp, Small

715900261

$5.04

40e2

Oetiker Clamp, Large

715900262

$9.00

40f

O-ring

715900580

$1.97

50

LH Front - Premium CV Axle | Includes 50 to 50f2

705402008

$226.84

50

Front - Premium CV Axle | With ABS

705402442

$226.84

50a

JOINT_CV EXT - Call your local BRP dealership

715900440

Unavailable

50a

CV Joint

715900619

Unavailable

50b

LH Plunging Joint

715900442

$256.69

50c

Circlip Joint | Not shown

705401349

$5.10

50c

Circlip

715900569

$5.10

50d

Boot Kit, Wheel Side

705401345

$39.52

50d

Boot Kit, Wheel Side

705401354

$39.52

50d1

Oetiker Clamp

715900282

$5.04

50d1

Oetiker Clamp, Large

715900260

$9.00

50d2

Oetiker Clamp, Small

715900283

$5.04

50d2

Oetiker Clamp, Small

715900261

$5.04

50e

Boot Kit, Différential Side

705401355

$39.52

50e1

Oetiker Clamp, Small

715900261

$5.04

50e2

Oetiker Clamp, Large

715900262

$9.00

50f

O-ring

715900580

$1.97

60

Ball Bearing

293350150

$50.34

80

Circlip

293370019

$4.68

100

Hex. Flange Screw M10 X 20

207502046

$2.00

130

Wheel Hub

705502338

$108.18

140

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.18

150

Conical Spring Washer M20

250200170

$12.63

160

Castle Nut M20

250100193

$7.64

170

Cotter Pin

250400084

$2.06

180a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$24.60

320

Hex. Flange Screw M8 X 42

250001050

$1.09

325

Hex. Elastic Flange Nut M8

233281416

$1.43
