Description

Price

10

Chassis Ass'y | Includes 10 to 10a2w3

715009353

$2,969.99

10

Chassis Ass'y | Includes 10 to 10a2w3

715009355

Unavailable

10a1a5

Shim

705209479

$3.05

10a1a6

Pop Rivet 3/16"

390402200

$0.26

10a1h5

Shim

705209479

$3.05

10a1h6

Pop Rivet 3/16"

390402200

$0.26

10b

Pop Rivet 3/16"

390402200

$0.26

30

Deep Black, Front Cage Kit | Includes 30 to 30c

715009362

$619.99

30a

Pop Rivet 3/16"

390402200

$0.26

35

Deep Black, Rear Cage Ass'y

715009349

$619.99

37

Deep Black, Rear Cage Extension

705211125

$44.99

38

Insert Half Hex Body M6 x 1.0

250100199

$2.54

47

LH Front Bumper

705206303

$110.74

48

RH Front Bumper

705206308

$110.74

49

Cross Member

705206313

$36.89

50

Deep Black, Front Bumper

705209043

$474.58

55

Brake Support

705206217

$50.74

57

DPS Support

705206294

$66.12

60

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

65

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

66

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

70

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

75

Torx Truss Screw M8 X 16

250000746

$2.78

80

Hex Torx Truss M8 X30

250000745

$3.05

82

Bushing

705207229

$11.54

85

Hex. Elastic Flange Nut M8

233281416

$1.25

90

Hex. Elastic Flange Nut M8

233281416

$1.25

110

RH Protector Tube

705206752

$46.12

115

Bearing Support

705211563

$45.35

116

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.68

120

Central Tube

705209434

$146.89

125

Insert Half Hex Body M8 x 1.25

293450307

$2.03

126

Insert Half Hex Body M8 x 1.25

293450307

$2.03

130

Insert Half Hex Body M6 x 1.0

250100199

$2.54

135

Torx Truss M8 X 90

250000806

$6.15

140

Hex. Flange Nut

233081436

$1.63

145

Drawbar Ass'y | Includes 230 to 230c

705208230

$156.89

145a

Elastic Flange Nut M20

250100104

$9.71

145b

Hitch Pin

705204490

$54.58

145c

Hitch Approval Decal

704906897

$16.89

150

Front Anchorage Strap Ass'y | Includes 150 to 150f

705211695

$44.58

150c

Pin

605456518

$3.92

150d

Socket Screw M10 x 30 | XT

205003044

$2.61

150f

Hex. Flange Elastic Nut M10

233201414

$1.26

160

LH Rear Anchorage Support

705211569

$18.43

161

RH Rear Anchorage Support

705211571

$18.43

1510

Hex. Flange Screw M10 X 35

250000855

$1.46

1520

Flange Elastic Nut M10

233201466

$2.63

1530

Hex. Flange Screw M10 X 70

207607056

$3.38

1540

Torx Truss Screw M8 X 16

250000746

$2.78

1550

Hex. Flange Screw M8 x 60

207686044

$2.56

1560

Sleeve

705210648

$9.29

1570

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.68

1580

Torx Head Screw M6 X 16

250000717

$1.74

1590

Stainless Steel Flat Washer

234062670

$1.74

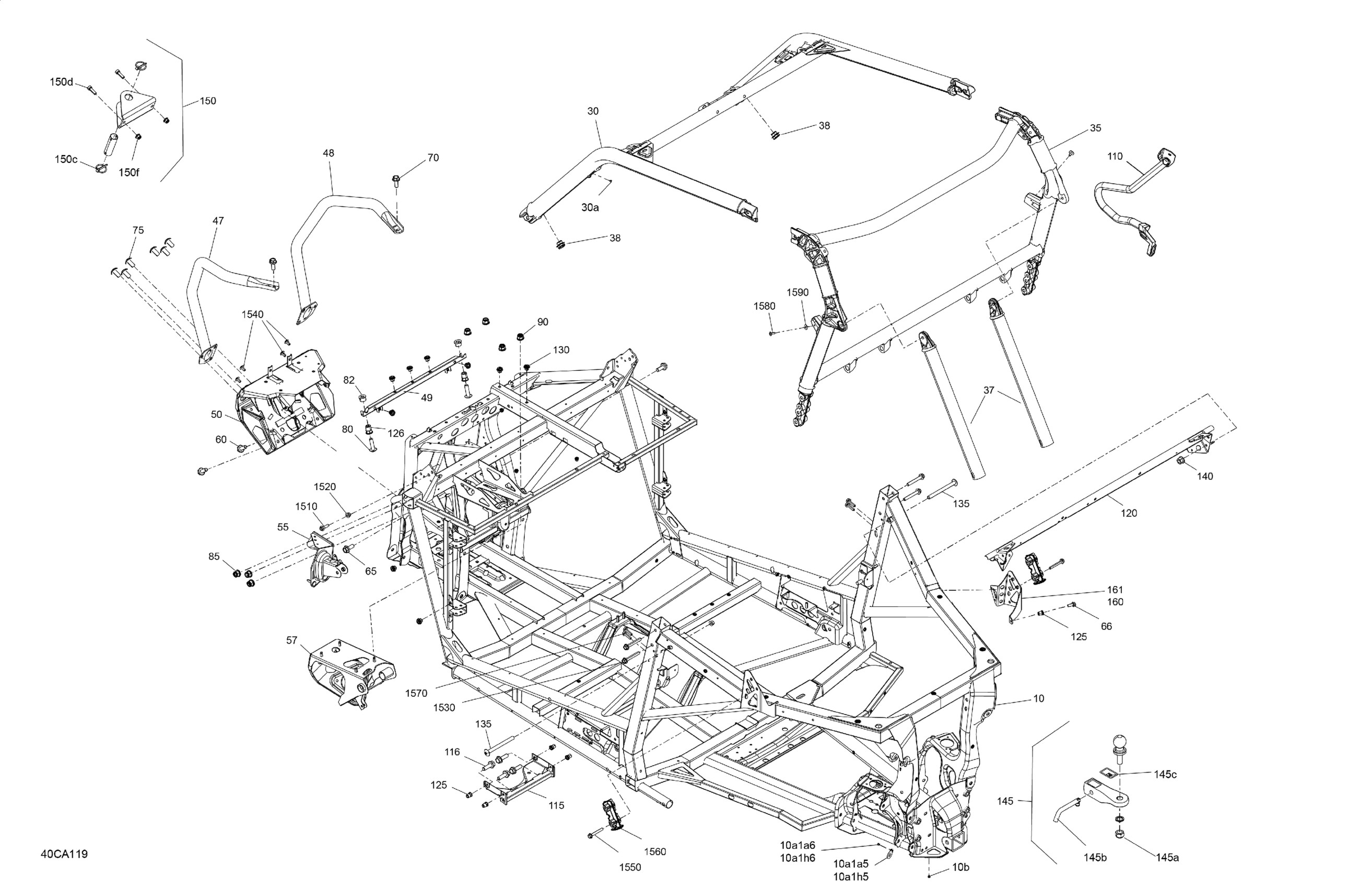

Can-Am Maverick Trail 800 - BASE_DPS - T Regulation, 2021 Frame - System Diagram

Chassis Ass'y | Includes 10 to 10a2w3
