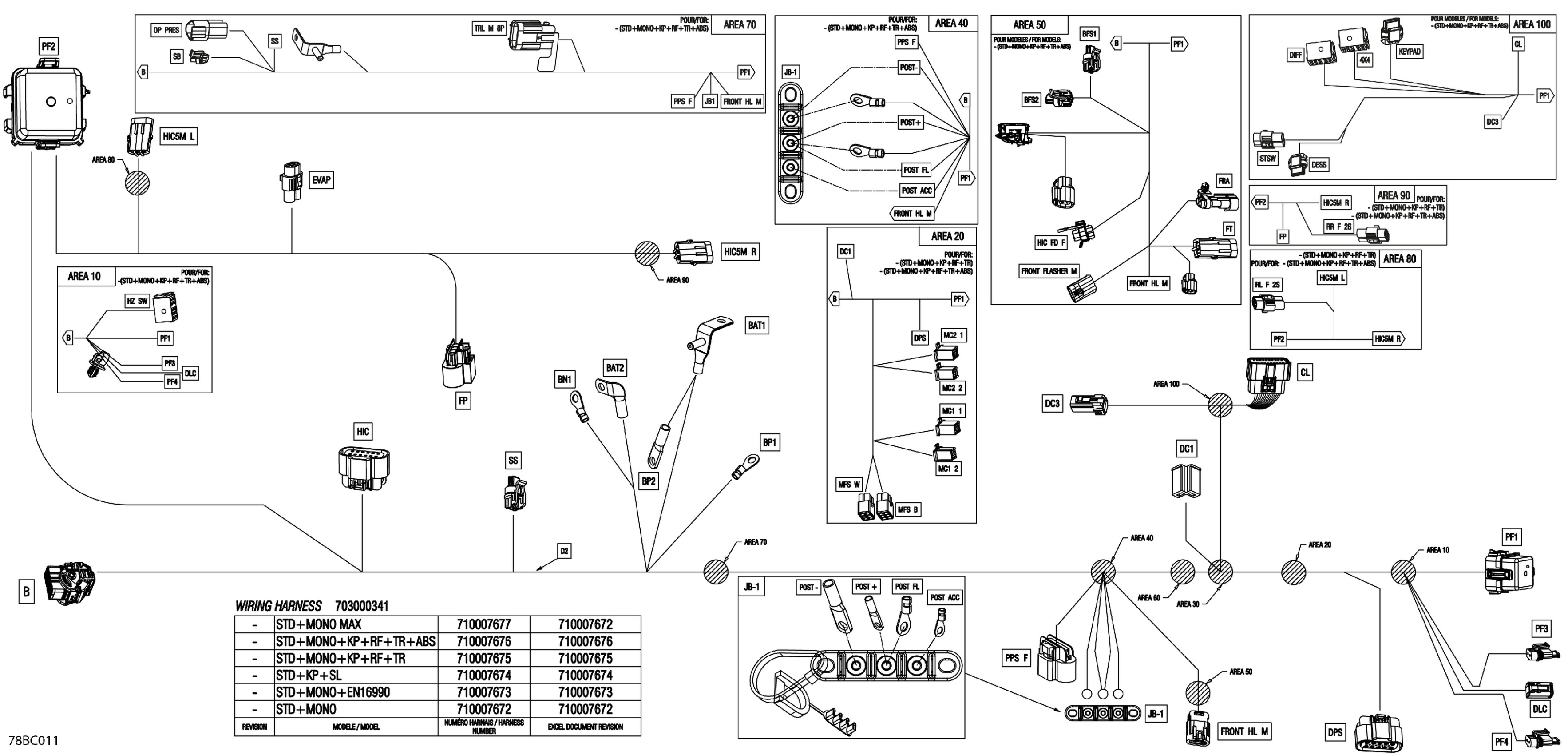

Can-Am Maverick Trail 700 - BASE - T Regulation, 2023 Electric - Main Harness - 710007675 Diagram

#

Description
Price

300

Main Wiring Harness

710007675

$830.74

4X4

Label

710006075

Unavailable

4X4

Housing

710002000

$5.86

4X4

Female Terminal

710005491

$1.54

4X4

Terminal

710003047

$3.68

B

Cover, 48 positions

710001591

$10.05

B

Female Terminal Housing, 48 Circuits

710001588

$39.62

B

Plug

710001592

$2.12

B

Plug

710001593

$2.12

B

Female Terminal

710001589

$1.79

B

Terminal

710001728

$5.91

B

Female Terminal

710001727

$2.55

B

Female Terminal

710001589

$1.79

B

Terminal

710001728

$5.91

BFS1

Female Housing, 2 Circuits

515177192

$6.32

BFS1

Lock

710001152

$3.48

BFS1

Wire Seal

710001163

$5.10

BFS1

Female Terminal

710001164

$5.92

BFS2

Female Housing, 2 Circuits

515177192

$6.32

BFS2

Lock

710001152

$3.48

BFS2

Wire Seal

710001163

$5.10

BFS2

Female Terminal

710001164

$5.92

BN1

Open Barrel Terminal

278001392

$4.12

BP1

Shrink Tubing, 6 mm

515177246

$1.02

BP1

Open Barrel

278000992

$1.79

CL

Female Housing 20 Circuits

278002858

$20.12

CL

Sealing Cap

278002860

$1.42

CL

Female Terminal

515178018

$0.78

CL

Female Terminal 22 AWG

515178349

$1.82

D2

Diode

409012700

$10.83

DC1

Housing

710005373

$4.62

DC1

Female Terminal

710005952

$1.37

DC3

Female Housing, 2 Circuits

515175658

$15.35

DC3

Female Terminal

515175231

$4.12

DC3 CAP

Male Housing, 2 Circuits

710000667

$7.48

DESS

Housing

710001161

$9.15

DESS

Lock

710001162

$3.28

DESS

Wire Seal

710001163

$5.10

DESS

Female Terminal

710001164

$5.92

DIFF

Label

710006076

Unavailable

DIFF

Housing Connector

710002003

$12.68

DIFF

Female Terminal

710005491

$1.54

DIFF

Terminal

710003047

$3.68

DLC

Female Housing 6 Circuits

710002706

$16.22

DLC

Lock

710002705

$3.61

DLC

Female Terminal

710005438

$4.00

DLC

Female Terminal

710005439

$4.28

DPS

Female Housing

710004989

$7.22

DPS

Lock | PACKARD 15430900

710005098

$1.54

DPS

Lock

710001222

$1.68

DPS

Plug

710002075

$2.47

DPS

Wire Seal

278002186

$4.51

DPS

Seal

710003153

$0.94

DPS

Female Terminal

278002187

$5.04

DPS

Terminal

710001873

$2.02

EVAP

Wire Seal

710000402

$4.42

EVAP

Female Terminal

409012100

$3.73

FL-1

Fuse Link 21-30AMP

715002536

$15.22

FL-2

Fuse Link 41-50AMP

715002538

$23.05

FP

Male Housing, 4 Circuits

278002185

$5.86

FP

Lock

710001222

$1.68

FP

Lock

710006214

$0.75

FP

Wire Seal

278002186

$4.51

FP

Seal

710003153

$0.94

FP

Female Terminal

278002187

$5.04

FP

Terminal

710001873

$2.02

FRA

Female Housing, 2 Circuits

515175658

$15.35

FRA

Female Terminal

710003896

$1.75

FRONT FLASHER M

Clip Bracket Connector (edge)

409210100

$2.00

FRONT FLASHER M

Male Delphi Connector 4 Cavities

710006179

$6.15

FRONT FLASHER M

Lock

710005394

$3.68

FRONT FLASHER M

Seal

278001482

$2.55

FRONT FLASHER M

Seal

710000643

$4.12

FRONT FLASHER M

Gold Terminal

710002467

$1.82

FRONT FLASHER M

Terminal

710000736

$5.35

FRONT HL M

Clip Bracket Connector (edge)

409210100

$2.00

FRONT HL M

Housing

515177201

$7.55

FRONT HL M

Lock

710006398

$0.75

FRONT HL M

Seal

710001233

$2.55

FRONT HL M

Seal Wire

710001332

$2.72

FRONT HL M

Terminal

710001224

$3.02

FRONT HL M

Terminal

710001223

$3.02

FT

Clip

710000992

$4.00

FT

Female Housing, 2 Circuits

278000217

$7.59

FT

Wire Seal

278000218

$3.48

FT

Male Terminal

409004300

$5.46

HIC

Female Housing, 12 Circuits

710001930

$13.94

HIC

Lock

710001222

$1.68

HIC

Lock

710006333

$5.91

HIC

Cap

710001225

$7.27

HIC

Seal Wire

710001332

$2.72

HIC

Seal

710001233

$2.55

HIC

Terminal

710001229

$3.02

HIC

Terminal

710001228

$2.72

HIC FD F

Connector Guard

710007680

$9.23

HIC FD F

Housing

710001132

$9.60

HIC FD F

Lock

710001133

$4.12

HIC FD F

Seal

278001482

$2.55

HIC FD F

Female Terminal

710001134

$6.03

HIC5M L

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

HIC5M L

Wire Seal

278001065

$6.03

HIC5M L

Male Terminal | XT Models

278000222

$2.55

HIC5M R

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

HIC5M R

Wire Seal

278001065

$6.03

HIC5M R

Male Terminal | XT Models

278000222

$2.55

HZ SW

Housing

710002000

$5.86

HZ SW

Terminal

710003047

$3.68

HZ SW

Female Terminal

710005491

$1.54

JB-1

Junction Block Cover

710006610

$23.05

JB-1

Elastic Stop Nut M6, Brass

232561200

$3.51

KEYPAD

Housing

710001161

$9.15

KEYPAD

Lock

710001162

$3.28

KEYPAD

Wire Seal

710001163

$5.10

KEYPAD

Female Terminal

710001164

$5.92

MC1 1

Female Housing

710004047

$13.83

MC1 1

Terminal

710002315

$4.60

MC1 2

Female Housing

710004048

$14.75

MC1 2

Terminal

710002315

$4.60

MC2 1

Female Housing

710004047

$13.83

MC2 1

Terminal

710002315

$4.60

MC2 2

Female Housing

710004048

$14.75

MC2 2

Terminal

710002315

$4.60

MFS B

Female Housing, 6 Circuits

710000081

$8.29

MFS B

Cap

710000080

$6.48

MFS B

Wire Seal

710000402

$4.42

MFS B

Seal

409012300

$4.38

MFS B

Female Terminal

409012100

$3.73

MFS W

Female Housing, 6 Circuits

710000081

$8.29

MFS W

Cap

710000080

$6.48

MFS W

Seal

409012300

$4.38

MFS W

Wire Seal

710000402

$4.42

MFS W

Female Terminal

409012100

$3.73

OP PRES

Male Housing

278002378

$10.91

OP PRES

Clip

710005273

$7.60

OP PRES

Male Lock, 3 Circuits

409207600

$3.02

OP PRES

Male Terminal

710001348

$11.14

PF1

Fuse Cover

278003553

$3.79

PF1

Fuse Base Ass'y

278003448

$26.62

PF1

Housing Support

710005671

Unavailable

PF1

Wire Seal

278000216

$2.55

PF1

Seal

293300198

$2.31

PF1

Wire Seal

278000218

$3.48

PF1

Wire Seal

710000048

$5.10

PF1

Wire Seal

278001065

$6.03

PF1

Female Terminal

515177177

$5.11

PF1

Female Terminal

710000918

$5.10

PF1

Female Terminal

278002578

$0.86

PF1 T LABEL

Fuse Box Decal

710007045

$17.66

PF1-F10

Little Fuse, 10 Amperes

710000744

$7.24

PF1-F11

Little Fuse, 20 Amperes

710000746

$6.77

PF1-F12

Little Fuse, 10 Amperes

710000744

$7.24

PF1-F14

Little Fuse, 10 Amperes

710000744

$7.24

PF1-F16

Little Fuse, 10 Amperes

710000744

$7.24

PF1-F24

Little Fuse, 5 Amperes

710000742

$7.24

PF1-F25

Little Fuse, 5 Amperes

710000742

$7.24

PF1-F26

Little Fuse, 5 Amperes

710000742

$7.24

PF1-R3

Relay, 30 AMP

515176774

$19.20

PF1-R8

Relay

715900824

$16.22

PF1-R9

Relay, 50 AMP

515176775

$13.86

PF1-SP1

Little Fuse, 20 Amperes

710000746

$6.77

PF2

Fuse Cover

278003553

$3.79

PF2

Fuse Box Decal

710006792

$13.18

PF2

Fuse Base Ass'y

278003448

$26.62

PF2

Wire Seal

278000216

$2.55

PF2

Seal

293300198

$2.31

PF2

Wire Seal

278000218

$3.48

PF2

Wire Seal

278001065

$6.03

PF2

Female Terminal

710000918

$5.10

PF2

Female Terminal

278002578

$0.86

PF2 SP1

Little Fuse, 10 Amperes

710000744

$7.24

PF2 SP2

Little Fuse, 10 Amperes

710000744

$7.24

PF2 SP3

Little Fuse, 10 Amperes

710000744

$7.24

PF2-F18

Little Fuse, 10 Amperes

710000744

$7.24

PF2-F4

Little Fuse, 10 Amperes

710000744

$7.24

PF2-F5

Little Fuse, 10 Amperes

710000744

$7.24

PF2-F6

Little Fuse, 10 Amperes

710000744

$7.24

PF2-F7

Little Fuse, 10 Amperes

710000744

$7.24

PF2-F8

Little Fuse, 10 Amperes

710000744

$7.24

PF2-F9

Fuse, 25 Amps

710002590

$18.43

PF2-R1

Relay, 30 AMP

515176774

$19.20

PF2-R2

Relay

715900824

$16.22

PF3

Fuse Holder

278001325

$8.57

PF3

Female Terminal

710000113

$6.03

PF3-F2

Fuse

710001613

$7.24

PF4

Fuse Holder

278001325

$8.57

PF4

Female Terminal

710000113

$6.03

PF4

Female Terminal

710000357

$6.03

PF4-F21

Fuse

710001613

$7.24

POST ACC

Shrink Tubing, 6 mm

515177246

$1.02

POST ACC

Open Barrel

278000992

$1.79

POST FL

Shrink Tubing, 6 mm

515177246

$1.02

POST FL

Open Barrel

278000992

$1.79

PPS F

Housing

710001232

$13.80

PPS F

Lock

710001222

$1.68

PPS F

Seal

710001233

$2.55

PPS F

Terminal

710001229

$3.02

R-1

Resistor

710006155

$2.75

R-3

Resistor

710005179

$2.75

RL F 2S

Wire Seal

710000402

$4.42

RL F 2S

Female Terminal

409012100

$3.73

RR F 2S

Wire Seal

710000402

$4.42

RR F 2S

Female Terminal

409012100

$3.73

SB

Housing

710002177

$3.98

SB

Lock

710002043

$0.85

SB

Seal

278001482

$2.55

SB

Female Terminal

710001134

$6.03

SS

Female Housing, 2 Circuits

515177192

$6.32

SS

Lock

710001152

$3.48

SS

Wire Seal

710001163

$5.10

SS

Female Terminal

710001164

$5.92

STSW

Wire Seal

710000402

$4.42

STSW

Female Terminal

409012100

$3.73

TRL M 8P

Holder

710002493

$2.98

TRL M 8P

Housing

710001927

$8.57

TRL M 8P

Lock

710006181

$3.98

TRL M 8P

Seal

710001233

$2.55

TRL M 8P

Terminal

710001224

$3.02
