Description

Price

10

LH Front Brake Caliper | Includes 10 to 10c

705602180

$230.74

10a

LH Brake Pads

715900379

$111.51

10a1

Pin Kit | Packages STD & PRO

715900384

$10.98

10c

Bleeding Screw

705601017

$6.45

10d

Cap Spring Kit

715900385

$17.66

20

RH Front Brake Caliper | RH Front

705601888

$230.74

20a

RH Brake Pads

715900380

$111.51

20a1

Pin Kit | Packages STD & PRO

715900384

$10.98

20c

Bleeding Screw

705601017

$6.45

20d

Cap Spring Kit

715900385

$17.66

30

Master Cylinder | Includes 30 to 30b

705601803

$276.89

30a

Boot Rod Kit

715900373

$50.74

30b

Fork Kit

715900374

$27.66

35

Master Cylinder Reservoir Ass'y | Includes 500 to 500h

705601526

$110.74

35b

Diaphragm Cover Ass'y

219800350

$17.66

35c

Diaphragm Cover Ass'y

219800350

$17.66

35d

Oil Level Sensor

705601073

$50.74

35g

Spindle Lock

705601294

$14.37

35h

Push Nut | Not shown

211100002

$0.83

36

Hose

705601801

$9.29

37

Oetiker Clamp

293650046

$2.33

38

Clip

710001343

$7.09

40

LH Front Caliper Hose | Includes 40 to 40a

705601852

$78.43

40a

Clamp

293650256

$4.36

43

RH Front Caliper Hose | Includes 43 to 43a

705601853

$83.05

43a

Clamp

293650256

$4.36

45

Rear Caliper Hose | Includes 45 to 45a

705601956

$152.28

45a

Clamp

293650256

$4.36

50

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.91

55

Double Banjo Bolt

705601723

$7.60

60

Copper Washer

705601628

$4.34

95

Hex. Elastic Flange Nut M8

233281416

$1.25

140

Pop Rivet 3/16"

390402200

$0.26

145

Hex. Flange Screw M6 X 10

210261040

$1.25

150

Brake Switch

705601250

$59.97

170

LH Rear Brake Caliper | Includes 170 to 170d

705601889

$210.74

170a

LH Brake Pads

715900386

$111.51

170a1

Pin Kit | Packages STD & PRO

715900384

$10.98

170c

Bleeding Screw

705601017

$6.45

170d

Cap Spring Kit

715900385

$17.66

180

RH Rear Brake Caliper | Includes 180 to 180d

705601890

$210.74

180a

RH Brake Pads

715900387

$111.51

180a1

Pin Kit | Packages STD & PRO

715900384

$10.98

180c

Bleeding Screw

705601017

$6.45

180d

Cap Spring Kit

715900385

$17.66

210

Elastic Flange Nut M5

233251494

$1.74

220

Flat Washer

250200040

$1.82

250

Brake Pedal

705601537

$55.35

260

Brake Pedal Spring

705600792

$9.22

265

Rubber Stopper

708000759

$3.61

270

Ball Bearing

705601974

$7.03

275

Nylon Flat Washer M8

250200183

$1.28

350

Bushing

705601622

$14.75

360

Hex. Flange Screw M10 X 55

207605546

$1.74

370

Hex. Flange Elastic Nut M10

233201436

$1.74

385

Brake Disc

705601511

$106.12

390

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

400

Hose Support

705601750

$4.60

445

Hex. Flange Screw M10 X 25

207502546

$1.74

450

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

455

Master Cylinder Deflector

705601626

$6.92

460

Tuflok Plastic Rivet

293150230

$1.21

500

Reservoir Support

705601644

$13.52

505

Stopper Bracket

705601608

$6.15

520

Pop Rivet 3/16"

390402200

$0.26

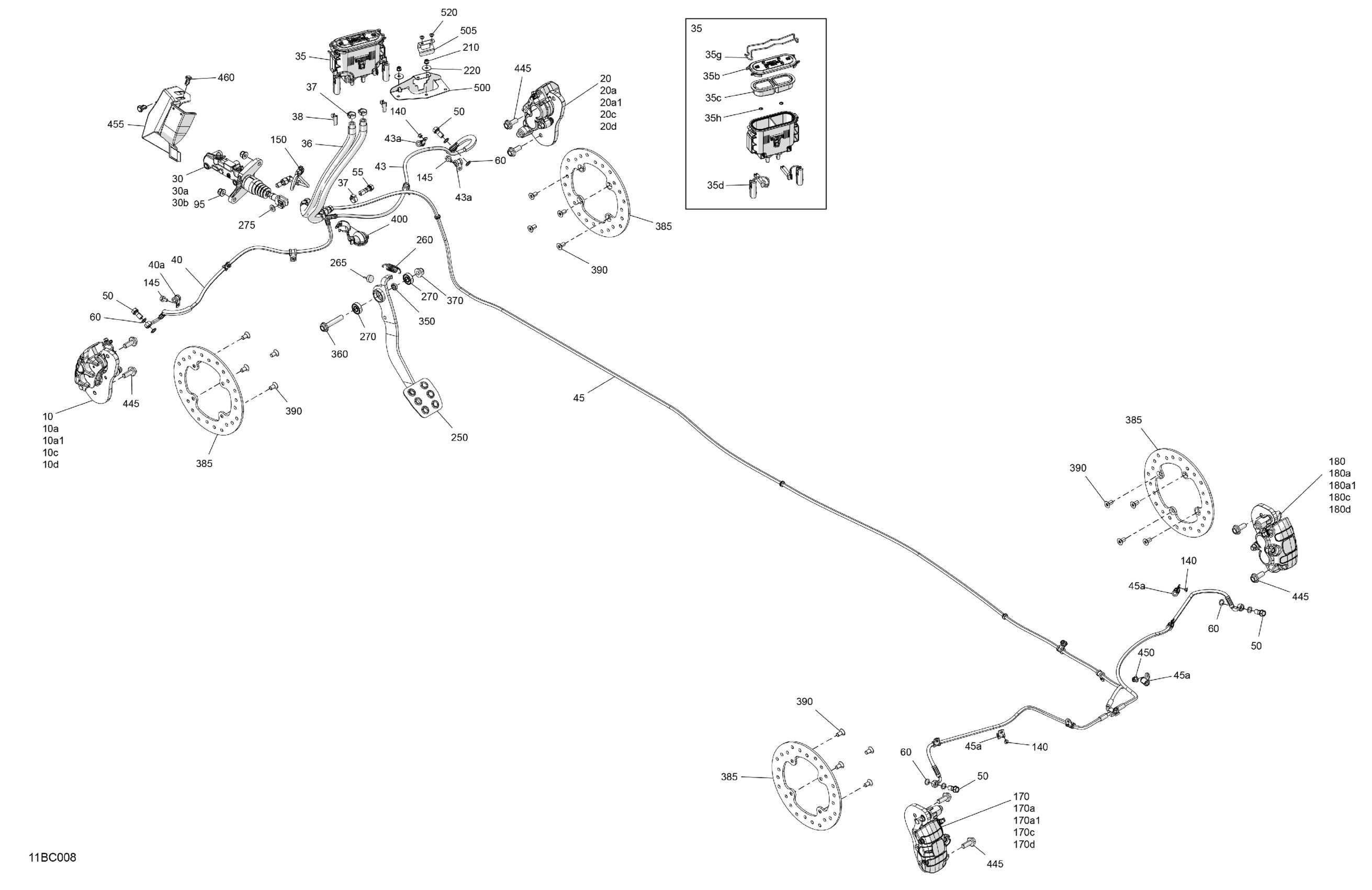

Can-Am Maverick Trail 700 - BASE - T Regulation, 2023 Mechanic - Brake System Diagram
