Description

Price

1400

LH Rear Panel

705011335

$189.97

1415

Hex. Flange Screw M6 X 25

207662554

$1.48

1420

Torx Screw M6 X 20

250000722

$1.34

1430

Flat Washer M6.6 X 22

250200162

$1.91

1440

Panel Nut M6 X 1.0

250100198

$1.73

1450

Support Plate

705003841

$0.91

1470

Torx Truss Screw M6 X 25

250000807

$1.74

1480

Stainless Steel Flat Washer

234062670

$1.74

1490

Black, Dart

414644300

$0.78

1500

RH Rear Panel

705011336

$189.97

1600

Air Filter Acces Door

705011338

$73.82

1625

Quarter Turn

708400278

$4.98

1650

Clip

708400285

$4.02

1675

Washer

708400286

$4.02

1700

Catalyst Gray, Access Panel Trim

705017755

$51.51

1710

Torx Screw K50 X 16

250000720

$1.39

1800

Catalyst Gray, LH Open Carrier Trim

705017754

$101.51

1810

Clip

517306478

$1.37

1900

Catalyst Gray, RH Open Carrier Trim

705017756

$101.51

1910

Tuflok Plastic Rivet

293150230

$1.21

2300

Rear Box

705016885

$373.82

2310

Panel Nut M6 X 1.0

250100224

$1.70

2320

Hex. Coupling Nut M6

250100207

$1.94

2325

Hex. Elastic Flange Nut M6

233161464

$0.83

2330

Hex Torx Truss M8 X30

250000745

$3.05

2335

Stainless Steel Flat Washer

234082670

$1.74

2340

Torx Truss Screw M6 X 25

250000807

$1.74

2345

Stainless Steel Flat Washer

234062670

$1.74

2400

Acces Cover Ass'y

715006781

$36.89

2450

Air Intake Cover

705011340

$13.85

2500

Rear Fascia

705016944

$157.66

2510

LH Rear Reflector

704906815

$11.00

2520

RH Rear Reflector

704906816

$11.15

2530

Panel Nut M6 X 1.0

250100198

$1.73

2540

Torx Truss Screw M6 X 25

250000807

$1.74

2550

Stainless Steel Flat Washer

234062670

$1.74

2580

Red Reflector

520001820

$17.66

2600

LH Rear Wheel Arch Protector

705015886

$42.28

2610

Tuflok Plastic Rivet

293150230

$1.21

2620

Torx Screw K50 X 16

250000720

$1.39

2630

Washer M5

250200025

$0.61

2700

RH Rear Wheel Arch Protector

705016135

$42.28

2710

Panel Nut M6 X 1.0

250100198

$1.73

2720

Stainless Steel Flat Washer

234062670

$1.74

2730

Torx Screw M6 X 20

250000722

$1.34

2740

Tuflok Plastic Rivet

293150230

$1.21

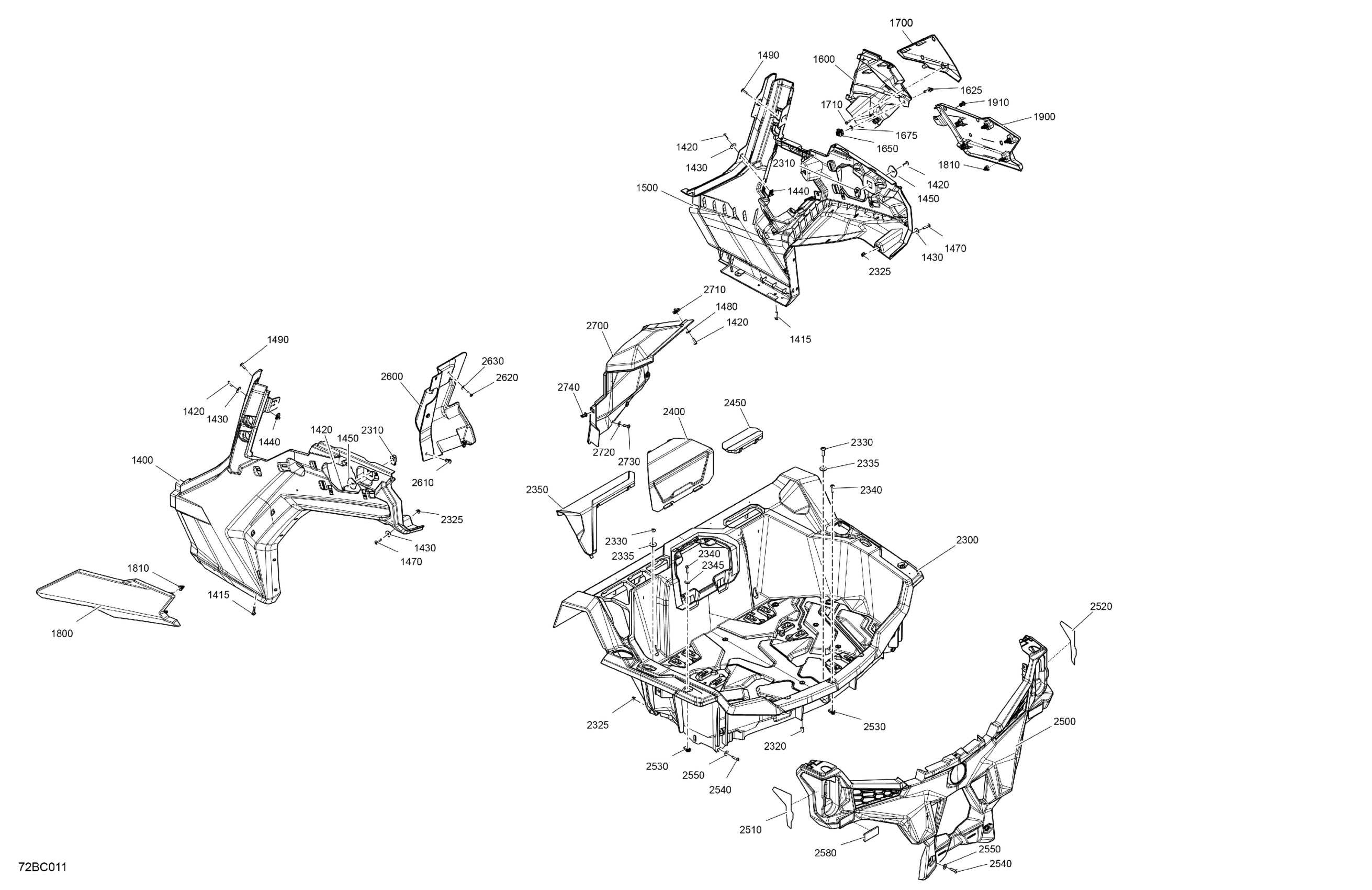

Can-Am Maverick Trail 700 - BASE - International, 2023 Body - Rear Section Diagram
