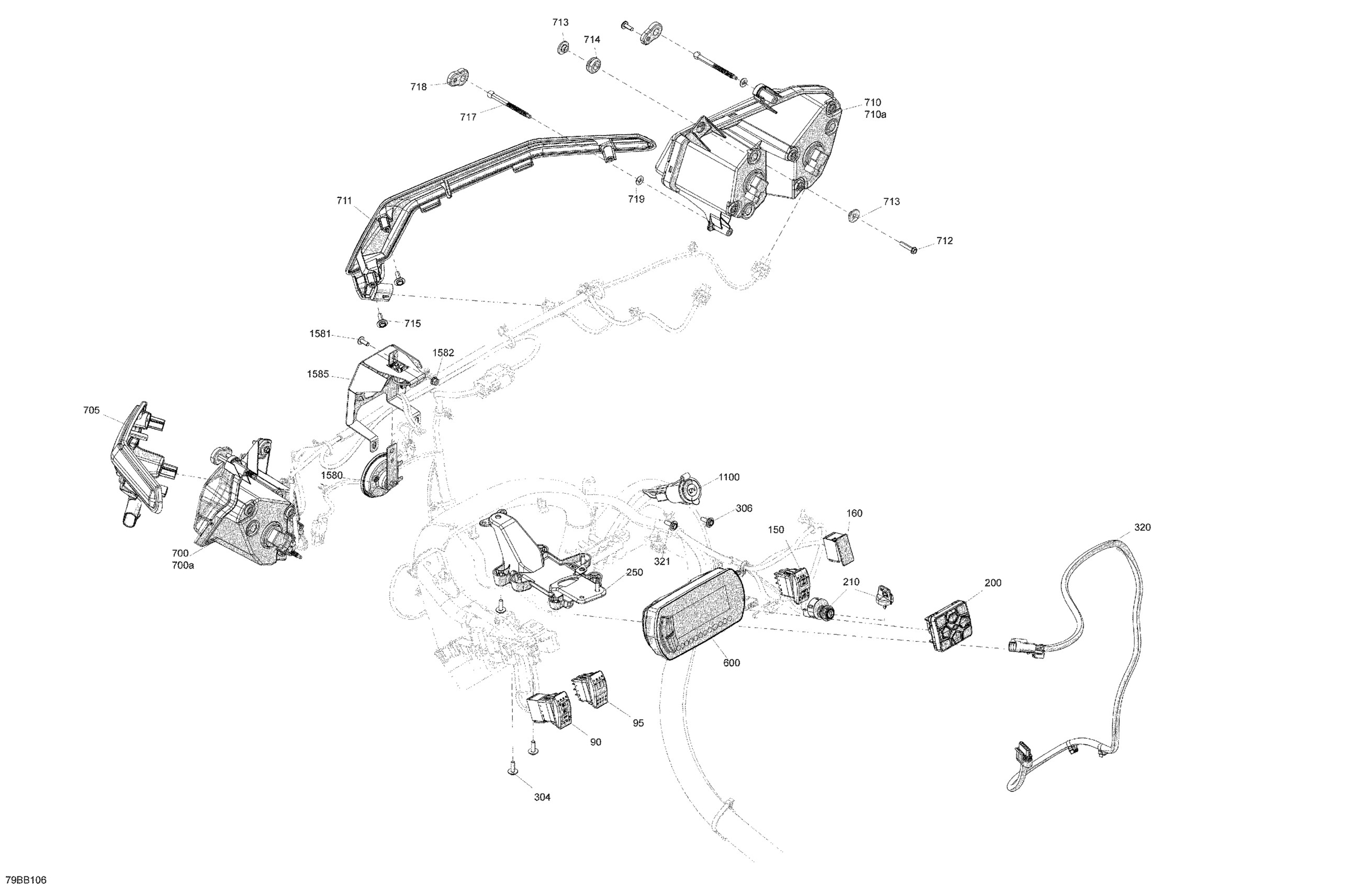

Can-Am Maverick Sport 1000R - DPS - T Regulation, 2022 Electric - Front Section - No ABS Diagram

Description

Price

Horn Switch

710006788

$23.05

Light Switch

710004492

$46.12

719

O-Ring

293300192

$3.85

718

Adjustment Guide

710005097

$8.45

717

Ajustment Screw

710005837

$6.45

715

Screw PT Type K-50 X 16

250000959

$1.74

714

Grommet

709000582

$4.38

713

Shoulder Bushing

710004749

$2.75

712

Hex. Flange Screw K50 X 2.24 X 25

241152540

$3.61

711

RH Fascia Trim

705011486

$40.74

710a

Bulb 12V 55W

715900141

$41.51

710

RH Headlamp | Includes 710 to 710a

710008231

$189.20

705

LH Fascia Trim

705011485

$40.74

700a

Bulb 12V 55W

715900141

$41.51

700

LH Headlamp | Includes 700 to 700a

710008230

$189.20

600

Multifunction Compact Gauge

710007407

$355.35

321

Screw PT Type K-50 X 16

250000959

$1.74

320

Trottle Pedal Harness

710005929

$226.12

306

Screw PT Type K-50 X 16

250000959

$1.74

304

Screw PT Type K-50 X 16

250000959

$1.74

250

Housing Support

710005672

$8.05

210

Ignition Switch | Includes 210 to 210b

710007324

$63.05

210a

Blank Ignition Key

715900934

$17.66

205

Specialized Nut

710007923

$2.05

200

Multifonction Switch

710006650

$87.66

160

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

1585

Horn Bracket

710006055

$60.74

1582

Hex. Flange Elastic Nut M6

233261494

$1.26

1581

Torx Truss Screw M6 X 16

250000721

$1.39

1580

Horn

710004791

$37.66

150

Switch 2X4

710005489

$32.28

1100

12V Power Outlet

710005374

$27.27
