Description

Price

90

Hazard Lights Switch

710006107

$18.43

95

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

160

Differential Lock Switch

710005470

$46.12

180

Switch HDC

710006553

$23.05

200

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

210

Terminal Dess One-Wire | Except Model Europe

515178840

$67.57

211

Safety Nut (DESS Switch)

278002963

$2.72

212

Grey, Can-Am DESS Key

515179384

$55.35

214

Start-Stop Button | Not Shown

710005213

$59.97

350

Day Light | Europe

710001726

$36.89

350a

Cap Protector | Model-Europe

710003269

$10.98

351

Position Light Harness

710005676

$13.52

360

Flasher | Europe

710002964

$35.35

361

Torx Truss Screw M6 X 16

250000721

$1.39

600

Multifunction Gauge MID | Model XTP

710007409

$341.51

700

LH Headlamp | Includes 700 to 700a

710008230

$189.20

705

LH Fascia Trim

705011485

$40.74

710

RH Headlamp | Includes 710 to 710a

710008231

$189.20

711

RH Fascia Trim

705011486

$40.74

712

Hex. Flange Screw K50 X 2.24 X 25

241152540

$3.61

713

Shoulder Bushing

710004749

$2.75

714

Grommet

709000582

$4.38

715

Screw PT Type K-50 X 16

250000959

$1.74

717

Ajustment Screw

710005837

$6.45

718

Adjustment Guide

710005097

$8.45

719

O-Ring

293300192

$3.85

1100

12V Power Outlet

710005374

$27.27

1500

Turn Signal | Europe

710001721

$198.43

1501

Hex. Forming Screw M5 X 16

210251650

$0.92

1502

Lock Washer 5 mm | Europe

234151401

$0.46

1550

Flasher Unit

710003239

$78.43

1650

Support Connector

710006056

$5.00

1651

Screw PT Type K-50 X 16

250000959

$1.74

1652

Screw PT Type K-50 X 16

250000959

$1.74

1660

Yaw Rate Sensor

710005658

$166.12

1662

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

1664

Yaw Sensor Support

710006501

$32.28

1680

Speed Sensor

710006981

$78.43

1682

Screw PT Type K-50 X 16

250000959

$1.74

1684

Clip Bracket Connector (edge)

409210100

$2.00

1685

Clip

710001038

$5.11

1693

ABS Sensor Support

710008185

$8.83

1695

Hex Screw Washer Head M8 X 20

207582054

$2.61

700a

Bulb 12V 55W

715900141

$41.51

710a

Bulb 12V 55W

715900141

$41.51

250

Housing Support

710005672

$8.05

304

Screw PT Type K-50 X 16

250000959

$1.74

306

Screw PT Type K-50 X 16

250000959

$1.74

320

Trottle Pedal Harness

710005929

$226.12

321

Screw PT Type K-50 X 16

250000959

$1.74

150

Switch 2X4

710005489

$32.28

1580

Horn

710004791

$37.66

1581

Torx Truss Screw M6 X 16

250000721

$1.39

1582

Hex. Flange Elastic Nut M6

233261494

$1.26

1585

Horn Bracket

710006055

$60.74

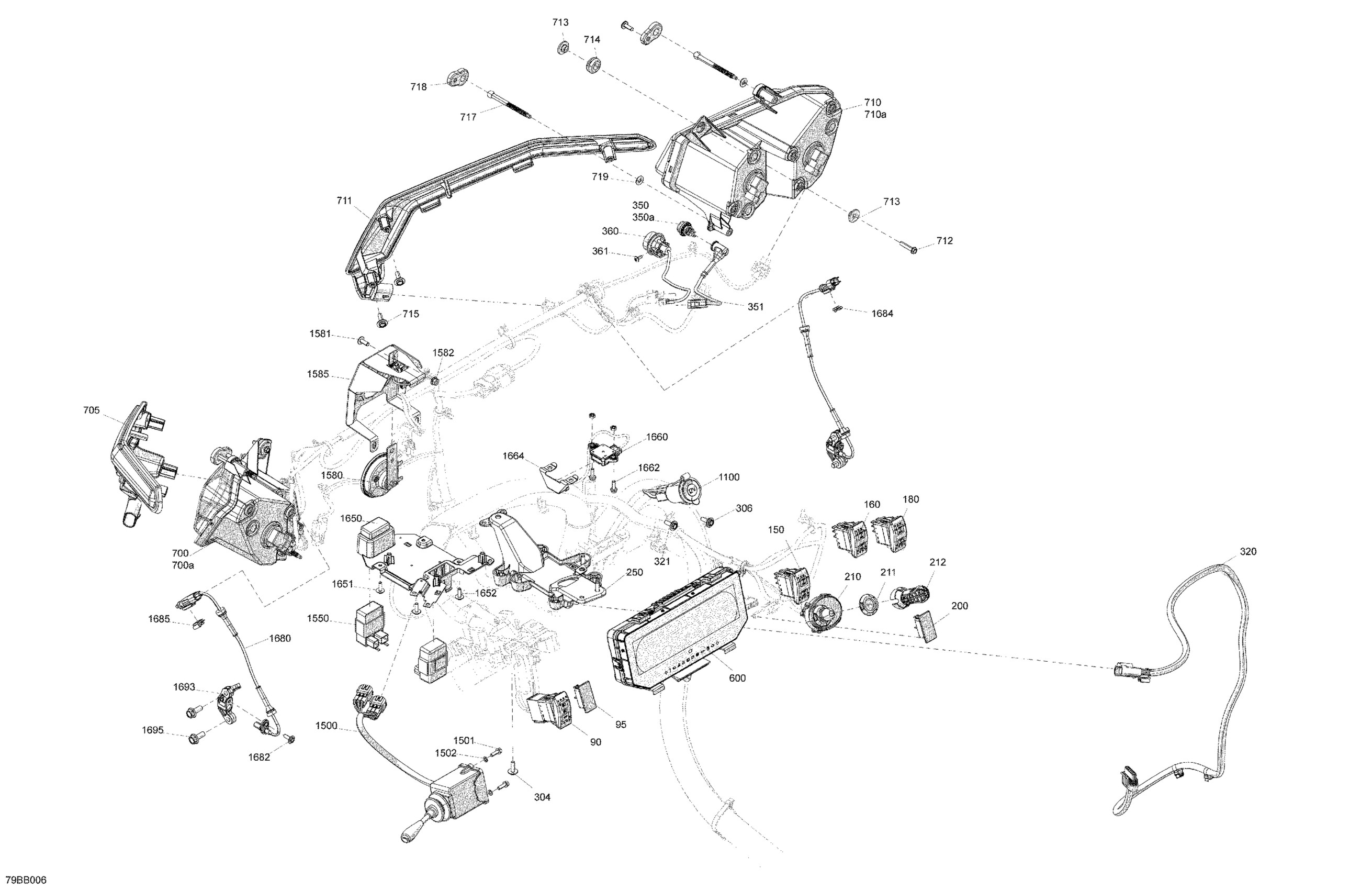

Can-Am Maverick Sport 1000R - DPS - T Regulation, 2022 Electric - Front Section - ABS Diagram
