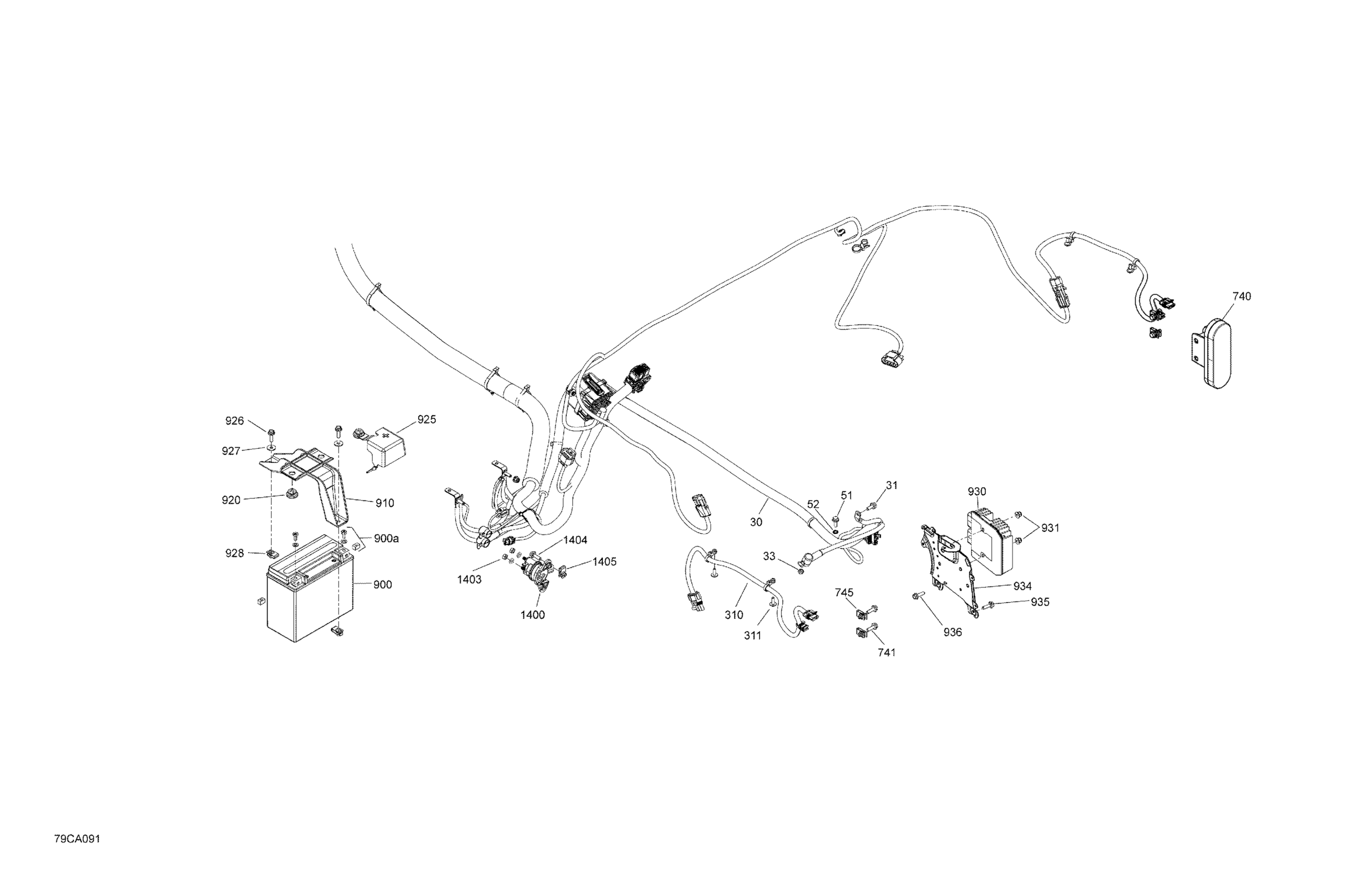

Can-Am Maverick Sport 1000R - DPS - CE, 2021 Electric - Rear System Diagram

Description

Price

Starter Wiring Harness

710007207

$161.51

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

Elastic Stop Nut M6, Brass

232561200

$3.51

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

External Serrated Lock Washer 6 mm

234461608

$0.92

310

Rear Harness

710006551

$41.51

311

Screw PT Type K-50 X 16

250000959

$1.74

740

Tail Light

710004497

$110.74

741

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

745

Panel Nut M6 X 1.0

250100198

$1.73

900

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

900a

Battery Bolt Kit

250000282

$2.95

910

Fixation Plate

710005673

$10.15

920

Stopper Rubber

705014429

$6.09

925

Battery Cable Cap

710005930

$8.46

926

Hex. Flange Screw M6 X 20

207662054

$0.83

927

Stainless Steel Flat Washer

234062670

$1.74

928

Panel Nut M6 X 1.0

250100198

$1.73

930

Voltage Regulator

710005842

$159.87

931

Hex. Flange Elastic Nut M6

233261494

$1.26

934

Rear Accessory Support

710008175

$32.28

935

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

936

Hex Screw Washer Head M8 X 20

207582054

$2.61

1400

Starter Relay

278003012

$35.07

1403

Elastic Stop Nut M6, Brass

232561200

$3.51

1404

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

1405

Panel Nut M6 X 1.0

250100198

$1.73
