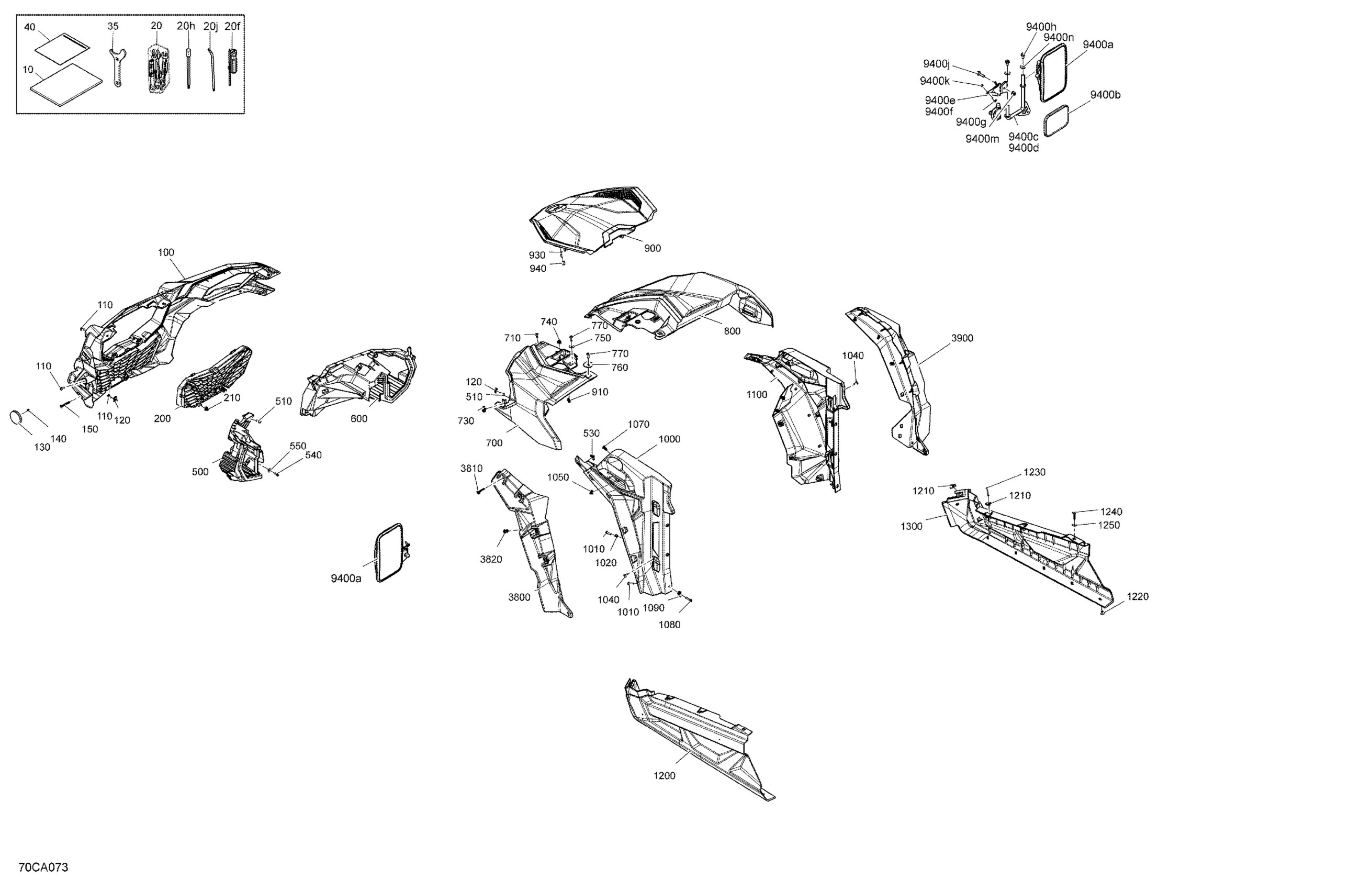

Can-Am Maverick Sport 1000R - DPS - CE, 2021 Body - Front Section Diagram

#

Description
Price

10

English Operator Guide

219002126

Unavailable

20

Tool Kit | Includes 90 to 90k

704700169

$70.99

20c

Socket Wrench 14/16MM

529000085

$6.55

20f

Screw Driver

529000021

$3.19

20h

Driven Open Tool

529000088

$17.99

20j

Torx Key T30

708200340

$8.94

35

Adjustment Wrench

529000057

$4.29

40

Waranty Registration Form

219400038

Unavailable

100

Front Fascia

705011317

$241.01

110

Torx Truss Screw M6 X 16

250000721

$1.60

120

Panel Nut M6 X 1.0

250100198

$1.99

130

Amber Reflector | Except Europe Model

705011222

$11.96

140

Elastic Flange Nut M5

233251494

$2.00

150

Torx Screw M6 X 45

250000748

$1.79

200

Fascia Removable Grid

705011318

$196.99

210

Clip

517306478

$1.03

500

LH Headlamp Structure

705011319

$206.69

510

Torx Screw M6 X 20

250000722

$1.54

530

Panel Nut M6 X 1.0

250100198

$1.99

540

Torx Screw K50 X 16

250000720

$1.60

550

Stainless Steel Flat Washer

234062670

$2.00

600

RH Headlamp Structure

705011320

$206.69

700

Timeless Black, LH Front Fender

705019683

$184.30

710

Torx Truss Screw M6 X 16

250000721

$1.60

730

Panel Nut M6 X 1.0

250100198

$1.99

740

Clip

517306478

$1.03

750

Flat Washer M6.6 X 22

250200162

$2.19

760

Support Plate

705003841

$0.91

770

Torx Screw M6 X 20

250000722

$1.54

800

Timeless Black, RH Front Fender

705015581

$184.30

900

Removable Hood

705011322

$95.49

910

Clip

517306478

$1.03

930

Torx Truss Screw M6 X 25

250000807

$2.00

940

Bushing

705502616

$8.24

1000

LH Front Mudguard

705011323

$52.96

1010

Torx Screw M6 X 20

250000712

$2.00

1020

Hex. Flange Elastic Nut M6

233261494

$1.45

1040

Torx Truss Screw M6 X 16

250000721

$1.60

1050

Clip

517306478

$1.03

1070

Tuflok Plastic Rivet

293150230

$1.39

1080

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.00

1090

Panel Nut M6 X 1.0

250100198

$1.99

1100

RH Front Mudguard

705011324

$52.96

1200

LH Rocker Panel

705011331

$71.61

1210

Panel Nut M6 X 1.0

250100198

$1.99

1220

Pop Rivet 3/16”

293150101

$2.00

1230

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.00

1240

Torx Truss Screw Head PT.K50 X 40

250000840

$1.79

1250

Flat Washer M6.6 X 22

250200162

$2.19

1300

RH Front Rocker Panel

705016939

$71.61

3800

LH Front 60" Mud Guard Extension

705011325

$52.96

3810

Torx Truss Screw Head PT.K50 X 40

250000840

$1.79

3820

Tuflok Plastic Rivet

293150230

$1.39

3900

RH Front 60" Mudguard Extension

705011326

$12.75

9400a

Mirror

705011497

$74.60

9400b

Wide Angle Lateral Mirror

705013819

$74.60

9400c

LH Mirror Rod Ass'y

705013823

$43.25

9400d

Mirror Rod

705013817

$51.46

9400e

LH Mirror Support

705012897

$66.39

9400f

RH Mirror Support

705012898

$66.39

9400g

Torx Truss Screw M6 X 20

250000350

$5.04

9400h

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.04

9400j

Hex. Flange Screw M8 X 35

207683544

$1.60

9400k

Hex. Flange Elastic Nut M6

233261494

$1.45

9400m

Hex. Flange Elastic Nut M8

233281414

$1.31

9400n

Stainless Steel Flat Washer

234082670

$2.00
