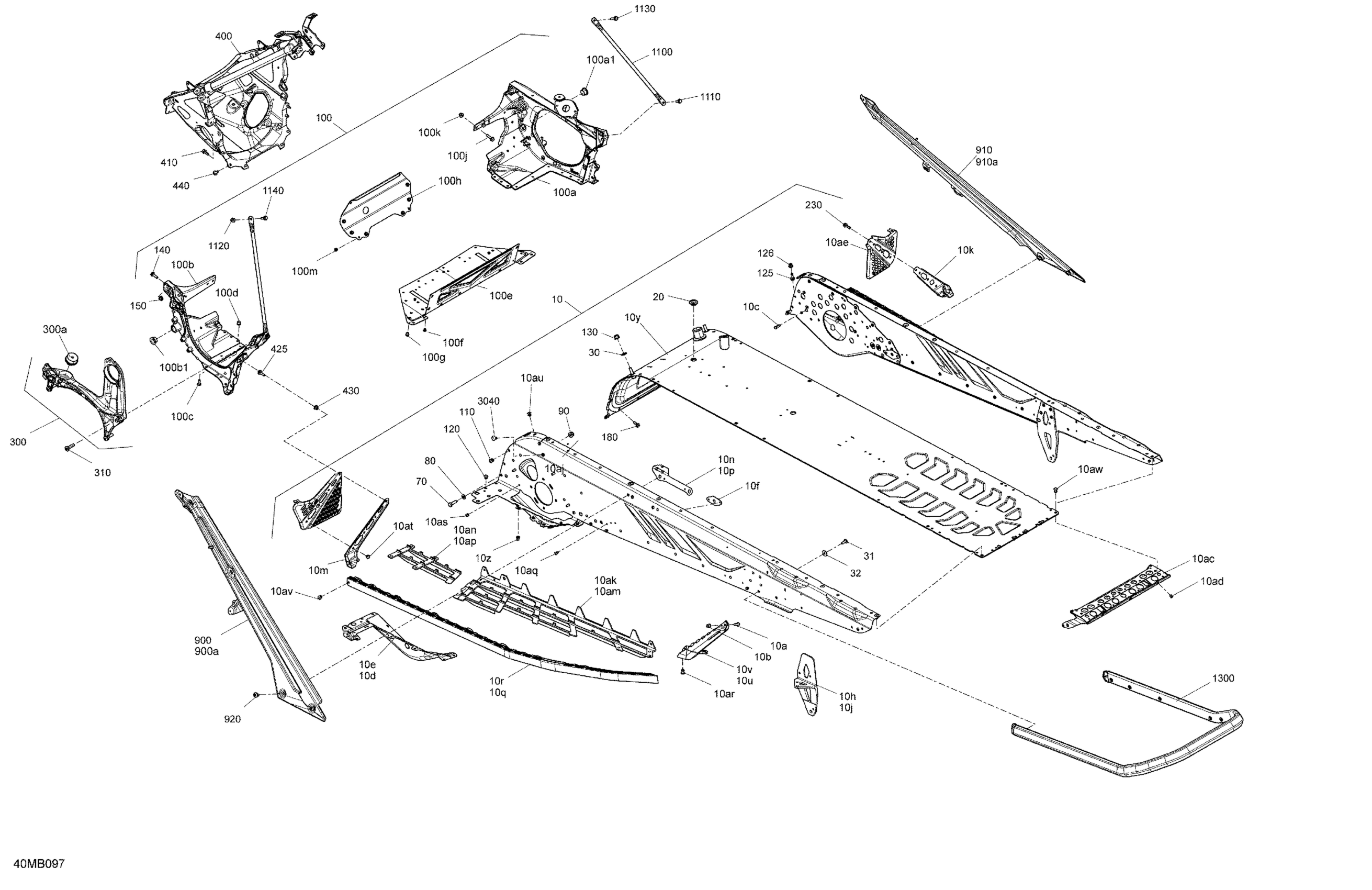

Ski-Doo FREERIDE 146 850 E-TEC - Europe, 2022 Frame - System Diagram

NorthernLichen,Tunnel Chassis Module 146 | Includes 10 to 10aw

518333178

Unavailable

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.66

Collar Huck Magna-Grip 6.4

293150149

$0.37

Clinch Stud M6 X 20

250300027

$1.92

RH Footrest Reinforcement

518332576

$81.51

LH Footrest Reinforcement

518332575

$81.51

Reinforcement Plate

518326647

$4.34

LH Rear Suspension Support This part replaces 518329053.

518334392

$41.51

Support_Suspension Rear R This part replaces 518329054.

518334393

$39.97

Stirrup Reinforcement

518331253

$18.43

Deep Black, LH Chassis Reinforcement

518332924

$18.43

LH Under Chassis Reinforcement

518331744

$16.12

RH Under Chassis Reinforcement

518331745

$16.89

RH Roller

518328737

$180.74

LH Roller

518328738

$180.74

LH Roller Link

518330160

$43.05

RH Roller Link

518330161

$43.05

Radiator Tunnel 137 Ass'y

518334488

$703.05

Clinch Nut M6 Hexsert

605636003

$4.12

Rear Cap Ass'y | Includes 10a17 to 10a17c

518331704

$59.20

Rivet Avibulb 3/16

293150203

$0.29

RH Footrest

518328460

$38.43

LH Footrest

518333007

$38.43

LH Rear Perforated Footstep

518330960

$109.20

Footstep R Rh Perforated

518330962

$109.20

LH Front Driver Footrest

518330385

$83.05

RH Front Driver Footrest

518330388

$83.05

Avex Rivet

390909100

$0.29

Rivet

293150183

$2.06

Avex Rivet

390909200

$0.29

Hemlock Rivet, 6.5 mm

293150096

$3.17

Hemlock Rivet, 6.5 mm

293150119

$4.00

Hemlock Rivet, 6.4 mm

293150174

$6.43

Ornit Rivet 6,5 X 14.5

293150266

$1.94

Black, Plug

293730052

$6.37

Conical Spring Washer M8

250200146

$0.83

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$1.74

Flat Washer

224061201

$1.11

Hex Screw M8 X 30

250000942

$0.92

Flat Washer 8 mm

234081410

$0.69

Hex. Flange Elastic Nut M8

233281414

$1.14

Engine Chassis Module Ass'y | Includes 100 to 100n

518333108

$567.66

RH Member Ass'y | Includes 100a to 100a3

518332687

$208.43

Leg Bushing

505072690

$5.92

LH Side Member Ass'y | Includes 100b to 100b2

518334599

$186.89

Leg Bushing

505072690

$5.92

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.66

Collar Huck Magna-Grip 6.4

293150149

$0.37

Bottom Plate

518332716

$34.58

Avex Rivet

390909100

$0.29

Insert M5 X 0.8

293450268

$1.95

Front Member

518330100

$56.12

Hex. Flange Screw M6 X 20

207662046

$1.74

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Avex Rivet

390909100

$0.29

Ornit Rivet 6,5 X 14.5

293150266

$1.94

Hemlock Rivet, 6.4 mm

293150174

$6.43

Hex. Flange Screw M6 X 20

207662044

$1.66

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Hex. Flange Elastic Nut M8

233281414

$1.14

Hex. Flange Screw M6 X 20

207662046

$1.74

Elastic Flange Nut M6 X 1.0

233261416

$1.74

Hex. Flange Screw M6 X 16

207661646

$1.00

Hex. Flange Screw M6 X 20

207562056

$1.74

LH Side Member Ass'y | Includes 300 to 300a

518333692

$270.74

Vibration Damper

512061516

$57.66

Screw-Pan HD.Torx M8X30

250001060

$0.65

Chassis Suspension Module

518334459

$653.05

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.00

Hex. Flange Screw M6 X 20

207562056

$1.74

Elastic Flange Nut M6 X 1.0

233261416

$1.74

Hex. Flange Screw M6 X 16

207661646

$1.00

Cross Member_Diagonal Rear L B-382 | Includes 900 to 900a This part replaces 518333277.

518333364

Unavailable

LH Rear Diagonal Cross Member

518333356

$108.43

Cross Member_Diagonal Rear R B-382 | Includes 910 to 910a This part replaces 518333278.

518333365

$108.43

RH Rear Diagonal Cross Member

518332559

$108.43

Pan Head Torx Screw M8 X 12

250000887

$1.56

Upper Colomn Support

518329974

$20.74

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.56

Elastic Flange Nut M6 X 1.0

233261416

$1.74

Hex. Flange Screw M6 X 25

207662556

$3.61

Hex. Flange Screw M6 X 20

207662046

$1.74

Rear Short Bumper 146

518331947

$134.99

Dart

293730079

$1.92
