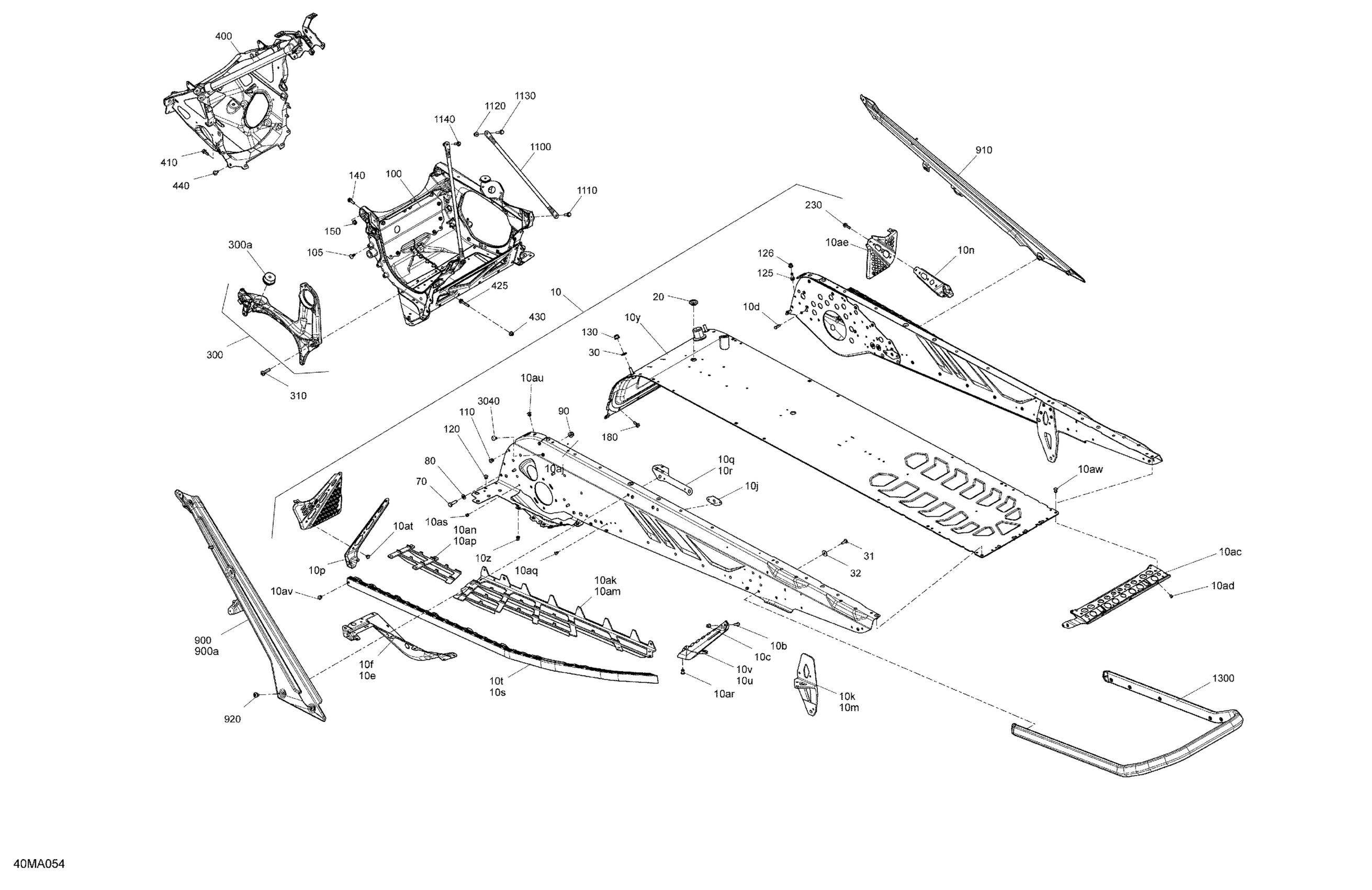

Ski-Doo FREERIDE 146 850 E-TEC - Europe, 2021 Frame - System Diagram

#

Description
Price

10

Catalyst Gray, Chassis Tunnel Module 146" | Includes 10 to 10aw

518332358

Unavailable

10b

Rivet Magna-Grip 6,4 X 50,8

293150148

Unavailable

10c

Collar Huck Magna-Grip 6.4

293150149

Unavailable

10d

Clinch Stud M6 X 20

250300027

$1.92

10e

RH Footrest Reinforcement

518332576

$81.51

10f

LH Footrest Reinforcement

518332575

$81.51

10j

Reinforcement Plate

518326647

$4.34

10k

LH Rear Suspension Support This part replaces 518329053.

518334392

Unavailable

10m

Support_Suspension Rear R This part replaces 518329054.

518334393

Unavailable

10n

Stirrup Reinforcement

518331253

$18.43

10p

Deep Black, LH Chasssis Reinforcement

518331560

$18.43

10q

LH Under Chassis Reinforcement

518331744

$16.12

10r

RH Under Chassis Reinforcement

518331745

$16.89

10s

RH Roller

518328737

$180.74

10t

LH Roller

518328738

$180.74

10u

LH Roller Link

518330160

Unavailable

10v

RH Roller Link

518330161

Unavailable

10y

Radiator Tunnel 137 Ass'y

518334488

Unavailable

10z

Clinch Nut M6 Hexsert

605636003

$4.12

10ac

Rear Cap Ass'y | Includes 10a17 to 10a17c

518331704

$59.20

10ad

Rivet Avibulb 3/16

293150203

Unavailable

10ae

RH Footrest

518328460

$38.43

10aj

LH Footrest

518333007

$38.43

10ak

LH Rear Perforated Footstep

518330960

$109.20

10am

Footstep R Rh Perforated

518330962

$109.20

10an

LH Front Driver Footrest

518330385

$83.05

10ap

RH Front Driver Footrest

518330388

$83.05

10aq

Avex Rivet

390909100

$0.29

10ar

Rivet

293150183

$2.06

10as

Avex Rivet

390909200

Unavailable

10at

Hemlock Rivet, 6.5 mm

293150096

$3.17

10au

Hemlock Rivet, 6.5 mm

293150119

$4.00

10av

Hemlock Rivet, 6.4 mm

293150174

$6.43

10aw

Ornit Rivet 6,5 X 14.5

293150266

Unavailable

20

Black, Plug

293730052

Unavailable

30

Conical Spring Washer M8

250200146

Unavailable

31

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

Unavailable

32

Flat Washer

224061201

Unavailable

70

Hex Screw M8 X 30

250000942

Unavailable

80

Flat Washer 8 mm

234081410

Unavailable

90

Hex. Flange Elastic Nut M8

233281414

Unavailable

100

Engine Chassis Module Ass'y | Includes 100 to 100n

518333108

Unavailable

105

Dart

293730079

$1.92

110

Ornit Rivet 6,5 X 14.5

293150266

Unavailable

120

Hemlock Rivet, 6.4 mm

293150174

$6.43

125

Hex. Flange Screw M6 X 20

207662044

Unavailable

126

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

130

Hex. Flange Elastic Nut M8

233281414

Unavailable

140

Hex. Flange Screw M6 X 20

207662046

Unavailable

150

Elastic Flange Nut M6 X 1.0

233261416

Unavailable

180

Hex. Flange Screw M6 X 16

207661646

Unavailable

230

Hex. Flange Screw M6 X 20

207562056

Unavailable

300

LH Side Member Ass'y | Includes 300 to 300a

518333692

$270.74

300a

Vibration Damper

512061516

$57.66

310

Screw-Pan HD.Torx M8X30

250001060

Unavailable

400

Chassis Suspension Module

518334459

Unavailable

410

Screw-Forming Hex.HD.FL. M6 X 16

250001051

Unavailable

425

Hex. Flange Screw M6 X 20

207562056

Unavailable

430

Elastic Flange Nut M6 X 1.0

233261416

Unavailable

440

Hex. Flange Screw M6 X 16

207661646

Unavailable

900

Catalyst Gray, LH Rear Diag. Crossmember | Includes 900 to 900a This part replaces 518333273.

518332557

$107.66

900a

RH Rear Diagonal Cross Member

518330885

Unavailable

910

Catalyst Gray, RH Rear Diag. Crossmember | Includes 910 to 910a This part replaces 518333274.

518332558

$107.66

920

Pan Head Torx Screw M8 X 12

250000887

$1.56

1100

Upper Colomn Support

518329974

Unavailable

1110

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

Unavailable

1120

Elastic Flange Nut M6 X 1.0

233261416

Unavailable

1130

Hex. Flange Screw M6 X 25

207662556

Unavailable

1140

Hex. Flange Screw M6 X 20

207662046

Unavailable

1300

Rear Short Bumper 146

518331947

$134.99

3040

Dart

293730079

$1.92
