Can-Am F3 - Steel Black Metallic, 2022 Electric - Main Harness - 710008104 Diagram

#

Description
Price

4000

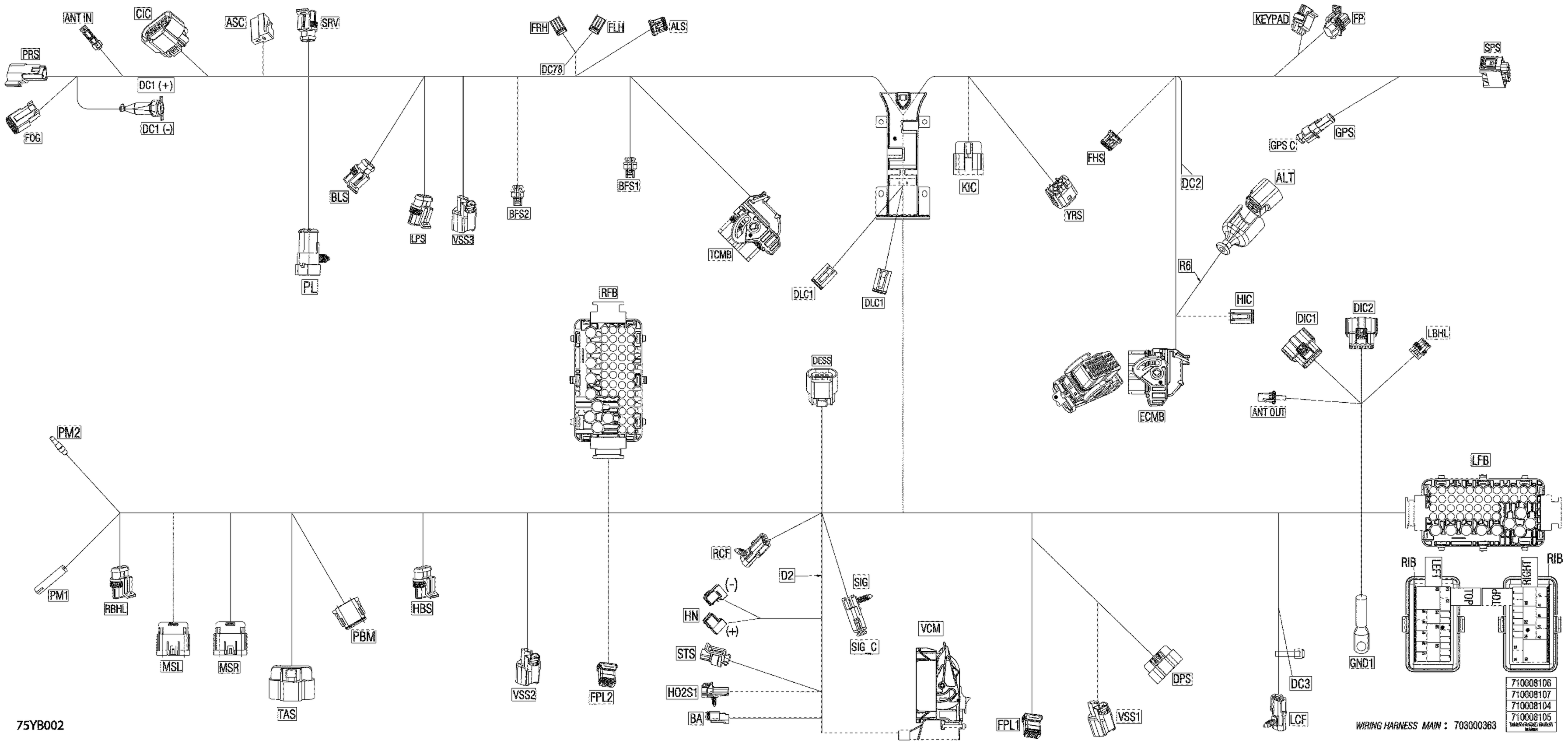

Chassis Wiring Harness

710008104

$889.99

ALS

Female Housing

515177441

$16.39

ALS

Female Terminal

278002857

$0.85

ALT

Housing

710003545

$23.49

ALT

Cap

710000080

$6.28

ALT

Seal Wire

710003546

$6.88

ALT

Female Terminal

710000335

$1.75

ALT

Terminal

710004475

$3.39

BA

Female Terminal Housing, 2 Circuits

515175670

$7.61

BA

Female Lock, 2 Circuits

515175675

$4.28

BA

Female Terminal

278000632

$1.94

BFS1

Female Housing, 2 Circuits

515177192

$7.25

BFS1

Seal

710001233

$2.93

BFS1

Female Terminal

710001164

$6.79

BFS2

Female Housing, 2 Circuits

515177192

$7.25

BFS2

Seal

710001233

$2.93

BFS2

Female Terminal

710001164

$6.79

BLS

Female Housing, 2 Circuits

409209500

$13.07

BLS

Wire Seal

278001013

$3.12

BLS

Female Terminal

278001014

$3.12

CIC

Female Housing, 12 Circuits

710001930

$13.52

CIC

Lock

710001222

$1.93

CIC

Cap

710001225

$8.34

CIC

Seal

710001233

$2.93

CIC

Seal Wire

710001332

$3.12

CIC

Terminal

710001229

$2.93

CIC

Terminal

710001228

$3.12

D2

Diode

409012700

$10.51

DC1 (-)

Female Terminal

409010700

$4.93

DC1 (+)

Female Terminal

409010700

$4.93

DESS

Housing Connector

515177287

$7.24

DESS

Lock

710001222

$1.93

DESS

Seal

710001233

$2.93

DESS

Terminal

710001229

$2.93

DIC1

Connector Molex Mx150 16 Pos

710005979

Unavailable

DIC1

Sealing Cap

278002860

$1.63

DIC1

Female Terminal

515178018

$0.90

DIC1

Female Terminal

515178014

$2.21

DLC1

Female Housing 6 Circuits

710002706

$18.63

DLC1

Lock

710002705

$4.15

DLC1

Plug

710005437

$2.99

DLC1

Female Terminal

710005438

$3.88

DLC1

Female Terminal

710005439

$4.15

DPS

Female Housing

710004989

$7.00

DPS

Lock

710001222

$1.93

DPS

Plug

710002075

$2.84

DPS

Wire Seal

278002186

$5.18

DPS

Seal

710003153

$0.91

DPS

Terminal

710001873

$2.19

DPS

Female Terminal

278002187

$5.79

ECMB

Cover, 48 positions

710001591

$11.54

ECMB

Female Terminal Housing, 48 Circuits

710001588

$45.49

ECMB

Plug

710001592

$2.06

ECMB

Plug

710001593

$2.06

ECMB

Female Terminal

710001589

$2.06

ECMB

Female Terminal

710001590

$1.94

ECMB

Female Terminal

710001727

$2.93

F1L

Little Fuse, 15 Ampere

710000745

$7.78

F1R

Little Fuse, 15 Ampere

710000745

$7.78

F2L

Little Fuse, 10 Amperes

710000744

$8.31

F2R

Little Fuse, 10 Amperes

710000744

$8.31

F3L

Little Fuse, 10 Amperes

710000744

$8.31

F4L

Little Fuse, 20 Amperes

710000746

$7.78

F4R

Little Fuse, 5 Amperes

710000742

$8.31

F5L

Little Fuse, 5 Amperes

710000742

$8.31

F5R

Little Fuse, 25 Ampere

278002389

$4.28

F6L

Little Fuse, 15 Ampere

710000745

$7.78

F6R

Little Fuse, 10 Amperes

710000744

$8.31

F7L

Little Fuse, 10 Amperes

710000744

$8.31

F8L

Little Fuse, 15 Ampere

710000745

$7.78

FHS

Female Housing

515177441

$16.39

FHS

Female Terminal

278002857

$0.85

FLH

Female Housing, 3 Circuits

515175495

$14.90

FLH

Female Terminal

515175231

$4.00

FP

Housing

710001132

$9.31

FP

Lock

710001133

$4.00

FP

Seal

710000643

$4.00

FP

Seal

278001482

$2.93

FP

Female Terminal

278001481

$2.93

FPL1

Female Housing, 3 Circuits

515178538

$16.99

FPL1

Female Terminal

278002857

$0.85

FPL2

Female Housing, 3 Circuits

515178538

$16.99

FPL2

Female Terminal

278002857

$0.85

FRH

Female Housing, 3 Circuits

515175495

$14.90

FRH

Female Terminal

515175231

$4.00

GPS

Male Terminal Housing, 2 Circuits

409209400

$14.52

GPS

Wire Seal

515176621

$6.79

GPS

Male Terminal

515176164

$6.24

GPS_C

Female Housing, 2 Circuits

409209500

$13.07

GPS_C

Plug

409013700

$4.28

HBS

Female Housing, 3 Circuits

409209600

$34.30

HBS

Plug

409013700

$4.28

HBS

Wire Seal

515176621

$6.79

HBS

Female Terminal

710001340

$4.96

HIC

Female Housing 6 Circuits

710002706

$18.63

HIC

Lock

710002705

$4.15

HIC

Plug

710005437

$2.99

HIC

Female Terminal

710005438

$3.88

HIC

Female Terminal

710005439

$4.15

HN

Female Terminal

710002398

$1.67

HN

Female Terminal

710002399

$1.88

HO2S1

Housing

710002466

$2.90

HO2S1

Seal

278001482

$2.93

HO2S1

Gold Terminal

710002597

$2.90

J1L

Fuse, 40 AMP

710001047

$11.80

J1R

Fuse 30 amp.

710001200

$6.69

J2L

Fuse, 25 AMP

710001046

$3.91

J2R

Fuse, 40 AMP

710001047

$11.80

J3L

Fuse, 40 AMP

710001047

$11.80

J3R

Fuse, 20 AMP

710001078

$1.79

J4L

Fuse, 40 AMP

710001047

$11.80

J4R

Fuse 30 amp.

710001200

$6.69

J5R

Fuse, 20 AMP

710001078

$1.79

KIC

Housing

710001231

$11.69

KIC

Seal Wire

710001332

$3.12

KIC

Terminal

710001223

$2.93

LBHL

Female Housing, 3 Circuits

409209600

$34.30

LBHL

Wire Seal

278001013

$3.12

LBHL

Female Terminal

278001014

$3.12

LCF

Female Housing, 2 Circuits

278000217

$8.72

LCF

Wire Seal

710000504

$3.93

LCF

Male Terminal

409004300

$5.30

LFB

Fusebox Ass'y

710005623

$41.76

LFB

Seal Plug

278002880

$6.24

LFB

Cap

710001631

$0.97

LFB

Wire Seal

278001065

$5.85

LFB

Wire Seal

278000218

$4.00

LFB

Terminal Joint

710001905

$2.09

LFB

Seal Joint

710007566

$4.65

LFB

Seal Joint

710003132

$0.81

LFB

Female Terminal

710000918

$5.85

LFB

Female Terminal

278002578

$0.99

LFB

Terminal

710001906

$2.51

LFB

M Terminal

710003135

$2.49

LFB

Terminal

710002438

$1.39

LFB

F Terminal

710003125

$3.01

LFB_C

Cover

710007491

$16.39

LFB_C

Decal Fuse Relay Cover LH

710006323

$38.99

LFB_C

Little Fuse, 5 Amperes

710000742

$8.31

LFB_C

Little Fuse, 10 Amperes

710000744

$8.31

LFB_C

Little Fuse, 15 Ampere

710000745

$7.78

LFB_C

Little Fuse, 20 Amperes

710000746

$7.78

LFB_C

Little Fuse, 25 Ampere

278002389

$4.28

LPS

Female Housing, 3 Circuits

409209600

$34.30

LPS

Plug

409013700

$4.28

LPS

Wire Seal

515176621

$6.79

LPS

Female Terminal

710001340

$4.96

MSL

Housing

710001944

$15.35

MSL

Cap

710001225

$8.34

MSL

Seal Wire

710001332

$3.12

MSL

Seal

710001233

$2.93

MSL

Terminal

710001223

$2.93

MSL

Terminal

710001224

$2.93

MSR

Housing, Packard

710001929

$10.51

MSR

Cap

710001225

$8.34

MSR

Seal

710001233

$2.93

MSR

Terminal

710001224

$2.93

PBM

Female Terminal Housing, 12 Circuits

278002377

$45.49

PBM

Female Lock, 12 Circuits

409015700

$4.28

PBM

Sealing Cap

293000052

$2.93

PBM

Female Terminal

278000632

$1.94

PBM

Female Terminal

278001665

$4.28

PL

Housing

710000568

$10.51

PL

Plug

409013700

$4.28

PL

Wire Seal

515176621

$6.79

PL

Male Terminal

515176164

$6.24

PM1

Insulated Sheath

278001007

$3.12

PM1

Female Terminal

710000421

$5.30

PM2

Insulated Sheath

278001008

$3.10

PM2

Female Terminal

278002261

$6.01

PRS

Male Housing

278002378

$12.52

PRS

Male Lock, 3 Circuits

409207600

$2.93

PRS

Male Terminal

710001348

$10.81

R6

Resistor

515179003

$2.24

RBHL

Female Housing, 3 Circuits

409209600

$34.30

RBHL

Wire Seal

278001013

$3.12

RBHL

Female Terminal

278001014

$3.12

RCF

Female Housing, 2 Circuits

278000217

$8.72

RCF

Wire Seal

710000504

$3.93

RCF

Male Terminal

409004300

$5.30

RFB

Fusebox Ass'y

710005623

$41.76

RFB

Seal Plug

278002880

$6.24

RFB

Cap

710001631

$0.97

RFB

Wire Seal

278001065

$5.85

RFB

Wire Seal

278000218

$4.00

RFB

Terminal Joint

710001905

$2.09

RFB

Seal Joint

710007566

$4.65

RFB

Seal Joint

710003132

$0.81

RFB

Female Terminal

710000890

$4.28

RFB

Female Terminal

710000918

$5.85

RFB

Female Terminal

278002578

$0.99

RFB

Terminal

710001906

$2.51

RFB

M Terminal

710003135

$2.49

RFB

Terminal

710002438

$1.39

RFB

F Terminal

710003125

$3.01

RFB_C

Cover

710007491

$16.39

RFB_C

Decal Fuse Relay Cover RH

710006324

$38.99

RFB_C

Little Fuse, 10 Amperes

710000744

$8.31

RFB_C

Little Fuse, 15 Ampere

710000745

$7.78

RFB_C

Little Fuse, 20 Amperes

710000746

$7.78

RFB_C

Little Fuse, 5 Amperes

710000742

$8.31

RFB_C

Little Fuse, 25 Ampere

278002389

$4.28

RY1L

Relay

715900824

$18.63

RY1R

Relay

715900824

$18.63

RY2L

Relay

715900824

$18.63

RY2R

Relay

715900824

$18.63

RY3L

50 Amps Relay

710003143

$12.64

RY3R

50 Amps Relay

710003143

$12.64

RY4L

Relay

715900824

$18.63

RY4R

Relay

715900824

$18.63

RY5L

Relay, 30 AMP

515176774

$18.63

RY6R

Relay, 30 AMP

515176774

$18.63

SIG

Housing PT

710001151

$5.72

SIG

Lock

710001152

$4.00

SIG

Seal Wire

710001153

$2.06

SIG

Male Terminal

710001154

Unavailable

SIG_C

Female Housing, 2 Circuits

515177192

$7.25

SIG_C

Plug

515177374

$1.94

STS

Female Housing, 2 Circuits

515177192

$7.25

STS

Wire Seal

710001163

$5.85

STS

Female Terminal

710001164

$6.79

TAS

Housing

710001232

$13.39

TAS

Lock

710001222

$1.93

TAS

Seal

710001233

$2.93

TAS

Terminal

710001229

$2.93

TCMB

Cover, 48 positions

710001591

$11.54

TCMB

Housing

710003669

$35.99

TCMB

Plug

710001592

$2.06

TCMB

Plug

710001593

$2.06

TCMB

Female Terminal

710001589

$2.06

TCMB

Female Terminal

710001727

$2.93

VCM

RH Connector Cover

710002772

$4.19

VCM

Module Protector VCM

710002381

$20.99

VCM

Housing

710002768

$16.39

VCM

Plug

710001258

$3.29

VCM

Wire Seal

278000999

$2.93

VCM

Wire Seal

710001159

$5.90

VCM

Wire Seal

710006230

$1.49

VCM

Female Terminal

710000837

$4.96

VCM

Terminal

710002773

$2.09

VCM

Terminal

710002775

$0.74

VSS1

Connector 2 Pins

710005669

$2.24

VSS1

Seal

710005689

$2.09

VSS1

Female Terminal 18-20 AWG

515178348

$1.57

VSS2

Connector 2 Pins

710005669

$2.24

VSS2

Seal

710005689

$2.09

VSS2

Female Terminal 18-20 AWG

515178348

$1.57

VSS3

Connector 2 Pins

710005669

$2.24

VSS3

Seal

710005689

$2.09

VSS3

Female Terminal 18-20 AWG

515178348

$1.57

YRS

Housing

710003730

$13.75

YRS

Wire Seal

710006230

$1.49

YRS

Female Terminal

710004243

$0.98
