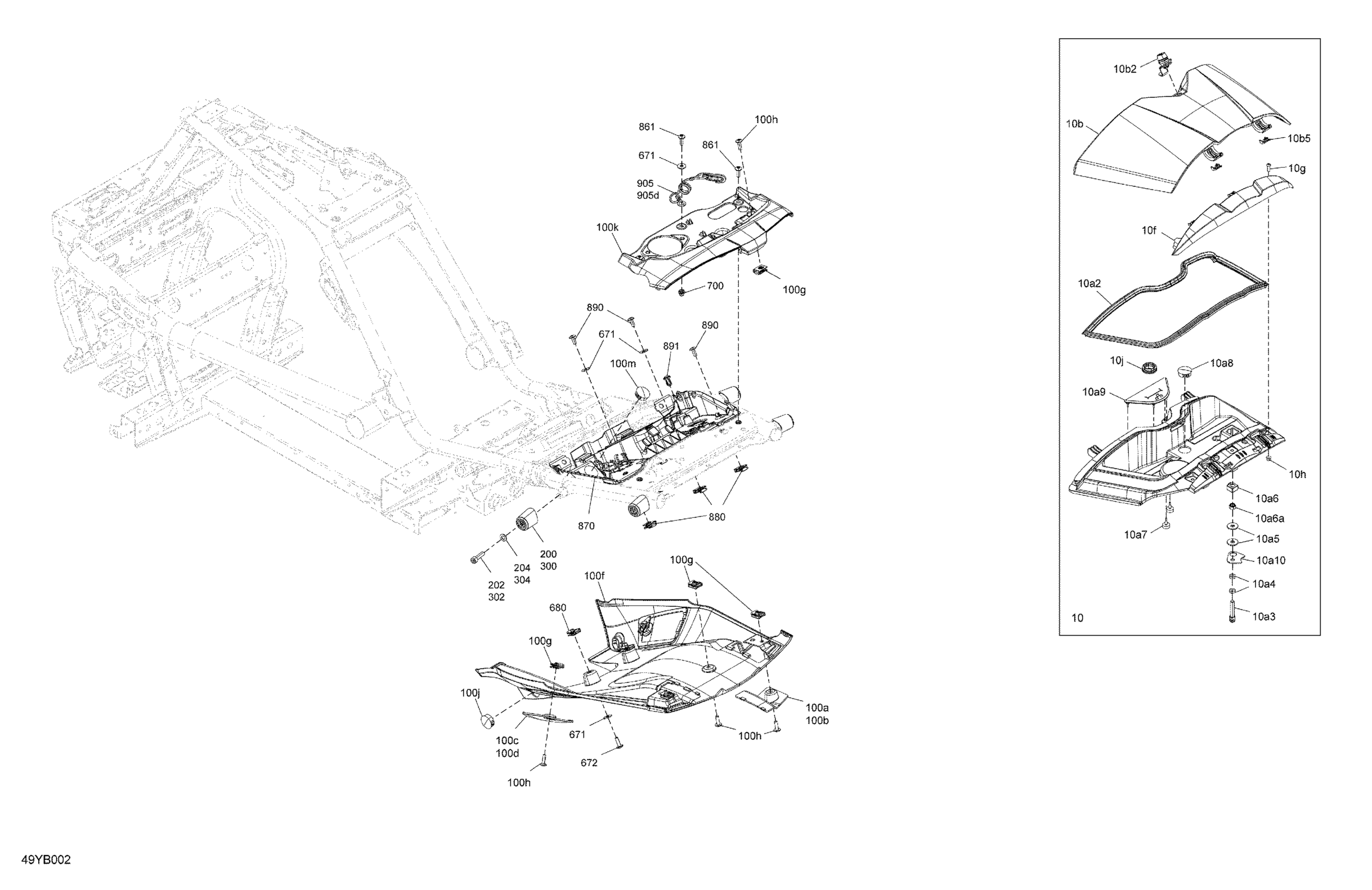

Can-Am F3 - Steel Black Metallic, 2022 Body - Cargo Diagram

#

Description
Price

10

Steel Black, Mono Seat Cowl Kit | Included 10 to 10j

219400494

$450.00

10a2

EXTRUSION - Call your local BRP dealership

293250336

Unavailable

10a3

LUG - Call your local BRP dealership

708001990

Unavailable

10a4

Hex. Jam Nut M8

232180600

Unavailable

10a5

Flat Washer 8 mm

234082410

Unavailable

10a6

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

Unavailable

10a6a

Hex. Elastic Nut M8 Brass

232581200

Unavailable

10a7

Rubber Stopper

708000759

Unavailable

10a8

Black, Nylon Cap

414916600

Unavailable

10a9

Backrest Trim

708301604

$9.00

10a10

Washer

708001909

$10.00

10b

Steel Black, Cover Trunk | Included 10b to 10b5

708301417

$280.00

10b2

Lock Kit

219800407

$58.00

10b5

Opening Limiter

708301727

$3.00

10f

Trim

708301416

$12.00

10g

Torx Truss Screw M5 X 16, T25

250000578

Unavailable

10h

Flange Elastic Nut M5

233251434

Unavailable

10j

Grommet Boot

710002926

Unavailable

100a

LH Rear Cap

708301449

$15.00

100b

RH Rear Cap

708301450

$15.00

100c

LH Front Cap

708301513

$17.00

100d

RH Front Cap

708301514

$17.00

100f

Under Tail Cover

708001415

$55.00

100g

Panel Nut M6 X 1.0

250100208

Unavailable

100h

Torx Screw M6 X 20, Scotch Grip

250000446

Unavailable

100j

Black, Nylon Cap

414916600

Unavailable

100k

Taillight Support

708002814

$27.00

100m

Black, Nylon Cap

414916600

Unavailable

200

Frame Protector

708301525

$5.00

202

Socket Head Screw M8 X 30, Scotch Grip

250000823

$3.00

204

Stainless Steel Flat Washer 8 mm

234081670

Unavailable

300

Frame Protector

708301525

$5.00

302

Socket Head Screw M8 X 30, Scotch Grip

250000823

$3.00

304

Stainless Steel Flat Washer 8 mm

234081670

Unavailable

671

Stainless Steel Flat Washer

234062670

Unavailable

672

Torx Screw M6 X 20, Scotch Grip

250000446

Unavailable

680

Panel Nut M6 X 1.0

250100208

Unavailable

700

Insert Half Hex Body M6 x 1.0

250100199

Unavailable

861

Torx Screw M6 X 20

250000722

Unavailable

870

Cargo Rear Support

708301698

$90.00

880

Panel Nut M6 X 1.0

250100208

Unavailable

890

Torx Truss M8 X 16

250000881

Unavailable

891

Tuflok Plastic Rivet

293150230

Unavailable

905

Lanyard | Included 905 to 905d

708002532

$23.00

905d

Cord Decal

704905127

Unavailable
