Description

Price

1

Cylinder

S1210SRCA000

$374.58

2

Not Available As Spare Parts

NASP/NDPR

Unavailable

3

Cylinder Gasket

S12191HMA004

$7.60

4

Cam Chain Tensioner

S14510HMA000

$46.12

5

Tensioner Lifter

S14520H6T000

$106.12

6

Adjuster Bolt

S14522H6T000

$1.37

7

Tensioner Lifter Gasket

S14523M9Q000

$3.98

8

O-ring

S14524H6T000

$0.74

9

Adjuster Spring

S14525H6T000

$3.98

10

CAM CHAIN TENSIONNER PIVOT - Call your local BRP dealership

S14531KJ9000

$5.35

11

Cam Chain Guide

S14610HMA000

$36.89

12

Hex. Flange Screw

S90001M9Q000

$0.68

13

Dowel Pin

S9430112200

$0.91

14

Cylinder Head Gasket

S12251HMA000

$27.66

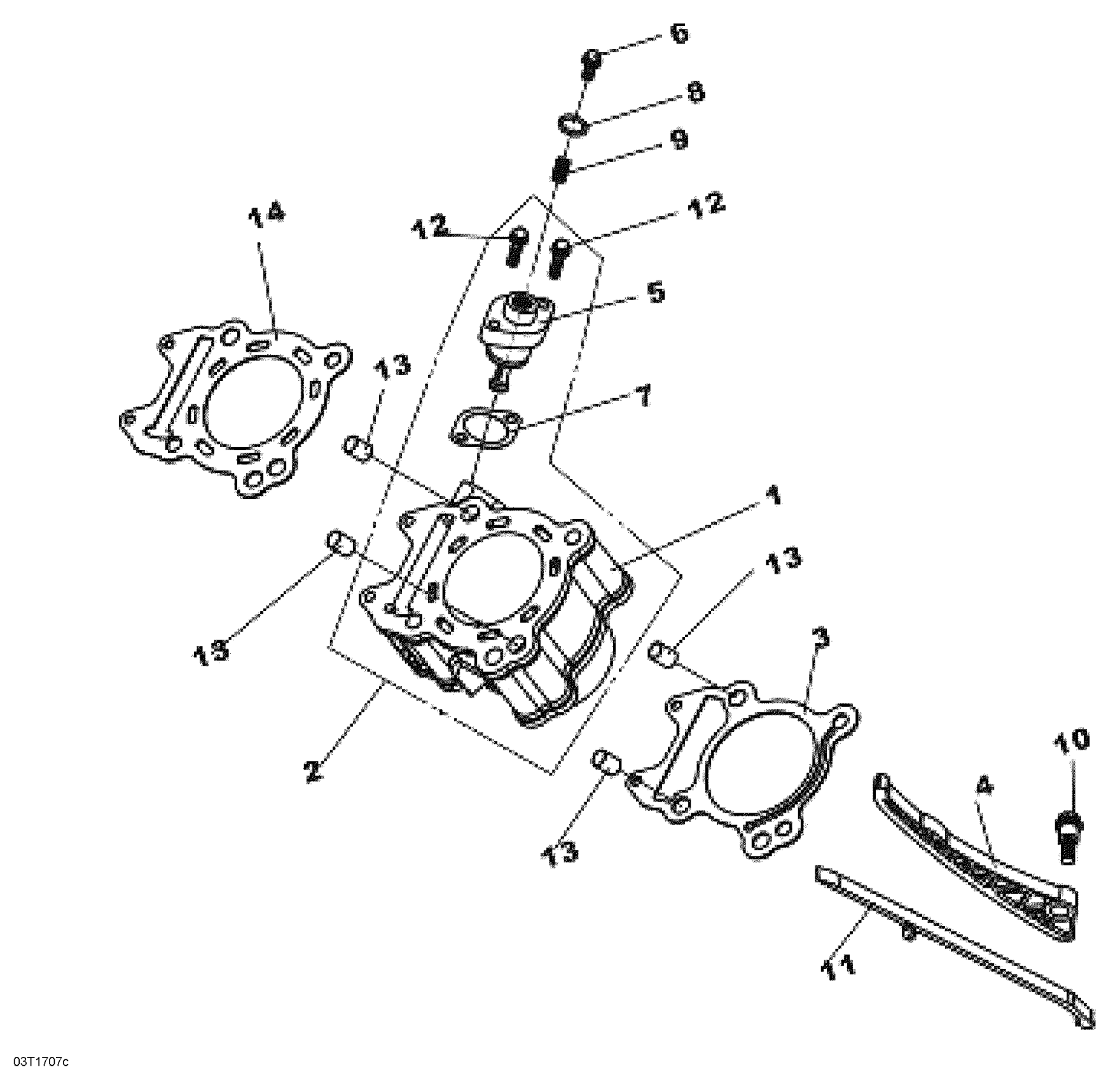

Can-Am DS 250, 2026 Cylinder Diagram

Not Available As Spare Parts
