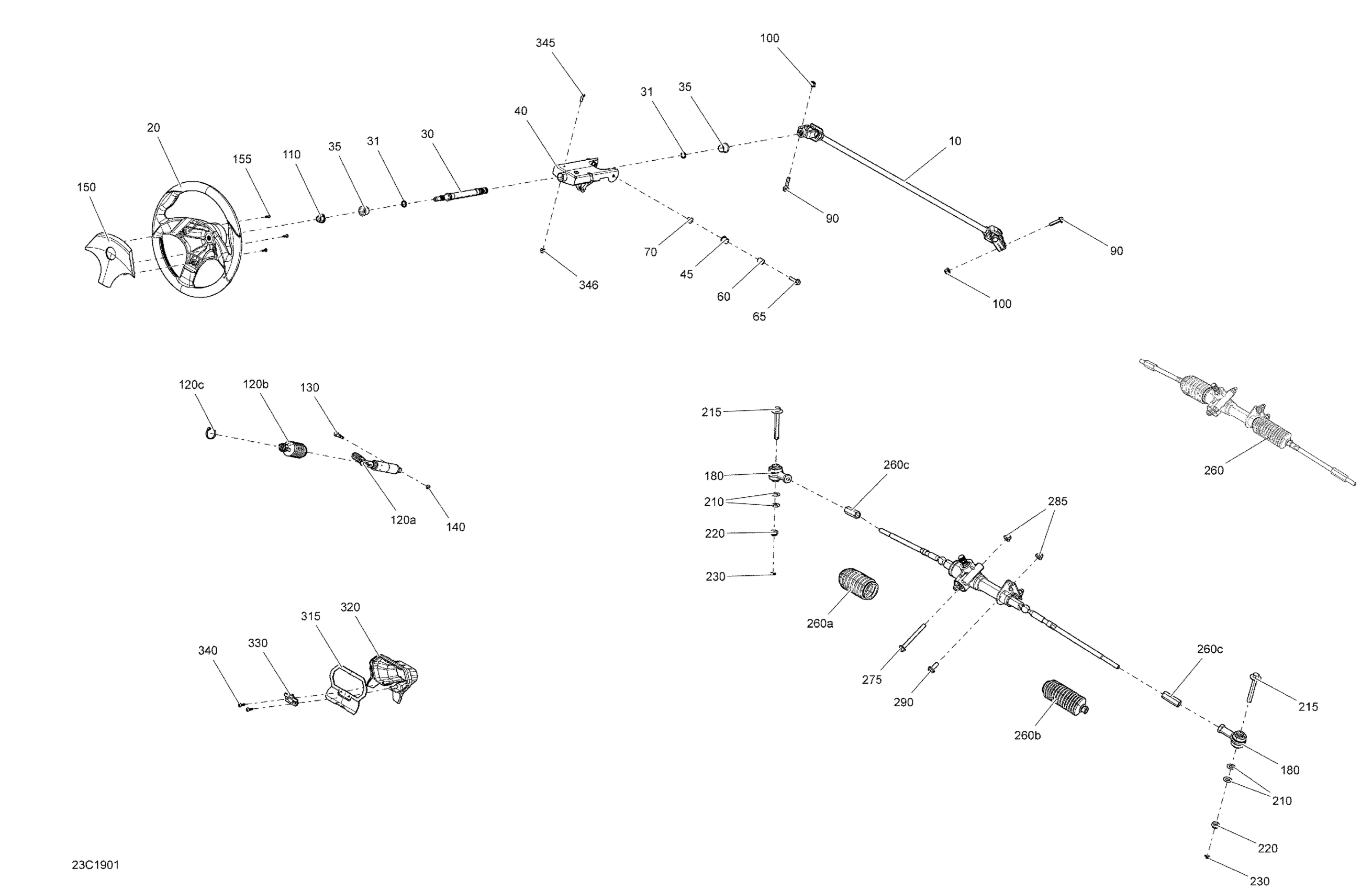

Can-Am Commander 800R EFI - 2019 Steering - STD Diagram

#

Description
Price

10

Steering Shaft Ass'y | Package-STD

709401498

Unavailable

20

Steering Wheel | STD

709400650

Unavailable

30

Steering Shaft

709401167

Unavailable

31

O-Ring

293300144

Unavailable

35

Steering Bushing

709402725

Unavailable

40

Painted Steering Wheel Support

709401391

Unavailable

45

Bushing

705600799

$3.72

60

Bushing

293900106

Unavailable

65

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

Unavailable

70

Hex. Flange Elastic Nut M8

233281414

Unavailable

90

Hex. Flange Screw M8 X 35

250001021

$3.61

100

Hex. Elastic Flange Nut M8

233281416

Unavailable

110

Hex. Flange Elastic Nut M12

233221414

Unavailable

120a

Adjustment Cylinder

709402506

$69.20

120b

Boot Tube Side

709401232

Unavailable

120c

Tie-Rap 180 mm

414115200

$0.09

130

Socket Head Screw M8 X 16

250000669

Unavailable

140

Elastic Stop Nut M6

232561414

Unavailable

150

Steering Center | STD

709400780

Unavailable

155

Phillips Screw K40 X 16

250000723

Unavailable

180

Ball Joint

709401134

Unavailable

210

Hardened Washer

706200281

Unavailable

215

Hexagonal Screw M12 X 88

250001029

$5.19

220

Elastic Stop Nut M12

232521416

Unavailable

230

Cotter Pin

211400017

Unavailable

260

Rack And Pinion Steering

709402387

$470.74

260a

Boot Kit, Pinion Side

715900235

$55.35

260b

Boot Kit, Tube Side

715900236

$55.35

260c

Nut Tie Rod End

715900237

$13.83

275

Hex Flange Screw DIN.6921 - Call your local BRP dealership

230600046

Unavailable

285

Hex. Flange Elastic Nut M10

233201436

Unavailable

290

Hex. Flange Screw M10 X 25

207602546

Unavailable

315

Cluster Support | STD

709400760

Unavailable

320

Speedometer Cover

709400514

Unavailable

330

Latch Indicator Cover

709400573

Unavailable

340

Torx Screw Truss Head K50X20 T20

250000760

Unavailable

345

Torx Screw M6 X 20

250000722

Unavailable

346

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable
