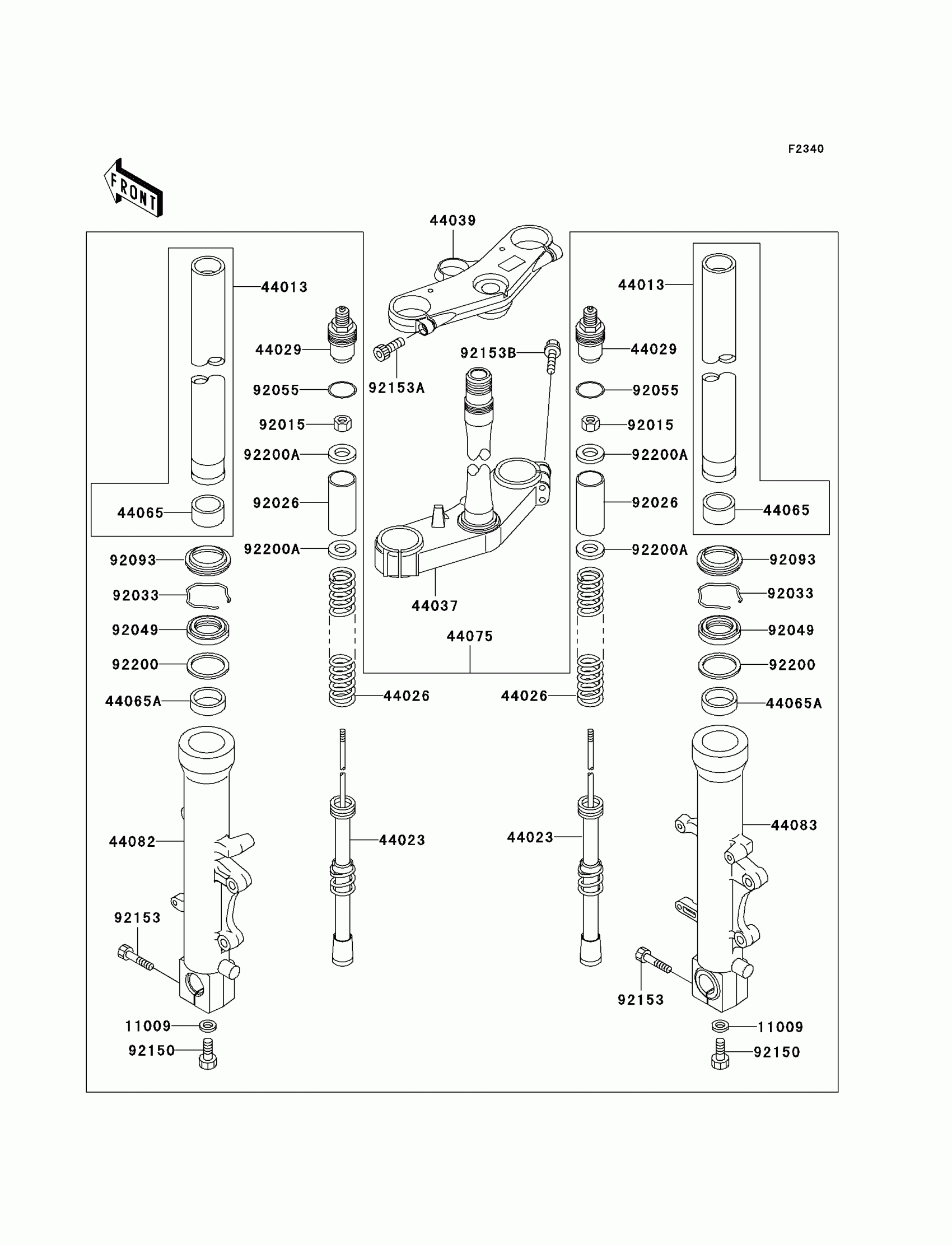

Kawasaki ZZR600 Front Fork(J6F) Diagram
#
Description
Price
11009
GASKET,FORK CYLINDER BOLT
11009-1127
$5.18
44013
PIPE-FORK INNER
44013-1473
$411.32
44023
CYLINDER-SET-FORK
44023-1149
$457.54
44026
SPRING-FRONT FORK
44026-1765
$73.31
44029
SEAT-FORK SPRING
44029-1173
$130.79
44037
HOLDER-FORK UNDER
44037-1438
$390.14
44039
HOLDER-FORK UPPER
44039-1329
$290.39
44065
BUSHING-FRONT FORK
44065-1129
$20.71
44065A
BUSHING-FRONT FORK
44065-1130
$20.71
44075
DAMPER-SET-FORK
44075-1174
$1,786.44
44082
PIPE-COMP-LEFT FORK OUT
44082-1069
$449.59
44083
PIPE-COMP-RIGHT FORK OUT
44083-1066
$449.59
92015
NUT
92015-1905
$19.64
92026
SPACER,FORK,L=125
92026-1578
$22.32
92033
RING-SNAP
92033-1264
$6.10
92049
SEAL-OIL
92049-1508
$23.00
92055
RING-O
92055-1140
$1.03
92093
SEAL,FORK OUTER TUBE
92093-1473
$22.27
92150
BOLT,12X22
92150-1398
$9.21
92153
BOLT,SOCKET,8X40
92153-1178
$9.39
92153A
BOLT,SOCKET,8X25
92153-1179
$9.39
92153B
BOLT,FLANGED,8X40
92153-1193
$7.21
92200
WASHER
92200-1006
$11.91
92200A
WASHER
92200-1420
$9.31
