Description

Price

11009

GASKET,FORK CYLINDER BOLT

11009-1127

$5.18

44013

PIPE-FORK INNER

44013-1473

$411.32

44023

CYLINDER-SET-FORK

44023-1149

$457.54

44026

SPRING-FRONT FORK

44026-1765

$73.31

44029

SEAT-FORK SPRING

44029-1173

$130.79

44037

HOLDER-FORK UNDER

44037-1438

$390.14

44039

HOLDER-FORK UPPER

44039-1329

$290.39

44065

BUSHING-FRONT FORK

44065-1129

$20.71

44065A

BUSHING-FRONT FORK

44065-1130

$20.71

44075

DAMPER-SET-FORK

44075-1174

$1,786.44

44082

PIPE-COMP-LEFT FORK OUT

44082-1069

$449.59

44083

PIPE-COMP-RIGHT FORK OUT

44083-1066

$449.59

92015

NUT

92015-1905

$19.64

92026

SPACER,FORK,L=125

92026-1578

$22.32

92033

RING-SNAP

92033-1264

$6.10

92049

SEAL-OIL

92049-1508

$23.00

92055

RING-O

92055-1140

$1.03

92093

SEAL,FORK OUTER TUBE

92093-1473

$22.27

92150

BOLT,12X22

92150-1398

$9.21

92153

BOLT,SOCKET,8X40

92153-1178

$9.39

92153A

BOLT,SOCKET,8X25

92153-1179

$9.39

92153B

BOLT,FLANGED,8X40

92153-1193

$7.21

92200

WASHER

92200-1006

$11.91

92200A

WASHER

92200-1420

$9.31

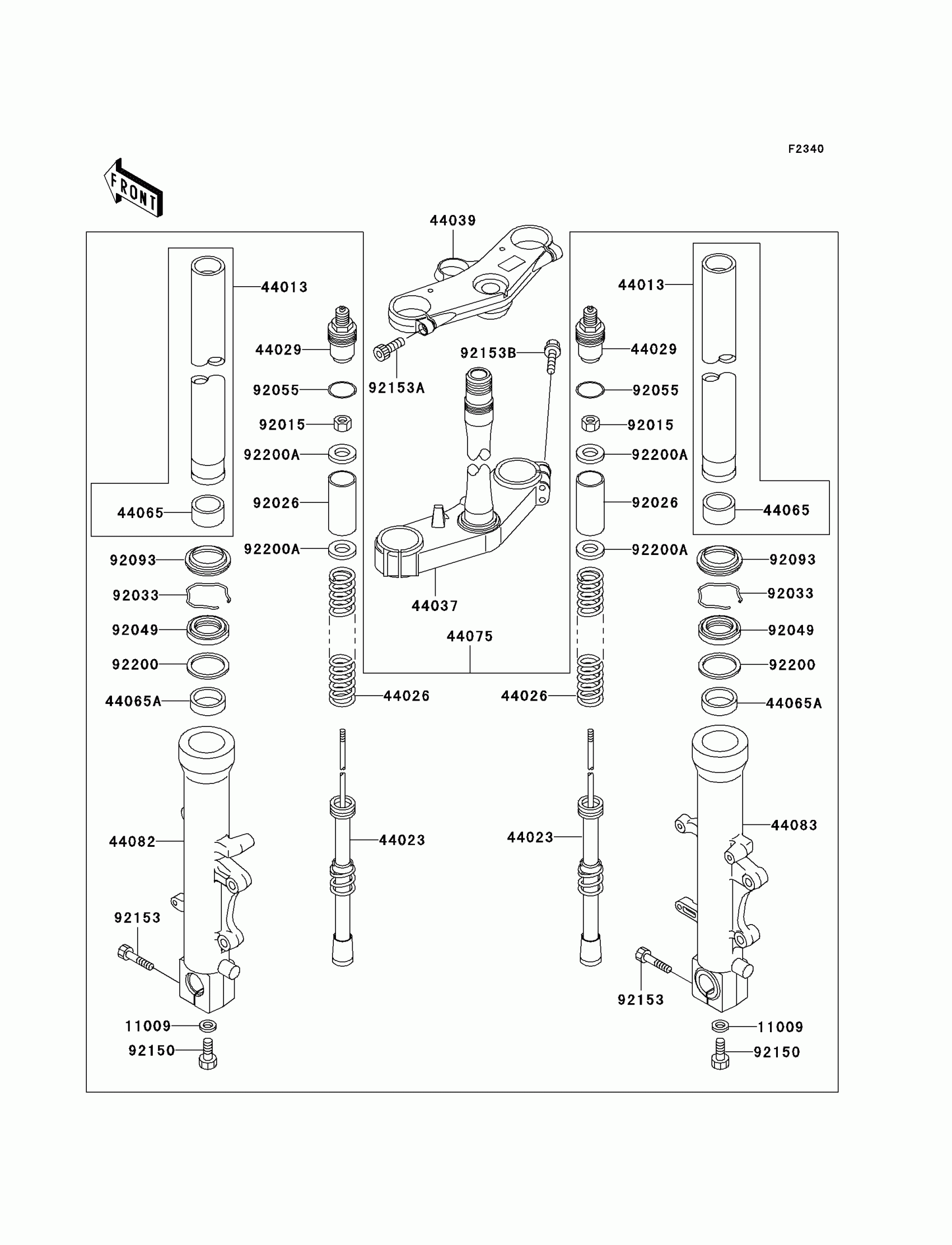

Kawasaki ZZR600 Front Fork Diagram

GASKET,FORK CYLINDER BOLT

PIPE-FORK INNER

CYLINDER-SET-FORK

SPRING-FRONT FORK

SEAT-FORK SPRING

HOLDER-FORK UNDER

HOLDER-FORK UPPER

BUSHING-FRONT FORK

BUSHING-FRONT FORK

DAMPER-SET-FORK

PIPE-COMP-LEFT FORK OUT

PIPE-COMP-RIGHT FORK OUT

NUT

SPACER,FORK,L=125

RING-SNAP

SEAL-OIL

RING-O

SEAL,FORK OUTER TUBE

BOLT,12X22

BOLT,SOCKET,8X40

BOLT,SOCKET,8X25

BOLT,FLANGED,8X40

WASHER

WASHER
