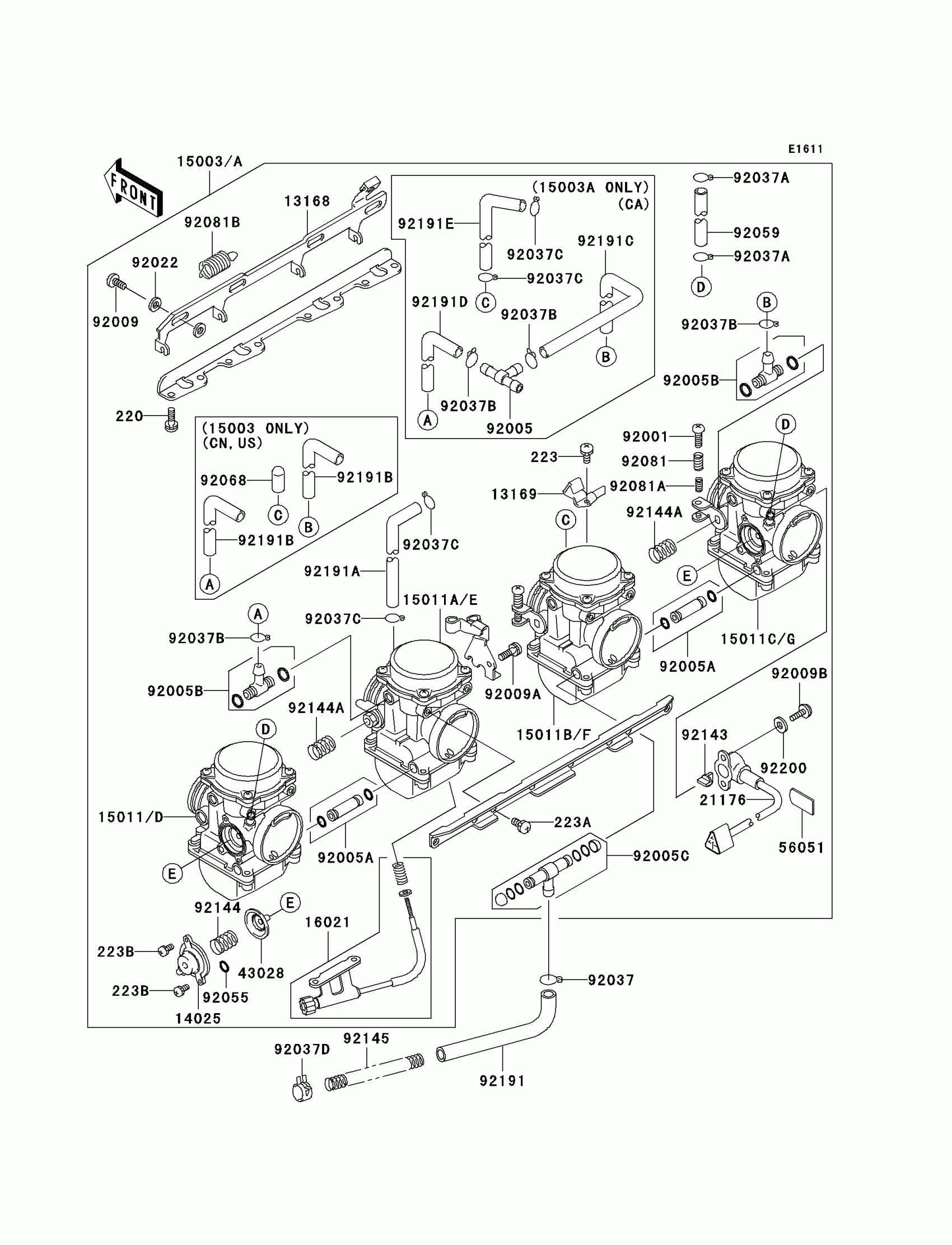

Kawasaki ZRX1200R Carburetor Diagram
#
13168
LEVER,STARTER
13168-1245
$123.33
13169
PLATE,STARTER CABLE
13169-1871
$27.35
14025
COVER,AIR CUT VALVE
14025-1903
$58.45
16021
SCREW-THROTTLE STOP
16021-1204
$108.77
21176
SENSOR,THROTTLE
21176-1073
$490.70
43028
DIAPHRAGM,4.9MM,AIR CUT VALVE
43028-1084
Unavailable
56051
MARK,K-TRIC
56051-1480
$20.70
92001
BOLT,THROTTLE ADJUST
92001-1998
$16.94
92005A
FITTING
92005-1310
$33.74
92005B
FITTING
92005-1314
$40.52
92005C
FITTING,FUEL
92005-1392
$27.78
92009
SCREW
92009-1262
$6.61
92009A
SCREW,5X10
92009-1365
$7.34
92009B
SCREW
92009-1781
$2.76
92022
WASHER,6.1X11X0.8,POLYACETAL
92022-1199
$4.60
92037
CLAMP-HOSE
92037-1104
$1.45
92037A
CLAMP,TUBE
92037-1142
$4.31
220
SCREW-PAN-CROS,6X16
220B0616
$2.84
223
SCREW-PAN-WS-CROS,4X20
223C0420
$4.30
223A
SCREW-PAN-WS-CROS,5X10
223C0510
$4.12
223B
SCREW-PAN-WS-CROS,4X8
223D0408
$1.28
92037D
CLAMP
92037-2082
$1.45
92055
RING-O
92055-1245
$5.57
92059
TUBE,3.5X6.5X180
92059-1140
$23.25
92081
SPRING
92081-1620
$4.96
92081A
SPRING,THROTTLE ADJUST LWR
92081-1621
$5.18
92081B
SPRING,STARTER LEVER
92081-1762
$24.32
92143
COLLAR
92143-1907
$9.50
92144
SPRING
92144-1885
Unavailable
92144A
SPRING,THROTTLE ADJUST CNT
92144-1986
$6.87
92145
SPRING,FUEL TUBE
92145-1420
$8.02
92191
TUBE,FUEL
92191-1007
$13.32
92191A
TUBE
92191-1017
$11.40
92200
WASHER
92200-1369
$4.62
15003
CARBURETOR-ASSY
15003-1636
$2,103.53
15003A
CARBURETOR-ASSY
15003-1638
$2,270.03
15011
CARBURETOR,LH,OUTSIDE
15011-1879
Unavailable
15011A
CARBURETOR,LH,INSIDE
15011-1880
$700.90
15011B
CARBURETOR,RH,INSIDE
15011-1881
$700.90
15011C
CARBURETOR,RH,OUTSIDE
15011-1882
$791.98
15011D
CARBURETOR,LH,OUTSIDE
15011-1883
$700.90
15011E
CARBURETOR,LH,INSIDE
15011-1884
$700.90
15011F
CARBURETOR,RH,INSIDE
15011-1885
$700.90
15011G
CARBURETOR,RH,OUTSIDE
15011-1886
$700.90
92005
FITTING,T-TYPE
92005-1119
$24.61
92037B
CLAMP,TUBE
92037-1185
$6.15
92037B
CLAMP,TUBE
92037-1185
$6.15
92037C
CLAMP,TUBE
92037-1201
$4.60
92037C
CLAMP,TUBE
92037-1201
$4.60
92068
PLUG,12X25
92068-006
$4.26
92191B
TUBE,AIR VENT
92191-1118
$38.08
92191C
TUBE,7X11X187
92191-1680
$16.32
92191D
TUBE,7X11X54
92191-1681
$4.26
92191E
TUBE,4.5X8X110
92191-1682
$14.32
